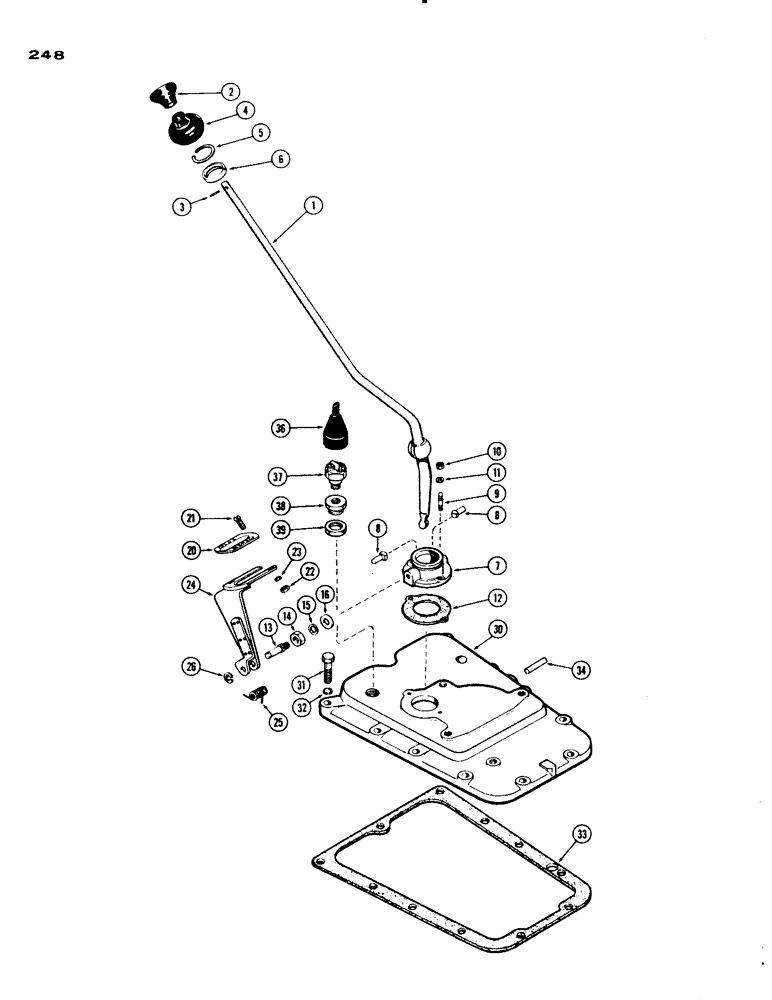

Запчасти Case IH 830-SERIES (248) - GEAR SHIFT, USED PRIOR TO TRAC. S/N 8173401 (06) - POWER TRAIN

1

A20994

LEVER - gear shift

1шт.

2

A21180

BALL

- shift lever

1шт.

3

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

4

A26956

DUST CAP

CAP - rubber, dust cover

1шт.

5

A26836

RING, SNAP

RING - snap, seat retainer

1шт.

6

A7923

SEAT

- upper, shift lever

1шт.

7

A7596

SOCKET

- hand lever

1шт.

8

A26835

PIN

- pivot, gear shift lever

2шт.

9

A7597

STUD - lever socket

2шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

A7598

GASKET

- lever socket

1шт.

13

A7957

STUD - shift indicator

1шт.

14

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

A22317

WASHER

- copper, stud (25/64 x 11/16 x 3/64")

1шт.

20

A8315

PLATE

- indicator, shift pattern

1шт.

21

175-401

SCREW,Sl Truss Hd, #10 - 24 x 3/8"

- #10-24 x 3/8" truss hd. mach.

2шт.

22

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

23

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - lock, #10 ext.-int. Shakeproof

2шт.

24

A8314

SUPPORT - shift indicator

1шт.

25

A7962

SPRING - torsion, shift indicator

1шт.

26

A27795

RING

"E" RING - pivot stud

1шт.

30

A20963

COVER - shift forks & shafts

1шт.

31

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

11шт.

32

92-8

LOCK WASHER,1/2"

11шт.

33

A7594

GASKET

- cover

1шт.

34

A7599

PIN - stop, clutch pedal

1шт.

36

A20991

BOOT

- neutral start switch

1шт.

37

A20990

SWITCH

- safety, neutral start

1шт.

38

A20988

NUT - adjusting, switch

1шт.

39

A20989

LOCK NUT

NUT - lock, adjustment

1шт.
