Запчасти Case IH 830-SERIES (242) - FRONT END WEIGHTS (05) - STEERING

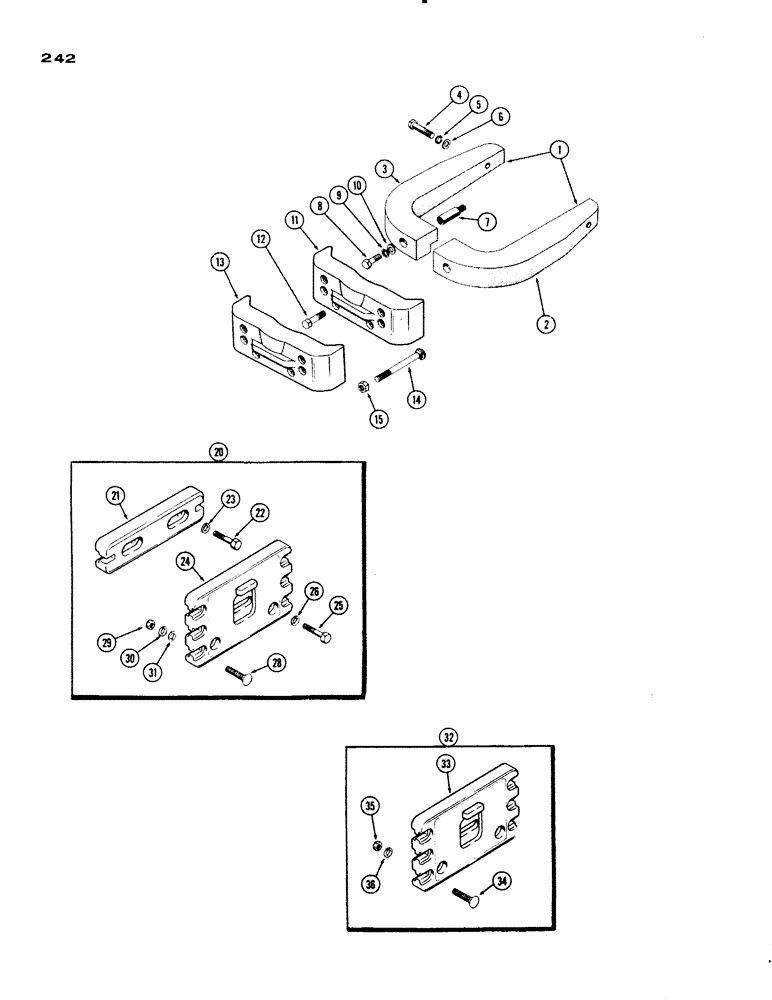

Схема запчастей Case IH 830-SERIES - (242) - FRONT END WEIGHTS (05) - STEERING
20
35
34
11
33
1
30
25
3
32
22
5
12
26
13
2
4
7
8
6
29
36
28
23
10
9
21
15
31
14
24

Артикул

Название

Примечание

Количество

1

A23090

WEIGHT ATT. - front end (Mach. Item) (incl. ref. 2 - 10)

1шт.

2

NSS

NOT SOLD SEPARAT

WEIGHT - R.H. (Order A23090)

1шт.

3

NSS

NOT SOLD SEPARAT

WEIGHT - L.H. (Order A23090)

1шт.

4

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

195-45

WASHER,3/4"

2шт.

7

A23075

STUD - mounting, weight

2шт.

8

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

A23091

WEIGHT ATT. - 1st added (Mach. Item) (incl. ref. 12)

1шт.

12

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- 5/8" x 4-1/2" N.C. hex

2шт.

13

A20340

WEIGHT ATT. - 2nd added (Mach Item) (incl. ref. 14 & 15)

1шт.

14

433-10112

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 7", Gr 5

BOLT - 5/8 x 7" rd. hd. sq. nk.

2шт.

15

25-1010

NUT,5/8"-11, G5

2шт.

20

A33259

WEIGHT ATT. - front end (Mach. Item), (incl. ref. 21 - 31), Start Serial: 8250414

1шт.

21

NSS

NOT SOLD SEPARAT

WEIGHT - starter (Order A33260), front end, Start Serial: 8250414

1шт.

22

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Front end weights Hex, 5/8"-11 x 2 1/4", G5, Start Serial: 8250414

2шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Front end weights 5/8", Start Serial: 8250414

2шт.

24

NSS

NOT SOLD SEPARAT

WEIGHT - (Order A33259), front end, Start Serial: 8250414

1шт.

25

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Front end weights Hex, 3/4"-10 x 4 1/2", G5, Start Serial: 8250414

2шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Front end weights 3/4", Start Serial: 8250414

4шт.

28

B90584

BOLT

- 3/4 x 4" N.C. rd. hd. sq. nk., front end weights, Start Serial: 8250414

2шт.

29

25-1012

NUT,3/4"-10, G5

Front end weights 3/4"-10, G5, Start Serial: 8250414

2шт.

30

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Front end weights 3/4", Start Serial: 8250414

2шт.

31

A34920

WASHER

- (25/32 x 1-3/4 x 7/32"), front end weights, Start Serial: 8250414

2шт.

32

A33260

WEIGHT ATT. - added (Mach. Item), front end (incl. ref. 33 - 36), Start Serial: 8250414

1шт.

33

NSS

NOT SOLD SEPARAT

WEIGHT - added (Order A33260), front end, Start Serial: 8250414

1шт.

34

B90584

BOLT

- 3/4 x 4" N.C. rd. hd. sq. nk., front end weights, Start Serial: 8250414

2шт.

35

25-1012

NUT,3/4"-10, G5

Front end weights 3/4"-10, G5, Start Serial: 8250414

2шт.

36

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Front end weights 3/4", Start Serial: 8250414

2шт.

Выбрано товаров: 31
