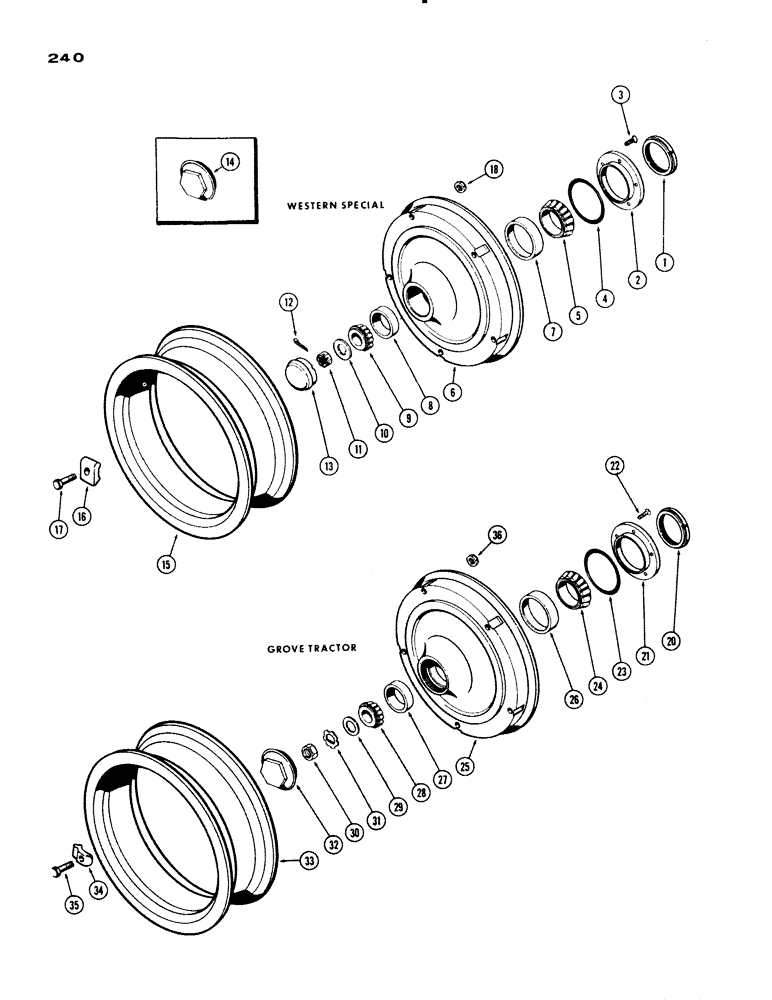

Запчасти Case IH 830-SERIES (240) - FRONT WHEELS, WESTERN SPECIAL, AND MODEL 730 GROVE (05) - STEERING

1

A27139

SEAL

- oil (2-15/32 x 3-7/32 x 7/16")

2шт.

2

A27140

RETAINER

- oil seal

2шт.

3

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- retainer, 1/4 x 5/8" N.C. flat hd.

10шт.

4

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - retainer (3-1/4 x 3-1/2 x 1/8")

2шт.

5

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner

2шт.

6

A11427

WHEEL

ASSY. - (w/tapped hub) can use A33351 - A29425 cap (incl. ref. 7 & 8)

2шт.

6

A33351

WHEEL

ASSY. - (w/plain hub) (incl. ref. 7 & 8)

2шт.

7

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner

1шт.

8

A27631

CUP

- bearing, outer

1шт.

9

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer

2шт.

10

A26789

BEARING WASHER

WASHER - bearing retainer

2шт.

11

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - slotted, 1-1/8" N.F. hex

2шт.

12

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

13

A29425

CAP

- hub (push on type)

1шт.

14

A26011

CAP

- hub (screw on type)

1шт.

15

A27257

RIM

- (for 7.50 x 18 tire)

2шт.

16

A27228

CLAMP

- rim

10шт.

17

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- clamp, 1/2 x 3-1/2" N.F. hex

10шт.

18

25-178

NUT,1/2"-20, G5, Hvy

- 1/2" N.F. hex (heavy)

10шт.

20

A27139

SEAL

- oil (2-15/32 x 3-7/32 x 7/16"), 730 Grove

2шт.

21

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

RETAINER - oil seal, 730 Grove

2шт.

22

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- retainer, 1/4 x 5/8" N.C., flat hd., 730 Grove

10шт.

23

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - retainer, 730 Grove

2шт.

24

A26545

ROLLER BEARING,45mm ID x 21.69mm W

CONE - bearing, inner, 730 Grove

2шт.

25

A28356

WHEEL ASSY, 730 Grove (incl. ref. 26 & 27)

2шт.

26

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - bearing, inner, 730 Grove

1шт.

27

A26535

BEARING CUP,2.717" OD x 0.625"

CUP - bearing, outer, 730 Grove

1шт.

28

A26536

ROLLER BEARING,31.75mm ID x 19.58mm W

CONE - bearing, outer, 730 Grove

2шт.

29

A26681

BEARING WASHER

WASHER - bearing retainer, 730 Grove

2шт.

30

25-1516

NUT,Jam, 1"-14, G5

- jam, 1" N.F. hex, 730 Grove

2шт.

31

A26542

LOCK WASHER

- lock, spindle nut, 730 Grove

2шт.

32

A26011

CAP

- hub (screw on type), 730 Grove

2шт.

33

A27214

RIM

- (for 6.00 x 16 or 7.50 x 16 tire), 730 Grove

2шт.

34

A27226

CLAMP

- rim to wheel, 730 Grove

8шт.

35

14-852

BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5

- 1/2 x 3-1/4" N.F. hex, 730 Grove

8шт.

36

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex, 730 Grove

8шт.
