Запчасти Case IH 830-SERIES (012) - RADIATOR, STANDARD CLUTCH DRIVE, RADIATOR AND OIL COOLER TUBES CASE-O-MATIC DRIVE, RADIATOR SHUTTERS (02) - ENGINE

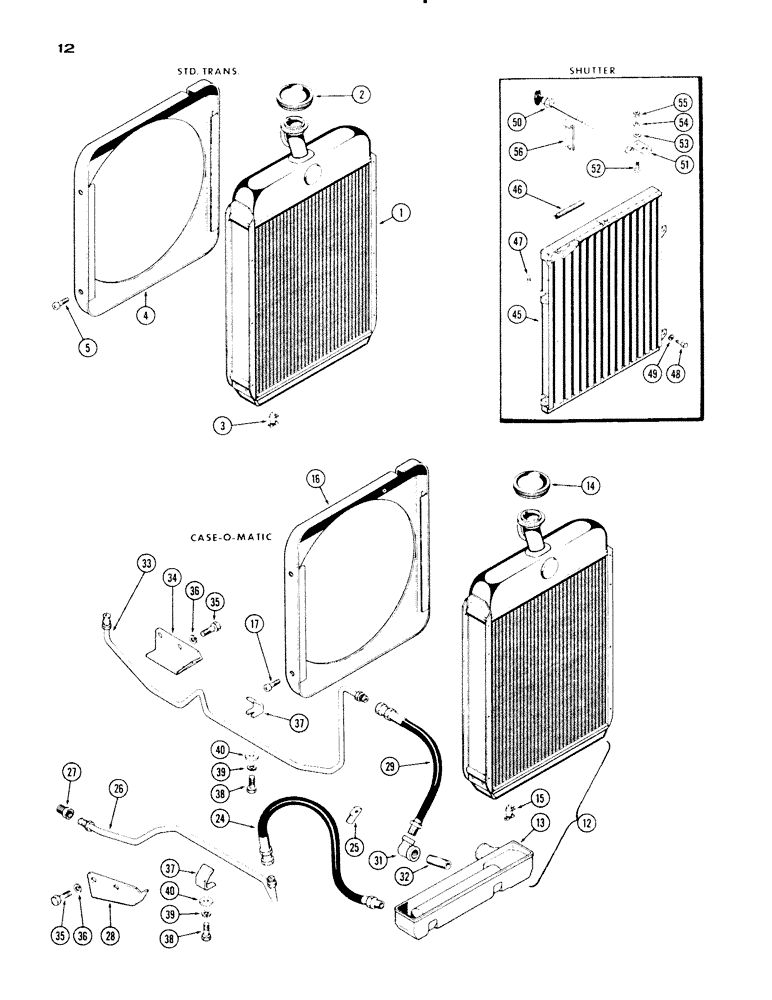

Схема запчастей Case IH 830-SERIES - (012) - RADIATOR, STANDARD CLUTCH DRIVE, RADIATOR AND OIL COOLER TUBES CASE-O-MATIC DRIVE, RADIATOR SHUTTERS (02) - ENGINE
36
47
46
45
2
32
52
48
27
5
55
37
51
56
13
35
1
40
39
31
54
34
12
24
39
53
49
4
37
38
33
38
40
50
35
26
16
17
14
25
29
15
3
28
36

Артикул

Название

Примечание

Количество

1

A21649

RADIATOR

- w/short neck (730 Series), Serial Range: -8200046

1шт.

1

A20950

RADIATOR

- w/short neck (830 Series), Serial Range: -8201146

1шт.

1

A24312

RADIATOR - (730 Series) Order A33625, Start Serial: 8201146

1шт.

1

A33625

RADIATOR - (830 Series), Start Serial: 8201146

1шт.

2

A10259

CAP

- pressure, radiator

1шт.

3

A23655

VALVE

COCK - drain

1шт.

4

A20925

SHROUD - radiator

1шт.

5

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4 x 1/2" N.C. Philips hd.

4шт.

12

A21650

RADIATOR

- w/short neck (730 Series), and oil cooler tubes, Case-O-Matic drive (incl. ref. 13), Serial Range: -8201146

1шт.

12

A20972

RADIATOR

- w/short neck (830 Series), and oil cooler tubes, Case-O-Matic drive (incl. ref. 13), Serial Range: -8201146

1шт.

13

A22818

TANK KIT - oil cooler, tubes, and radiator, Case-O-Matic drive

1шт.

12

A24313

RADIATOR - (730 Series) Can use A33624, and oil cooler tubes, Case-O-Matic drive (incl. ref. 13), Start Serial: 8201146

1шт.

12

A24292

RADIATOR - (830 Series) Can use A33624, and oil cooler tubes, Case-O-Matic drive (incl. ref. 13), Start Serial: 8201146

1шт.

12

A33624

RADIATOR - (730 or 830), and oil cooler tubes, Case-O-Matic drive (incl. ref. 13), Start Serial: 8201146

1шт.

13

A24571

TANK KIT - oil cooler, tubes, and radiator, Case-O-Matic drive

1шт.

14

A10259

CAP

- pressure, radiator and oil cooler tubes, Case-O-Matic drive

1шт.

15

A23655

VALVE

COCK - drain, radiator and oil cooler tubes, Case-O-Matic drive

1шт.

16

A20925

SHROUD - radiator, and oil cooler tubes, Case-O-Matic drive

1шт.

17

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4 x 1/2" N.C. Philips hd., radiator and oil cooler tubes, Case-O-Matic drive

4шт.

24

A22624

HYDRAULIC HOSE,0.50" ID x 20.13"

0.50 " ID x 20.13" - RH, Oil cooler, tubes, and radiator, Case-O-Matic drive

1шт.

25

A20388

CLIP - hose retaining, radiator and oil cooler tubes, Case-O-Matic drive

1шт.

26

A23292

TUBE - R.H. side, oil cooler to pump, and radiator, Case-O-Matic drive

1шт.

27

A23109

CONNECTOR, ELEC

CONNECTOR - tube to pump, radiator and oil cooler, Case-O-Matic drive

1шт.

28

A20169

GUARD - R.H. tube (Gen. Purp. only), radiator and oil cooler tubes, Case-O-Matic drive

1шт.

29

A22623

HYDRAULIC HOSE,0.50" ID x 11.25"

- LH side cooler tube, oil, and radiator, Case-O-Matic drive 0.50" ID x 11.25"

1шт.

31

221-1377

ELBOW,90 Degree, 1/2" NPT

- street, 1/2" 90 deg., radiator and oil cooler tubes, Case-O-Matic drive

1шт.

32

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2" P.T. x 2", radiator and oil cooler tubes, Case-O-Matic drive

1шт.

33

A23293

TUBE - L.H. side, cooler to valve, radiator, and oil tubes, Case-O-Matic drive

1шт.

34

A20170

GUARD - L.H. tube (Gen. Purp. only), radiator and oil cooler tubes, Case-O-Matic drive

1шт.

35

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

Radiator and oil cooler tubes, Case-O-Matic drive Hex, 5/8"-11 x 1", G5, Full Thd

4шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Radiator and oil cooler tubes, Case-O-Matic drive 5/8"

4шт.

37

A11267

CLIP - oil tube, cooler, and radiator, Case-O-Matic drive

4шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/4" N.C. hex, radiator and oil cooler tubes, Case-O-Matic drive

4шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

195-25

WASHER,3/8"

- plain, 13/32 x 13/16 x 5/64", radiator and oil cooler tubes, Case-O-Matic drive

4шт.

45

A21602

SHUTTER ASSY - radiator (incl. ref. 46 & 47)

1шт.

46

A21612

SPRING - shutter, radiator

1шт.

47

173-174

SCREW - control, #8-32 x 5/16" rd. hd., radiator shutters

1шт.

48

175-427

SCREW - shutter, 1/4 x 1/2" N.C. Philips, radiator

4шт.

49

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int-ext. Shakeproof, radiator shutters

4шт.

50

A20176

CONTROL - shutter (78-1/2"), radiator, Serial Range: -8201146

1шт.

50

A24370

CONTROL - shutter (76-1/2"), radiator, Start Serial: 8201146

1шт.

50

A20110

CONTROL - shutter, (75-1/2 w/L.P.G.), radiator

1шт.

51

A22983

SUPPORT - shutter control guide, radiator

1шт.

52

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" N.C. truss hd. Phillips, radiator shutters

1шт.

53

95-4

WASHER,1/4"

- plain, 5/16 x 3/4 x 1/16", radiator shutters

1шт.

54

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Radiator shutters 1/4"

1шт.

55

25-104

NUT,1/4"-20, G5

Radiator shutters 1/4"-20, G5

1шт.

56

A8153

CLIP - control to block, radiator shutters

1шт.

Выбрано товаров: 49
