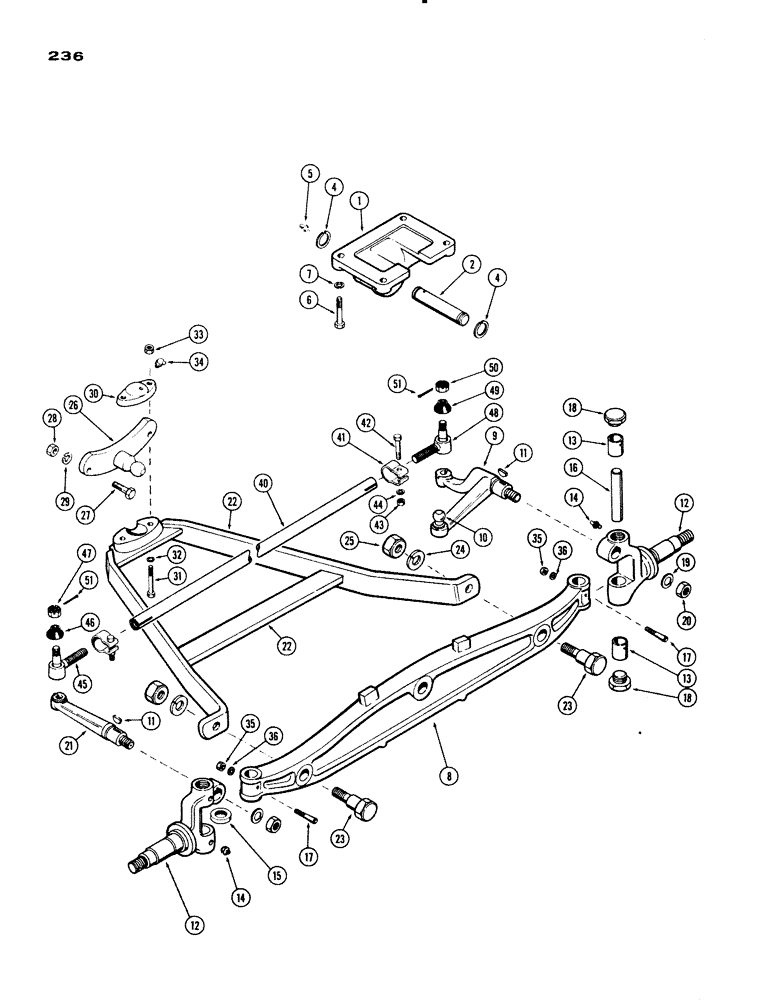

Запчасти Case IH 830-SERIES (236) - FRONT AXLE, TIE RODS, MODEL 730 GROVE (05) - STEERING

1

A8857

PEDESTAL - axle pivot

1шт.

2

A8858

PIN - axle pivot

1шт.

4

F62020

SNAP RING,#125, Ext

RING, snap, , pivot pin #125, Ext

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

6

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Pedestal Hex, 5/8"-11 x 2", G5

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

A8936

AXLE - front

1шт.

9

A8867

ARM ASSY. - steering, L.H. (incl. ref. 10)

1шт.

10

A23418

BALL

- drag link socket

1шт.

11

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Arm to spindle #15, 1/4" x 1"

2шт.

12

A28362

SPINDLE ASSY. - wheel & strg. arm (incl. ref. 13 & 14)

2шт.

13

A26988

BUSHING

- king pin

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

15

A26658

THRUST BEARING,1.26" ID x 2.1875" OD x 0.63"

BEARING - thrust, spindle

2шт.

16

A27745

PIN - king, wheel spindle

2шт.

17

A26490

LOCK ASSY

LOCK - king, Serial Range: pin-axle

2шт.

18

A7356

PLUG

- spindle

4шт.

19

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

2шт.

20

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex

2шт.

21

A8860

ARM - steering, R.H.

1шт.

22

A8866

ROD

- radius

1шт.

23

A26659

STEP BOLT

BOLT - radius, Serial Range: rod-axle

2шт.

24

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

25

25-1116

NUT,1"-14, G5

- 1" N.F. hex

2шт.

26

A11379

ROLLER

BALL ASSY. - pivot, radius rod

1шт.

27

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- 1/2 x 2" N.F. hex

2шт.

28

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

2шт.

29

92-8

LOCK WASHER,1/2"

2шт.

30

A7799

X

CAP - ball (w/plain holes) Use A34158 and (2) 13-852 when depleted

1шт.

30

A34158

CAP

- ball (w/threaded holes)

1шт.

31

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(Cap w/threaded holes) Hex, 1/2"-13 x 3 1/4", G5

2шт.

31

14-860

BOLT,Hex, 1/2" - 20 x 3-3/4", Gr 5

- 1/2 x 3-3/4" N.F hex (cap w/plain holes)

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex (cap w/plain holes only)

2шт.

34

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

35

25-118

NUT,1/2"-20, G5

- king pin lock, 1/2" N.F. hex

2шт.

36

92-8

LOCK WASHER,1/2"

2шт.

40

A9593

TUBE - tie rod (38" lg.)

1шт.

41

A27080

CLAMP

- tie rod end (incl. ref. 42 - 44)

2шт.

42

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8 x 1-3/4" N.F. hex

1шт.

43

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

44

92-6

LOCK WASHER,3/8"

1шт.

45

A28419

END ASSY.

END - tie rod, R.H. thread (incl. ref. 46 & 47)

1шт.

46

G46043

COVER

SEAL - dust

1шт.

47

25-139

SLOTTED NUT,9/16"-18, G5

NUT - slotted, 9/16" N.F.

1шт.

48

A28704

END

- tie rod, L.H. thrd. (incl. ref. 49 & 50)

1шт.

49

G46043

COVER

SEAL - dust

1шт.

50

25-139

SLOTTED NUT,9/16"-18, G5

NUT - slotted, 9/16" N.F.

1шт.

51

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.
