Запчасти Case IH 830-SERIES (234) - DUAL AND SINGLE FRONT WHEEL (05) - STEERING

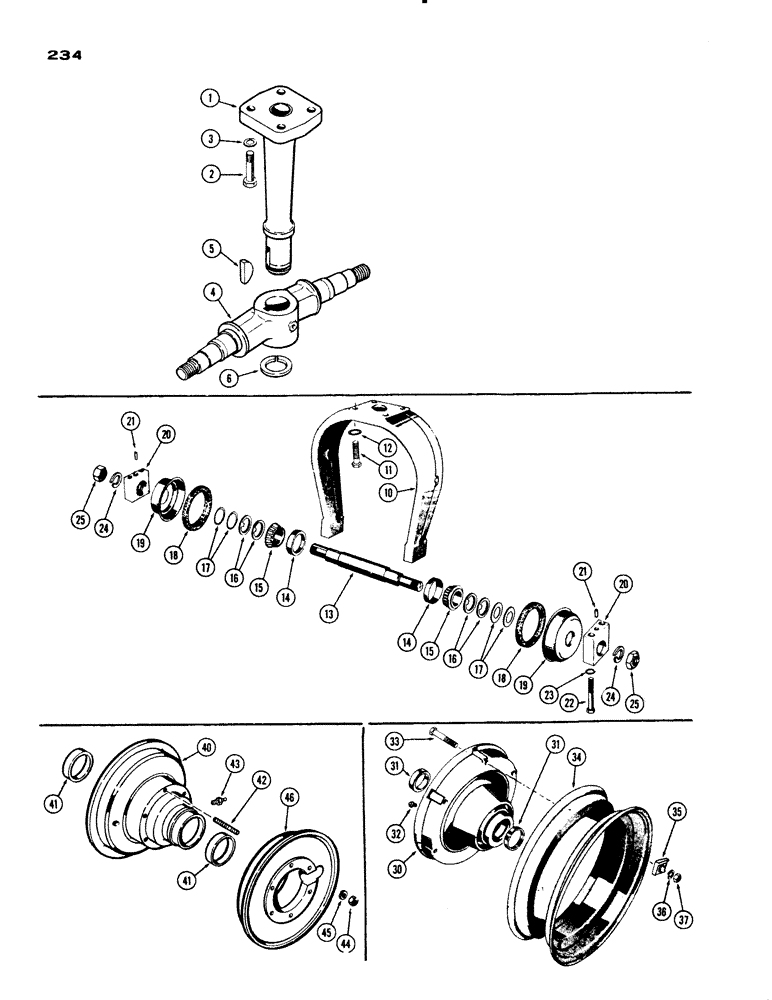

Схема запчастей Case IH 830-SERIES - (234) - DUAL AND SINGLE FRONT WHEEL (05) - STEERING
34
13
10
42
1
25
41
30
33
15
21
23
2
37
22
41
24
36
3
44
17
20
43
17
24
46
16
35
16
32
45
21
6
31
12
15
31
5
19
11
20
14
40
18
4
18
25
19
14

Артикул

Название

Примечание

Количество

1

A32184

PEDESTAL - dual front wheel

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

3

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

4

A28215

SPINDLE - wheel

1шт.

5

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - spindle (#29 Woodruff)

1шт.

6

A28217

RING - snap, spindle retaining

1шт.

10

A26349

FORK - front wheel, single

1шт.

11

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Single front wheel Hex, 5/8"-11 x 2", G5

4шт.

12

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8", Single front wheel

4шт.

13

A28221

SHAFT - front axle, single, wheel

1шт.

14

A27631

CUP

- bearing (included w/hub), single front wheel

2шт.

15

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, single front wheel

2шт.

16

A28222

WASHER - thrust, axle shaft, single front wheel

4шт.

17

A28223

SHIM,.003" Thk

Axle shaft, Single front wheel .003" Thk

1шт.

17

A28224

SHIM,.005" Thk

Axle shaft, Single front wheel .005" Thk

1шт.

18

A27632

FELT

SEAL - dust, axle (3-1/2 x 4-3/8 x 3/8" felt), single front wheel

2шт.

19

A28225

RETAINER

- dust seal, single front wheel

2шт.

20

A9764

BLOCK ASSY. (3-1/2" high for 7.50 x 16 tire), single front wheel (incl. ref. 21)

2шт.

21

NSS

NOT SOLD SEPARAT

PIN - block (3/16 x 2-5/8"), single front wheel

1шт.

20

A28723

BLOCK ASSY - (2-1/8" high for 9.00 x 10 tire), single front wheel (incl. ref. 21)

2шт.

21

NSS

NOT SOLD SEPARAT

PIN - block (3/8 x 1-5/32), single front wheel

1шт.

22

A9765

BOLT - 9/16 x 4-1/2" N.F. hex (w/7.50 x 16 tire), single front wheel

4шт.

22

14-952

BOLT,Hex, 9/16" - 18 x 3-1/4", Gr 5

- 9/16 x 3-1/4" N.F. (w/9.00 x 10 tire), single front wheel

4шт.

23

92-9

BEARING WASHER,9/16"

Single front wheel 9/16"

4шт.

24

92-18

LOCK WASHER,1 1/8"

single front wheel 1 1/8"

2шт.

25

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- jam, 1-1/8" N.F. hex, single front wheel

2шт.

30

A28722

WHEEL (STEERING)

WHEEL ASSY. (for 7.50 x 16 tire), single front (incl. ref. 31 & 32)

1шт.

31

A27631

CUP

- bearing, single front wheel

2шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str., single front wheel

1шт.

33

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- rim, 1/2 x 3-1/2" N.F. hex, single front wheel

6шт.

34

A27295

RIM (for 7.50 x 16 tire), single front wheel

2шт.

35

A27228

CLAMP

- rim to wheel, single front

6шт.

36

92-8

LOCK WASHER,1/2"

single front wheel 1/2"

6шт.

37

25-178

NUT,1/2"-20, G5, Hvy

- clamp, 1/2" N.F. hex, single front wheel

6шт.

40

A28724

WHEEL ASSY. (for 9.00 x 10 tire), single front (incl. ref. 41 & 42)

1шт.

41

A27631

CUP

- bearing, single front wheel

2шт.

42

A27704

STUD - flange (1/2 x 4"), single front wheel

6шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str., single front wheel

1шт.

44

25-178

NUT,1/2"-20, G5, Hvy

- 1/2" N.F. hex (heavy), single front wheel

6шт.

45

92-8

LOCK WASHER,1/2"

single front wheel 1/2"

6шт.

46

A26245

FLANGE - wheel (for 9.00 x 10 tire), single front

1шт.

Выбрано товаров: 41
