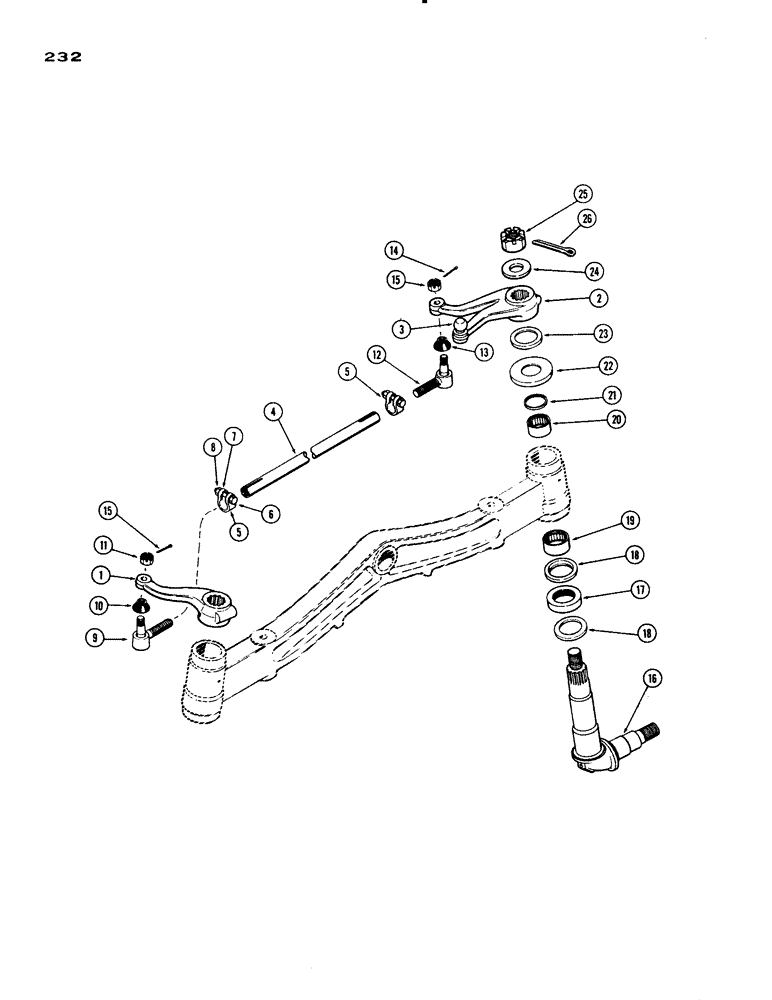

Запчасти Case IH 830-SERIES (232) - FRONT AXLE, STEERING ARMS AND SPINDLES, TAPERED SPLINE SPINDLE, STANDARD FOUR WHEEL TRACTOR (05) - STEERING

1

A24470

ARM - steering, R.H.

1шт.

2

A24468

ARM ASSY. - steering, L.H. (incl. ref. 3)

1шт.

3

A23418

BALL

- drag link

1шт.

4

A9593

TUBE - tie rod

1шт.

5

A27080

CLAMP

- tie rod end (incl. ref. 6 - 8)

2шт.

6

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8 x 1-3/4" N.F. hex

1шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

A28419

END ASSY.

END - R.H. thread, tie rod (incl. ref. 10 & 11)

1шт.

10

G46043

COVER

SEAL - dust

1шт.

11

25-130

CORE

NUT - slotted, 9/16" N.F.

1шт.

12

A28704

END

- L.H. thread, tie rod (incl. ref. 13 & 14)

1шт.

13

G46043

COVER

SEAL - dust

1шт.

14

25-130

CORE

NUT - slotted, 9/16" N.F.

1шт.

15

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

16

A36535

SPINDLE - front wheel (w/tapered spline)

2шт.

17

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust, spindle

2шт.

18

A36565

WASHER,51.2mm ID x 66.67mm OD x 6.35mm Thk

- thrust, spindle

4шт.

19

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle, lower

2шт.

20

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, upper

2шт.

21

A27754

OIL SEAL

- oil, spindle

2шт.

22

A35344

SHIELD

- dust, spindle bearing

2шт.

23

A35861

SHIM,.0149" Thk

Spline adj. .0149" Thk

1шт.

23

A35345

SHIM,.0359" Thk

Spline adj. .0359" Thk

1шт.

23

A35346

SHIM,.0598" Thk

Spline adj. .0598" Thk

1шт.

23

A35347

SHIM,.1345" Thk

Spline adj. .1345" Thk

1шт.

24

A35047

WASHER

- spindle nut (1-13/16 x 2-1/2 x 5/32")

2шт.

25

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - slotted, 1-1/8" N.F. hex

2шт.

26

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.
