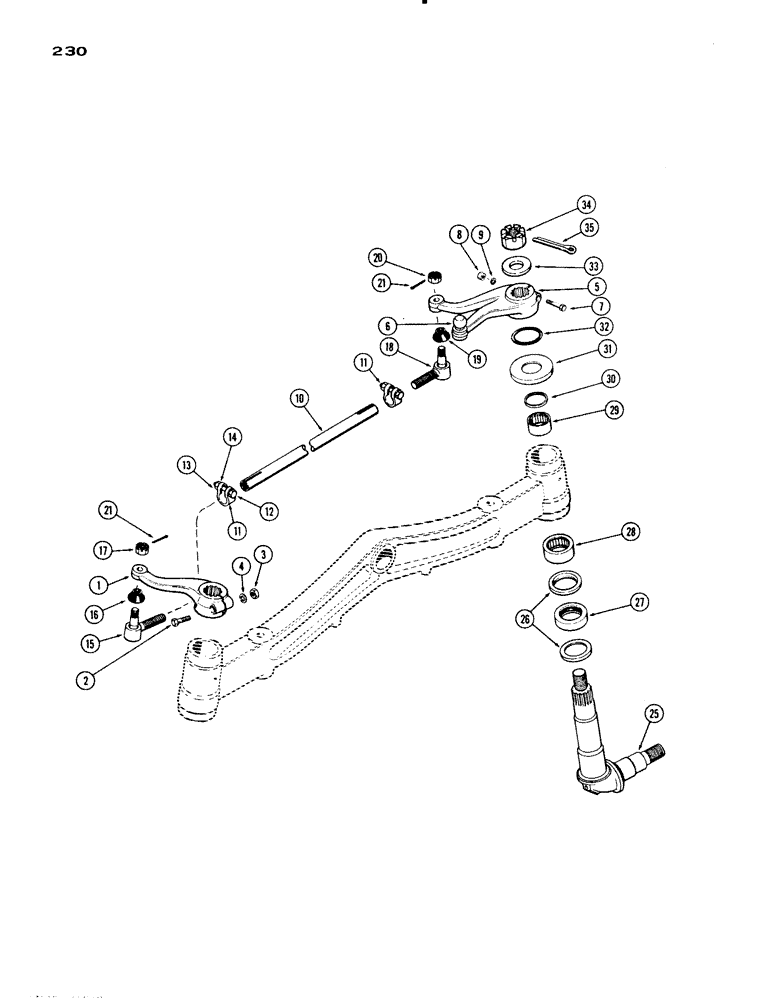

Запчасти Case IH 830-SERIES (230) - FRONT AXLE, STEERING ARMS AND SPINDLES, STRAIGHT SPLINE SPINDLE, STANDARD FOUR WHEEL TRACTOR (05) - STEERING

1

A9582

U-BOLT

ARM ASSY. - steering, R.H. (incl. ref. 2 - 4)

1шт.

2

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

- 1/2 x 3" N.F. hex

1шт.

3

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

4

92-8

LOCK WASHER,1/2"

1шт.

5

A7806

ARM ASSY. - steering, L.H. (incl. ref. 6 - 9)

1шт.

6

A23418

BALL

- drag link

1шт.

7

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

- 1/2 x 3" N.F. hex

1шт.

8

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

9

92-8

LOCK WASHER,1/2"

N.F. 1/2"

1шт.

10

A9593

TUBE - tie rod

1шт.

11

A27080

CLAMP

- tie rod end (incl. ref. 12 - 14)

2шт.

12

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8 x 1-3/4" N.F. hex

1шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

A28419

END ASSY.

END - R.H. thread, tie rod (incl. ref. 16 & 17)

1шт.

16

G46043

COVER

SEAL - dust

1шт.

17

25-130

CORE

NUT - slotted, 9/16" N.F.

1шт.

18

A28704

END

- L.H. thread, tie rod (incl. ref. 19 & 20)

1шт.

19

G46043

COVER

SEAL - dust

1шт.

20

25-130

CORE

NUT - slotted, 9/16" N.F.

1шт.

21

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

25

A28228

SPINDLE - front wheel (w/str. spline)

2шт.

26

A28231

X

WASHER - thrust, (Order A36565 when depleted)

4шт.

26

A36565

WASHER,51.2mm ID x 66.67mm OD x 6.35mm Thk

- thrust (2-5/8 I.D. x 2-1/64 I.D. x 1/4")

4шт.

27

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust, spindle

2шт.

28

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle, lower

2шт.

29

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, upper

2шт.

30

A27754

OIL SEAL

- oil, spindle

2шт.

31

A7155

SHIELD

- dust, spindle bearing

2шт.

32

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - dust seal

2шт.

33

A35047

WASHER

- spindle nut (1-3/16 x 2-1/2 x 3/16")

2шт.

34

25-2318

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - castle, 1-1/8" N.F. hex

2шт.

35

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.
