Запчасти Case IH 830-SERIES (228) - FRONT AXLE, STANDARD FOUR WHEEL TRACTOR (05) - STEERING

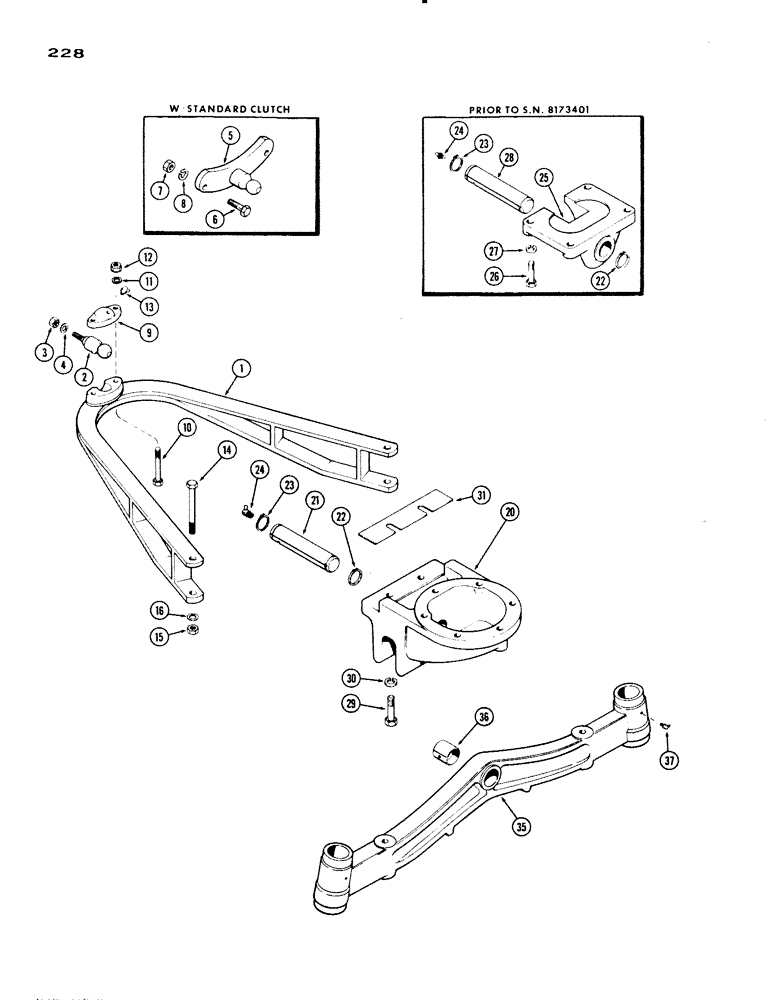

Схема запчастей Case IH 830-SERIES - (228) - FRONT AXLE, STANDARD FOUR WHEEL TRACTOR (05) - STEERING
23
24
2
20
26
35
29
10
4
23
22
31
12
15
27
6
25
21
3
1
24
22
30
9
14
36
16
7
28
5
11
13
37
8

Артикул

Название

Примечание

Количество

1

A7802

ROD - radius, front axle

1шт.

2

A33748

X

BALL - pivot, radius rod (w/C-O-M)

1шт.

3

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

4

92-8

LOCK WASHER,1/2"

1шт.

5

A11379

ROLLER

BALL - pivot, radius rod (w/std. clutch)

1шт.

6

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- 1/2 x 2" N.F. hex

2шт.

7

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

A34158

CAP

- socket, pivot ball

1шт.

10

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(For cap with tapped holes) (Incl. ref. 11) Hex, 1/2"-13 x 3 1/4", G5

2шт.

10

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

(For earlier cap with plain holes) (Incl. ref. 11) Hex, 1/2"-13 x 3 3/4", G5

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

14

A22949

BOLT - radius rod (5/8 x 6" N.C. hex Gr. 8)

2шт.

15

25-1610

NUT,5/8"-11, G5, Hvy

- 5/8" N.C. hex (heavy)

2шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

20

A22821

PEDESTAL ASSY. (incl. ref. 21 & 22), Start Serial: 8173401

1шт.

21

A22823

PIN

- pivot, Start Serial: 8173401

1шт.

22

A7610

RING, SNAP

RING - snap, front

1шт.

23

A7611

SNAP RING,#175, Ext

RING, snap, , rear #175, Ext

1шт.

24

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

25

A23605

PEDESTAL ASSY. (incl. ref. 26 & 27), Serial Range: -8173401

1шт.

26

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

28

A7518

PIN - pivot, Serial Range: -8173401

1шт.

29

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

, Start Serial: 8173401

2шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

31

A22799

SHIM - pedestal (.003"), Start Serial: 8173401

1шт.

31

A22798

SHIM - pedestal (.005"), Start Serial: 8173401

1шт.

35

A20929

AXLE ASSY. - front (incl. ref. 36)

1шт.

36

A35002

BUSHING

- pivot (1-3/4 x 1-15/16 x 2")

1шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

Выбрано товаров: 33
