Запчасти Case IH 830-SERIES (224) - FRONT AXLE, HIGH CLEARANCE (05) - STEERING

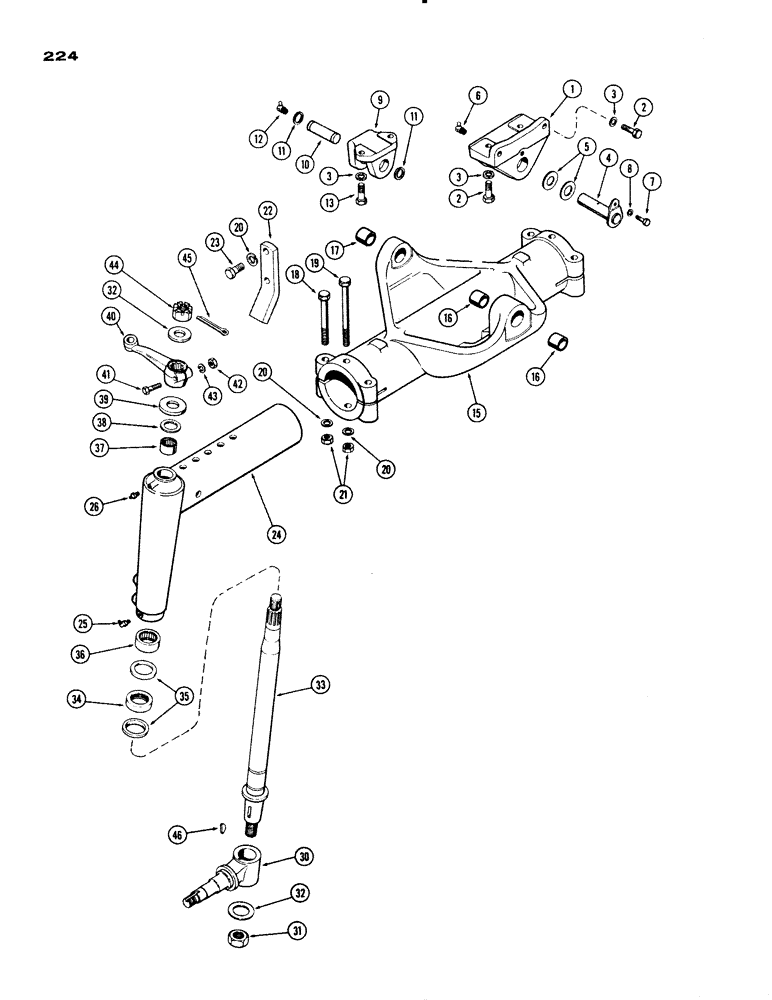

Схема запчастей Case IH 830-SERIES - (224) - FRONT AXLE, HIGH CLEARANCE (05) - STEERING
7
43
32
3
38
13
30
26
21
11
5
18
41
17
10
15
40
23
45
36
3
39
44
19
25
46
20
6
2
34
16
37
1
8
4
42
22
20
2
3
32
11
9
31
12
35
20
16
24
33

Артикул

Название

Примечание

Количество

1

A8190

SUPPORT - front, axle

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

A7907

PIN - front, axle pivot

1шт.

5

A7905

WASHER - thrust, frt. pivot (1-25/32 x 3-1/2 x 7/64")

2шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

7

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Pivot pin Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

8

92-8

LOCK WASHER,1/2"

9шт.

9

A8191

SUPPORT - rear, axle

1шт.

10

A7909

PIN - rear pivot, axle

1шт.

11

A27568

RING

- snap, rear pivot pin

2шт.

12

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

13

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Support Hex, 5/8"-11 x 2", G5

2шт.

15

A7924

HOUSING ASSY. - center section (incl. ref. 16 & 17)

1шт.

16

A7908

BUSHING

- front pivot (1-3/4 x 2 x 1-1/8")

2шт.

17

A7910

BUSHING - rear pivot (1-1/2 x 1-3/4 x 1-3/4")

1шт.

18

14-1296

BOLT,Hex, 3/4" - 16 x 6", Gr 5

- axle clamp, 3/4 x 6" N.F. hex

4шт.

19

116-702

BOLT

BOLT - extension, 3/4 x 8" N.F. hex

2шт.

20

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

10шт.

21

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex

6шт.

22

A8194

STOP - axle pivot

2шт.

23

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Stop Hex, 3/4"-10 x 1 3/4", G5

4шт.

24

A8196

EXTENSION - R.H., axle

1шт.

24

A8197

EXTENSION - L.H., axle (R.H. shown)

1шт.

25

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

30

A7850

SPINDLE - wheel

2шт.

31

129-131

NUT,1 1/8"-12, G5

- spindle, 1-1/8" N.F. hex

2шт.

32

T25078

WASHER - spindle nut (1-13/16 x 2-1/2 x 5/32")

4шт.

33

A7916

PIN - king, wheel spindle

2шт.

34

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust, king pin

2шт.

35

A28231

X

WASHER - thrust (Use A36565 when depleted)

4шт.

35

A36565

WASHER,51.2mm ID x 66.67mm OD x 6.35mm Thk

- thrust (cast)

4шт.

36

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle, lower, king pin

2шт.

37

A7851

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING - needle, upper, king pin

2шт.

38

A27564

OIL SEAL

- oil, king pin (1-1/2 x 1-7/8 x 3/16")

2шт.

39

A7849

GUARD

SHIELD - dust, king pin

2шт.

40

A9584

ARM ASSY. - steering, R.H. (incl. ref. 41 - 43)

1шт.

40

A9585

SPARE PART

ARM ASSY. - steering, L.H. (R.H. shown) (incl. ref. 41 - 43)

1шт.

41

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

- 1/2 x 3" N.F. hex

1шт.

42

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

43

92-8

LOCK WASHER,1/2"

1шт.

44

25-2318

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - slotted, 1-1/8" N.F.

2шт.

45

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

46

126-144

WOODRUFF KEY,#129, 3/8" x 2 1/8", HT

KEY - wheel spindle to king pin

2шт.

Выбрано товаров: 45
