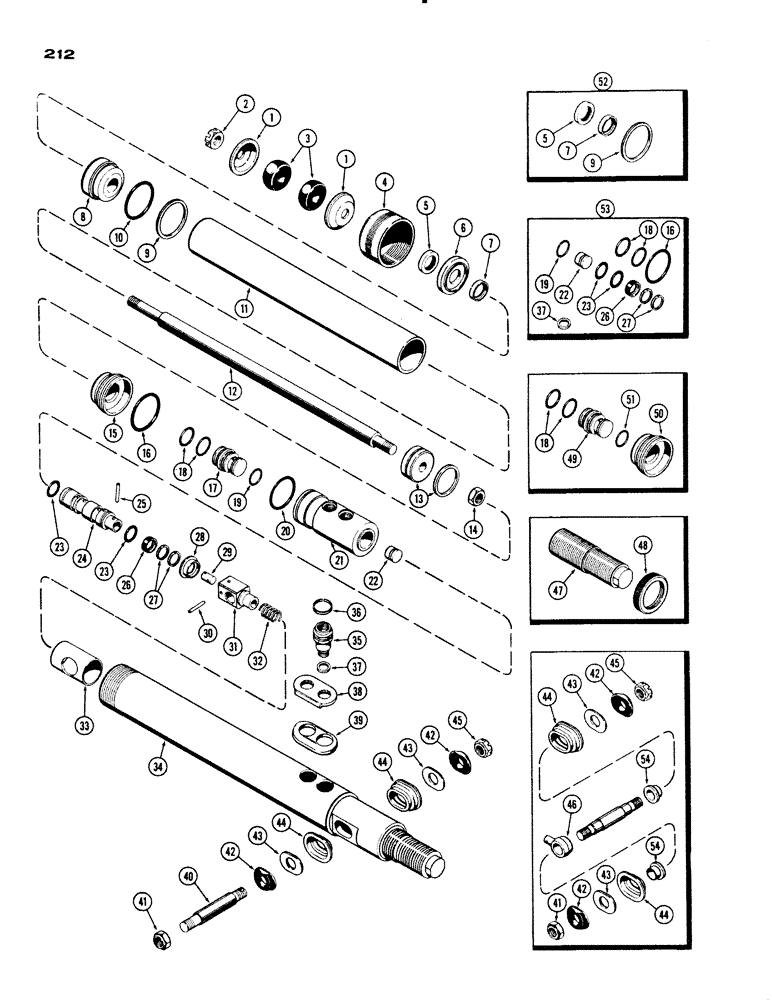

Запчасти Case IH 830-SERIES (212) - A24933 POWER STEERING CYLINDER (05) - STEERING

1

A21938

RETAINER

- cushion

2шт.

2

129-277

NUT

- slotted, 1/2" N.F.

1шт.

3

A21940

CUSHION

- cylinder bracket

2шт.

4

A21915

CAP - tube

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod (Order ref. 52)

1шт.

6

A21912

RETAINER - seal

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rod guide (Order ref. 52)

1шт.

8

A21908

GUIDE

- piston rod (incl. ref. 9)

1шт.

9

A21910

RETAINER - "O" ring

1шт.

10

NSS

NOT SOLD SEPARAT

"O" RING - rod guide (Order ref. 52)

1шт.

11

A21904

TUBE - inner, cylinder

1шт.

12

A21905

ROD - piston

1шт.

13

A40011

PISTON

- cylinder (includes ring)

1шт.

14

25-118

NUT,1/2"-20, G5

- piston, 1/2" N.F. hex

1шт.

15

A23622

BASE - valve

1шт.

16

NSS

NOT SOLD SEPARAT

"O" RING - valve base (Order ref. 53)

1шт.

17

A23621

O-RING

PLUG - valve

1шт.

18

NSS

NOT SOLD SEPARAT

"O" RING - valve plug (Order ref. 53)

2шт.

19

NSS

NOT SOLD SEPARAT

"O" RING - valve to body (Order ref. 53)

1шт.

20

NSS

NOT SOLD SEPARAT

"O" RING - valve body

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - valve (Order A24933)

1шт.

22

NSS

NOT SOLD SEPARAT

PISTON - valve (Order ref. 53)

1шт.

23

NSS

NOT SOLD SEPARAT

"O" RING - valve plunger (Order ref. 53)

2шт.

24

NSS

NOT SOLD SEPARAT

PLUNGER - valve (Order A24933)

1шт.

25

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

26

NSS

NOT SOLD SEPARAT

"T" RING - valve body (Order ref. 53)

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - back-up (Use ref. 53)

2шт.

28

A23619

RETAINER - "T" RING

1шт.

29

A40016

PIN

- connector (See ref. 46)

1шт.

30

138-305

LOCK PIN,1/8" x 1", Slotted, Stainless

PIN, 1/8" x 1, slotted, Stainless

1шт.

31

A40015

CONNECTOR - plunger (See ref. 46)

1шт.

32

A40019

SPRING - connector (See ref. 46)

1шт.

33

A23623

SPACER - stud

1шт.

34

NSS

NOT SOLD SEPARAT

TUBE - outer (Order A24933)

1шт.

35

A21935

FITTING

-, Serial Range: hose-valve

2шт.

36

A40018

RING

- retainer, fitting

2шт.

37

A21936

GASKET

- fitting (See ref. 53)

2шт.

38

A40017

HOLDER - fitting

1шт.

39

A23620

SEAL

- fitting holder

1шт.

40

A21932

STUD

- activator and drag link

1шт.

41

131-58

LOCK NUT,1/2"-20, G5

NUT - lock, 1/2" N.F. hex

1шт.

42

A21931

CUSHION

- drag link stud

2шт.

43

A21930

WASHER

- cushion

2шт.

44

A21929

RETAINER

- cushion

2шт.

45

A22167

NUT

- stud

1шт.

46

A21925

END

EYE - valve to drag link (For early type cylinder only) (See ref. 29, 31 & 32)

1шт.

47

A21967

PLUG - valve to drag link (For early type cylinder only)

1шт.

48

A21928

NUT - lock, adj. plug (For early type cylinder only)

1шт.

49

NSS

NOT SOLD SEPARAT

PLUG - valve (Early type, Order ref. 15 & 17)

1шт.

50

NSS

NOT SOLD SEPARAT

BASE - valve (Early type, Order ref. 15 & 17)

1шт.

51

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - valve plug (Early type cyl. only)

1шт.

52

A40013

SEAL

KIT - cylinder seal (includes ref. 5, 7 & 9)

1шт.

53

A40014

KIT

- valve seal (includes ref. 16, 18, 19, 22, 23, 26, 27 & 37)

1шт.

54

A21933

COLLAR

- stud

2шт.
