Запчасти Case IH 830-SERIES (211A) - POWER STEERING CYLINDER AND DRAG LINK, STD. FOUR WHEEL TRAC., ROSS CYL., 1ST USED TRAC. S/N 8232703 (05) - STEERING

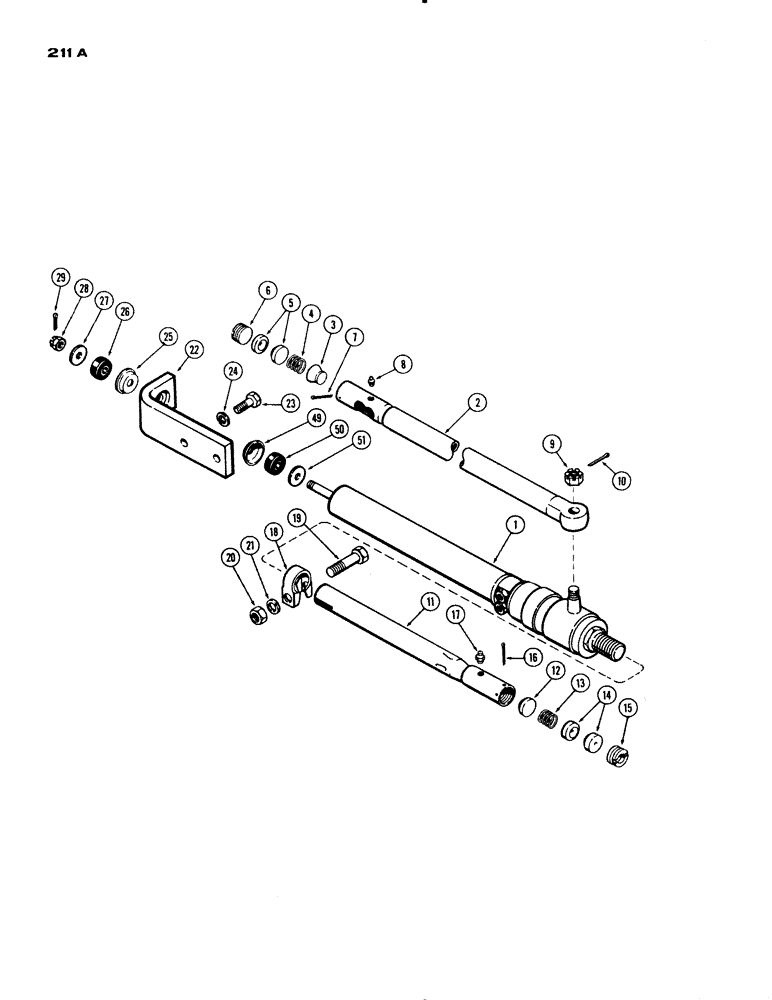

Схема запчастей Case IH 830-SERIES - (211A) - POWER STEERING CYLINDER AND DRAG LINK, STD. FOUR WHEEL TRAC., ROSS CYL., 1ST USED TRAC. S/N 8232703 (05) - STEERING
4
7
26
24
51
21
49
23
28
17
13
3
9
2
50
10
1
19
27
15
14
18
25
8
29
20
22
12
16
6
5
11

Артикул

Название

Примечание

Количество

1

A24736

CYLINDER ASSY. (Repairs Figure 214)

1шт.

2

A24732

LINK

ASSY. - drag, rear (incl. ref. 3 - 8)

1шт.

3

A26767

SEAT

- bearing

1шт.

4

A26630

VALVE SPRING

SPRING - bearing

1шт.

5

A26629

BEARING

- ball seat

2шт.

6

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - adjusting

1шт.

7

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

9

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - slotted, 5/8" N.F. (Part of cylinder)

1шт.

10

132-52

COTTER PIN,1/8" x 1 1/2"

PIN, split (Cotter), 1/8" x 1-1/2"

1шт.

11

A21171

LINK

ASSY. - drag, front (incl. ref. 12 - 17)

1шт.

12

A26767

SEAT

- bearing

1шт.

13

A26630

VALVE SPRING

SPRING - bearing

1шт.

14

A26629

BEARING

- ball seat

2шт.

15

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - adjusting

1шт.

16

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

18

A23133

CLAMP

- front drag link (incl. ref. 19 - 21)

1шт.

19

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

20

129-107

NUT,5/8"-11, G5

1шт.

21

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

A21169

BRACKET - cyl. mounting

1шт.

23

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25

A21938

RETAINER

- cushion (Part of cylinder assy.)

2шт.

26

A35654

GROMMET

CUSHION - cylinder bracket

2шт.

27

A24978

RETAINER

WASHER - cushion (1/2 x 1-3/8" x #8 ga.)

2шт.

28

25-138

SLOTTED NUT,1/2"-20, G5

NUT - slotted, 1/2" N.F. (Part of cylinder assy.)

1шт.

29

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

Выбрано товаров: 29
