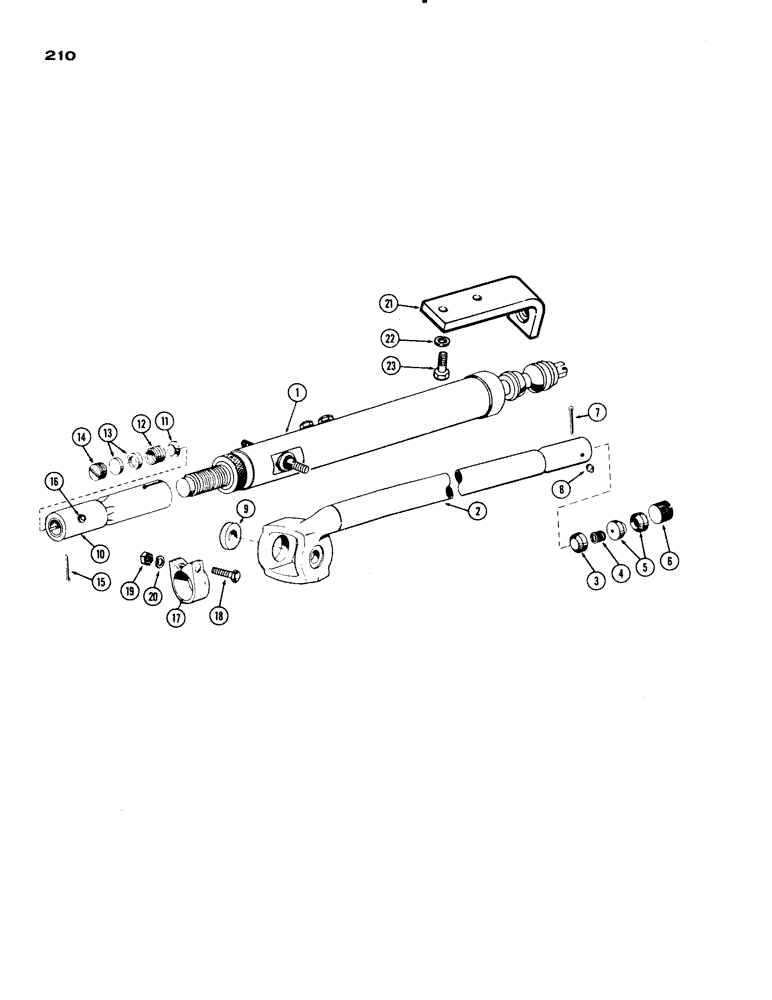

Запчасти Case IH 830-SERIES (210) - POWER STEERING CYLINDER AND DRAG LINK, MONROE CYLINDER (05) - STEERING

1

A21168

CYLINDER ASSY. (Order A24933)

1шт.

1

A23651

CYLINDER ASSY. - (Order A24933)

1шт.

1

A24933

CYLINDER ASSY. - (When depleted use A24736 Cylinder and A24732 drag link from Figure 211A) (Repairs Figure 212)

1шт.

2

A21175

LINK ASSY. - drag, rear (incl. ref. 3 - 16)

1шт.

3

A26767

SEAT

- spring

1шт.

4

A26630

VALVE SPRING

SPRING - ball seat bearing

1шт.

5

A26629

BEARING

- ball seat

2шт.

6

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - adjusting

1шт.

7

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

9

A22178

SPACER - rear drag link

1шт.

10

A21171

LINK

ASSY. - drag, front

1шт.

11

A26767

SEAT

- spring

1шт.

12

A26630

VALVE SPRING

SPRING - ball seat bearing

1шт.

13

A26629

BEARING

- ball seat

2шт.

14

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - adjusting

1шт.

15

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

17

A23133

CLAMP

- front drag link (incl. ref. 18 - 20)

1шт.

18

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

19

129-107

NUT,5/8"-11, G5

1шт.

20

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21

A21169

BRACKET - cyl, mounting

1шт.

22

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
