Запчасти Case IH 830-SERIES (208) - A22145 POWER STEERING PUMP, 1ST USED TRAC. S/N 8168000 (05) - STEERING

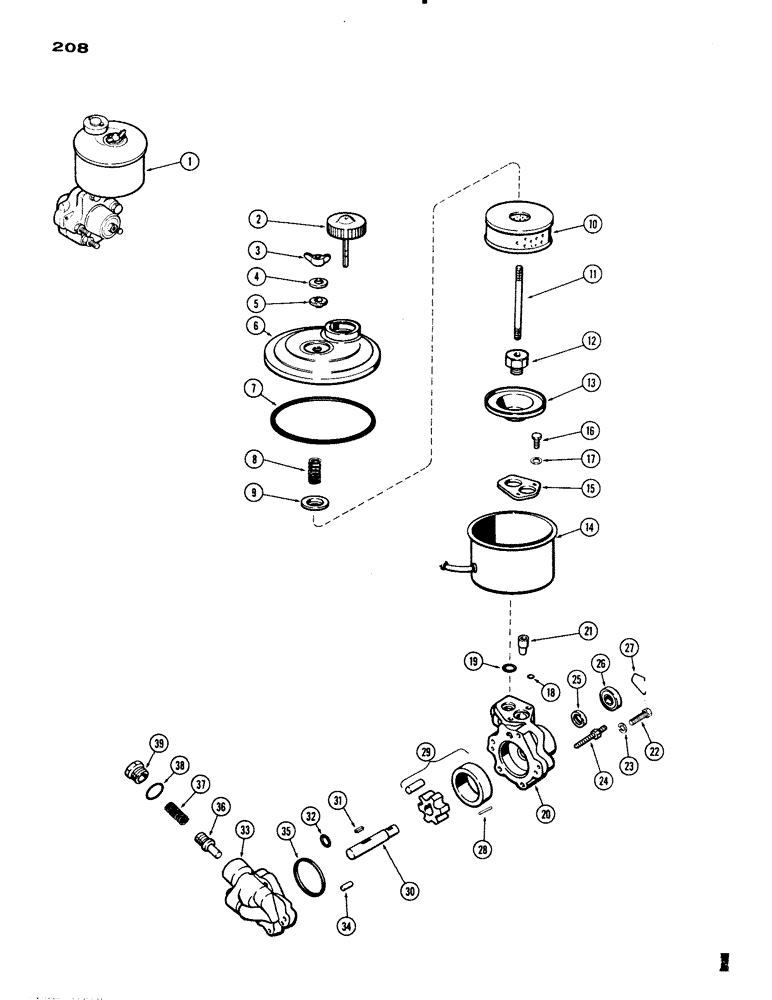

Схема запчастей Case IH 830-SERIES - (208) - A22145 POWER STEERING PUMP, 1ST USED TRAC. S/N 8168000 (05) - STEERING
24
2
14
10
32
3
16
6
19
13
28
11
34
27
29
5
39
18
26
8
17
30
33
31
21
22
4
1
15
23
25
12
35
9
37
7
20
38
36

Артикул

Название

Примечание

Количество

1

A22145

PUMP & RESERVOIR ASSY. - power steering (incl. ref. 2 - 39)

1шт.

2

A24137

GAUGE ASSY.

CAP - filler (incl. level gauge)

1шт.

3

129-419

WING NUT,5/16"-18

NUT - cover, 5/16" N.C. wing

1шт.

4

A30831

WASHER

- cover nut (3/8 x 7/8 x 3/32")

1шт.

5

A30830

GASKET

- cover stud

1шт.

6

A24136

COVER ASSY. - reservoir (incl. ref. 7)

1шт.

7

A24138

GASKET

-, Serial Range: cover-reservoir

1шт.

8

A30840

SPRING

- tension

1шт.

9

A22714

SEAT

- spring

1шт.

10

A30834

ELEMENT

- oil filter (3-3/8" dia. x 1-1/2")

1шт.

11

A24140

STUD

- cover

1шт.

12

A20523

STUD

- reservoir mounting

1шт.

13

NSS

NOT SOLD SEPARAT

CAP - element

1шт.

14

A22435

RESERVOIR - oil

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - reinforcement

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Res. to pump Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

A11026

GASKET

- reservoir bolt (11/32 x 29/64 x 1/16")

2шт.

19

A11027

GASKET

- res. stud (53/64 x 61/64 x 7/64")

2шт.

20

A20517

BODY ASSY. - pump (incl. ref. 21)

1шт.

21

A20526

VENTURI

- pump

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Body Hex, 3/8"-16 x 2", G5

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

A20527

STUD - body

3шт.

25

A30838

OIL SEAL

- oil, pump shaft

1шт.

26

A30835

BEARING

- pump shaft

1шт.

27

A20524

RING, SNAP

RING - snap, bearing

1шт.

28

A20528

PIN

- impeller cam

1шт.

29

A20519

X

IMPELLER KIT

1шт.

30

A20510

SHAFT

- pump drive

1шт.

31

A30839

AXLE PIN

KEY - impeller

1шт.

32

A20514

O-RING

"O" RING - by-pass-port

1шт.

33

A20521

COVER

- pump (includes bushings)

1шт.

34

A30836

DOWEL

PIN - dowel, cover

2шт.

35

A20513

O-RING

"O" RING -, Serial Range: cover-body

1шт.

36

A20516

VALVE

- pressure relief

1шт.

37

A20511

SPRING

- relief valve

1шт.

38

A30837

O-RING

"O" RING -, Serial Range: cap-body

1шт.

39

A20512

CAP - relief valve

1шт.

Выбрано товаров: 39
