Запчасти Case IH 830-SERIES (206) - A20372 POWER STEERING PUMP, USED PRIOR TO TRAC. S/N 8168000 (05) - STEERING

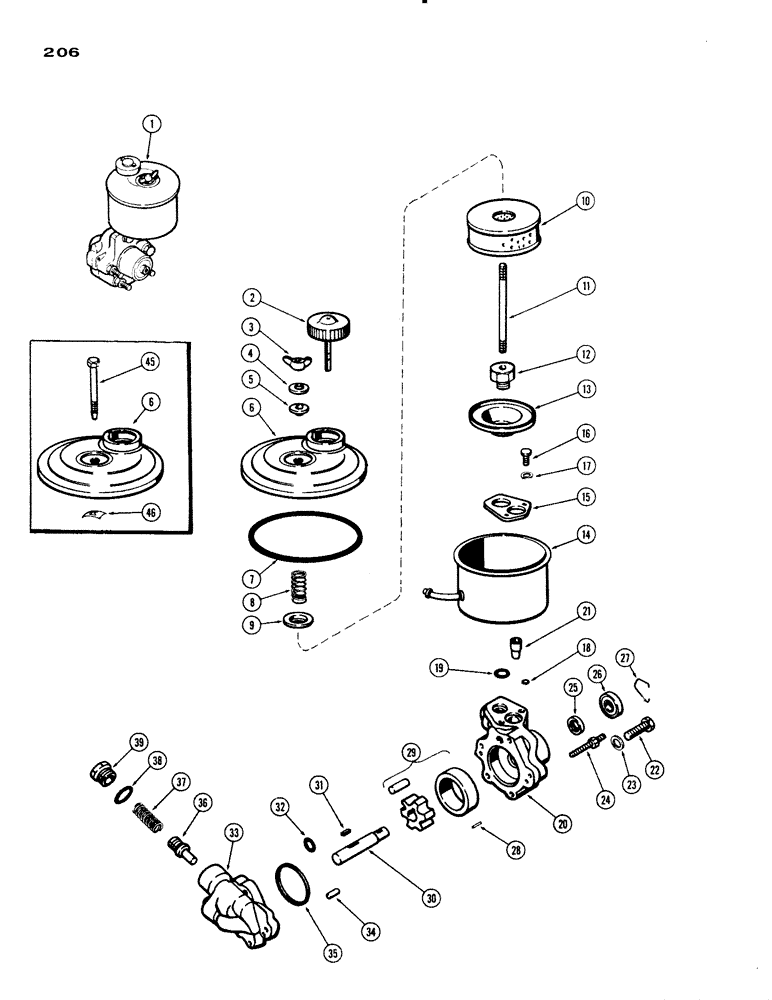

Схема запчастей Case IH 830-SERIES - (206) - A20372 POWER STEERING PUMP, USED PRIOR TO TRAC. S/N 8168000 (05) - STEERING
25
27
19
32
9
6
34
16
35
31
21
8
18
29
5
36
7
22
4
39
26
30
15
1
12
14
33
2
37
3
10
6
46
38
13
17
24
45
11
28
20
23

Артикул

Название

Примечание

Количество

1

A20372

PUMP & RESERVOIR ASSY. - power steering (incl. ref. 2 - 39)

1шт.

2

A24137

GAUGE ASSY.

CAP - filler (includes level gauge)

1шт.

3

129-419

WING NUT,5/16"-18

NUT - cover, 5/16" N.C. wing (See ref. 46)

1шт.

4

A30831

WASHER

- cover nut

1шт.

5

A30830

GASKET

- cover stud

1шт.

6

A24136

COVER ASSY. - reservoir

1шт.

7

A24138

GASKET

- cover

1шт.

8

A30840

SPRING

- tension

1шт.

9

A22714

SEAT

- spring

1шт.

10

A30834

ELEMENT

- oil filter (3-3/8" dia. x 1-1/2")

1шт.

11

A24140

STUD

- cover (See ref. 45)

1шт.

12

A20523

STUD

- mounting, reservoir

1шт.

13

NSS

NOT SOLD SEPARAT

CAP - element

1шт.

14

A20522

BODY - reservoir

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - reinforcing

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Plate Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

A11026

GASKET

- mtg. bolt (11/32 x 29/64 x 1/16")

1шт.

19

A11027

GASKET

- oil port (53/64 x 61/64 x 7/64")

2шт.

20

A20517

BODY ASSY. - pump (incl. bushing & venturi) (incl. ref. 21)

1шт.

21

A20526

VENTURI

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Body Hex, 3/8"-16 x 2", G5

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

A20527

STUD - body

3шт.

25

A30838

OIL SEAL

- oil, pump shaft

1шт.

26

A30835

BEARING

- pump shaft

1шт.

27

A20524

RING, SNAP

RING - snap, bearing

1шт.

28

A20528

PIN

- impeller cam

1шт.

29

A20519

X

IMPELLER KIT - oil

1шт.

30

A20510

SHAFT

- pump drive

1шт.

31

A30839

AXLE PIN

KEY - impeller

1шт.

32

A20514

O-RING

"O" RING - by-pass-port

1шт.

33

A20521

COVER

- pump (includes bushings)

1шт.

34

A30836

DOWEL

PIN - dowel, cover

2шт.

35

A20513

O-RING

"O" RING -, Serial Range: cover-body

1шт.

36

A20516

VALVE

- relief

1шт.

37

A20511

SPRING

- relief valve

1шт.

38

A30837

O-RING

"O" RING - relief valve cap

1шт.

39

A20512

CAP - relief valve

1шт.

45

A20525

X

BOLT - cover (Order ref. 3 & 11)

1шт.

46

A30832

NUT - speed, cover bolt (Used on early model pump)

1шт.

Выбрано товаров: 41
