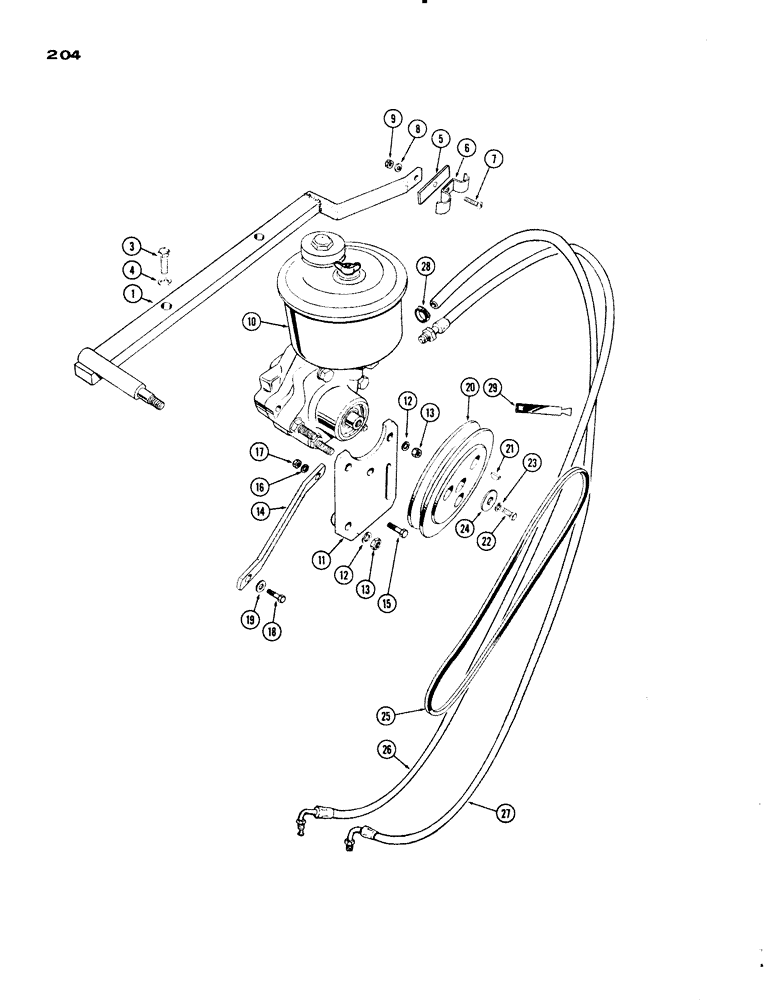

Запчасти Case IH 830-SERIES (204) - POWER STEERING PUMP ATTACHMENT, FOUR WHEEL AND WESTERN, 1ST USED TRAC. S/N 8168000 (05) - STEERING

1

A24037

STRAP

SUPPORT - pump bracket

1шт.

3

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

2шт.

4

92-7

LOCK WASHER,7/16"

2шт.

5

A22141

BRACKET - clamp

1шт.

6

A22142

CLAMP - hose retaining

1шт.

7

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4 x 3/4" N.F. hex

1шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

1шт.

10

A22145

PUMP & RESERVOIR ASSY. - (Repairs Figure 208)

1шт.

11

A21736

PLATE - pump mounting

1шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

4шт.

14

A21740

STRAP - pump adjusting

1шт.

15

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F. hex

1шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

18

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex

1шт.

19

A23264

WASHER - adjusting (25/64 x 31/32 x 5/32")

1шт.

20

A8186

PULLEY

- pump drive

1шт.

21

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Pulley #3, 1/8" x 1/2"

1шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

A27343

BUSHING

WASHER - pulley (11/32 x 1 x 3/16")

1шт.

25

A22765

BELT,32.00" L

Pulley Drive 32.00" L

1шт.

26

A22144

X

HOSE - pressure (48") Use A24386 when stock is depleted

1шт.

26

A24386

HOSE

- pressure (51")

1шт.

27

A22143

HOSE

- return (46") Use A24385 when stock is depleted

1шт.

27

A24385

HOSE

- return (50")

1шт.

28

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - return hose

1шт.

29

A22926

CLAMP

- hose (strap type)

1шт.
