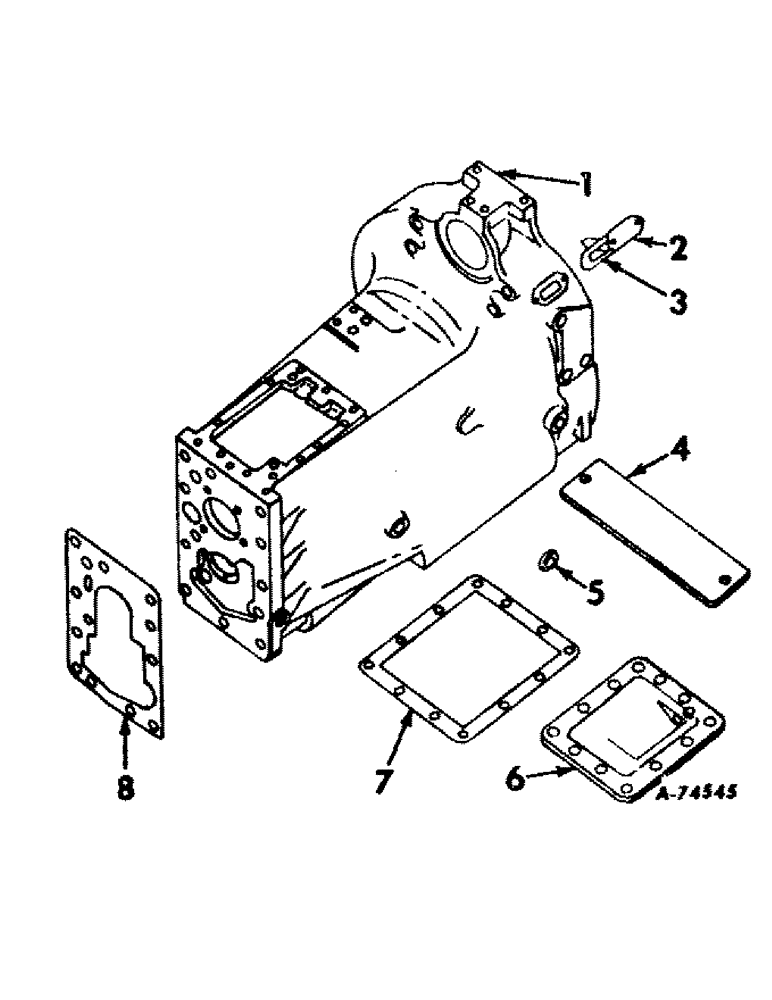

Запчасти Case IH 826 (07-19) - DRIVE TRAIN, CLUTCH HOUSING AND COVERS, GEAR DRIVE TRACTORS (04) - Drive Train

1

380066R92

HOUSING ASSY, clutch, composed of (6) cork 104942, (1) housing w/tubes (NSS) 388718R2, (1) plug 444788, (4) plug 1017956R1, (1) plug 1017957R1, (1) seat 981611R1

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto sq-soc. pipe

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 hex-hd. cap

2шт.

TC132

CATALOG REVISION

SCREW, 5/8-11 x 2-1/4 hex-hd. cap, 8 used on Farmall tractors, 10 used on International tractors

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1-4 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , 8 used on Farmall tractors, 10 used on International tractors 5/8"

1шт.

2

380073R1

COVER, engine timing opening

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

380072R1

POINTER, engine timing

1шт.

4

380068R1

BAR

COVER, clutch compartment

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

5

381611R1

SEAT

valve

1шт.

6

384077R11

COVER

W/PLUG, clutch housing bottom

1шт.

103735

HOUSING

PIN, 1/4 x 1/2 chamfered straight

1шт.

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 auto sq-soc. pipe

1шт.

NLS

NO LONGER SERVICED

12шт.

6

380069R1

COVER, clutch housing bottom rear, tractors with over-center clutch

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

12шт.

7

384078R1

GASKET

GASJET, clutch housing bottom cover

1шт.

8

380067R1

GASKET

clutch housing

1шт.

375362R1

PIN,12.69mm OD x 34.8mm L

rear engine support dowel, 1/2 x 1-3/8

2шт.
