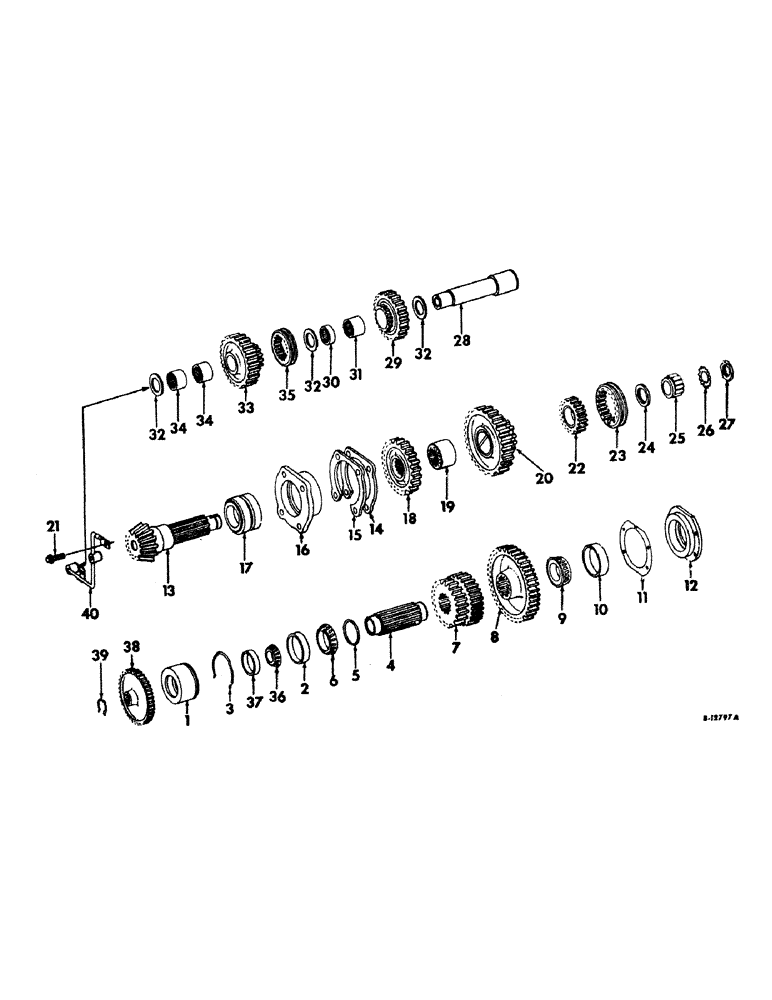

Запчасти Case IH 826 (07-18) - DRIVE TRAIN, RANGE TRANSMISSION, IN REAR FRAME, GEAR DRIVE TRACTORS (04) - Drive Train

1

528695R1

CAGE

ASSY, countershaft rear brg

1шт.

2

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, countershaft cup

1шт.

3

384340R1

RING, SNAP

RING, brg. cage rear retaining

1шт.

4

528680R2

SHAFT

COUNTERSHAFT

1шт.

5

583564R1

SNAP RING,#250, 2.356, Ext

RING, countershaft snap

1шт.

6

625742C91

BEARING

ASSY, countershaft cone

1шт.

7

528681R1

GEAR

lo drive, 28T, 33T

1шт.

8

406028R1

GEAR

constant mesh, 50T

1шт.

9

625742C91

BEARING

ASSY, countershaft front cone

1шт.

10

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, countershaft front cup

1шт.

11

380280R1

SHIM

countershaft brg.

2шт.

12

528682R1

CAGE

countershaft front brg.

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

13

395828R91

SET

BEVEL GEARS, matched set, consists of (1) gear 388916R1 (NSS), (1) shaft 395013R1 (NSS)

1шт.

13

380160R1

GEAR

SHAFT, transmission main and drive bevel pinion, 16T, Farmall hi-clear tractors

1шт.

14

380283R2

SHIM

main shaft brg. .004

1шт.

15

380284R2

SHIM

main shaft brg., .007 (or as required)

2шт.

16

380285R1

CAGE

main shaft brg.

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

17

ST2127

BEARING ASSY,63.5mm ID x 112.71mm OD x 68.15mm W

BEARING, main shaft rear

1шт.

17

ST2126

TAPERED BEARING,2.5" ID x 4.4375" OD x 1.1875"

BEARING, main shaft rear, Farmall hi-clear tractors

1шт.

18

380288R1

GEAR

reverse driven, 35T

1шт.

19

380289R1

CARRIER

hi-lo driven gear

1шт.

20

528683R11

GEAR

ASSY, hi-low driven, 45T

1шт.

21

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

lub tube mounting bracket upper

1шт.

21

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

Lub tube mtg. bracket lower Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

396323R1

WASHER

17/32 x 7/8 x 16 ga.

3шт.

22

533927R1

CARRIER

shift collar

1шт.

23

393521R1

COLLAR

hi-lo shift

1шт.

24

380294R1

SPACER

main shaft

1шт.

25

391897R91

BEARING ASSY,40mm ID x 77.62mm OD x 30mm W

main shaft front

1шт.

25

380295R91

BEARING, ROLLER, CYL,40mm ID x 69.58mm OD x 30.16mm W

main shaft front, hi-clear tractors without torque amplifier

1шт.

26

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

main shaft lock

1шт.

27

359082R2

NUT

main shaft

1шт.

28

380296R11

SHAFT

ASSY, reverse idler

1шт.

29

393523R1

GEAR

reverse idler, 30T

1шт.

30

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING, idler gear rear

1шт.

31

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, idler gear front

1шт.

32

380300R1

THRUST WASHER,41.66mm ID x 60.96mm OD x 2.54mm Thk

idler gear thrust

3шт.

33

393525R1

GEAR

reverse drive, 34T

1шт.

34

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, drive gear

2шт.

35

393524R1

COLLAR

forward reverse shift

1шт.

36

ST2135

BEARING ASSY,33.34mm ID x 19.58mm W

IPTO driven shaft cone

1шт.

37

ST991

BEARING CUP

BEARING, IPTO driven shaft cup

1шт.

38

380319R1

PINION

GEAR, pump drive, 61T

1шт.

39

384341R1

RING, SNAP

RING, pump drive gear retaining

1шт.

40

529561R2

TUBE

ASSY, pressure lub

1шт.

372703R4

FLUID

hy-tran, quart can

1шт.

372704R4

TRANSMISSION OIL

FLUID, hy-tran, gallon can

1шт.

372705R4

FLUID

hy-tran, five gallon can

1шт.

407024R4

FLUID

hy-tran, fifteen gallon can

1шт.
