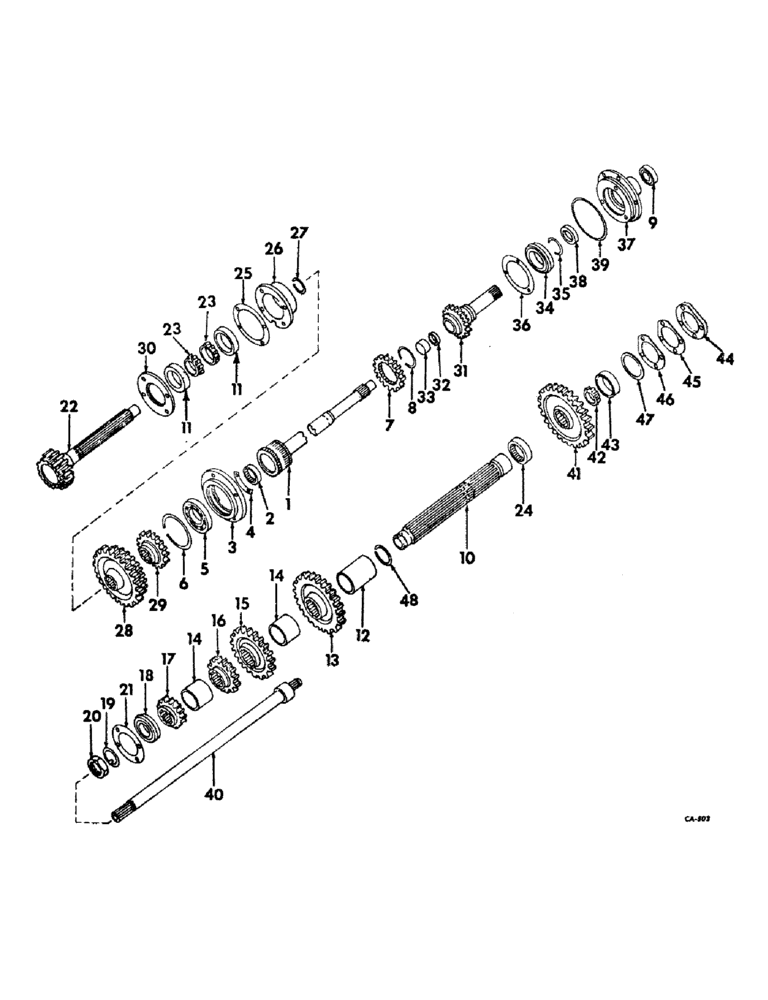

Запчасти Case IH 826 (07-14) - DRIVE TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING, GEAR DRIVE TRACTORS (04) - Drive Train

1

380076R3

SHAFT

transmission drive, 26T

1шт.

2

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

main shaft front

1шт.

3

380080R1

CAGE

constant mesh drive gear brg

1шт.

4

380081R1

PLATE

constant mesh drive gear brg age lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd. cap

4шт.

5

ST697

BALL BEARING,75 mm ID x 130 mm OD x 22 mm

BEARING, constant mesh drive gear

1шт.

6

392683R1

RING

constant mesh drive brg. cage int. snap

1шт.

7

528670R1

GEAR WHEEL

GEAR, constant mesh drive, 26T

1шт.

8

381330R1

RING

constant mesh drive gear ext. snap

1шт.

9

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

clutch shaft pilot

1шт.

9

524598R91GV

BEARING

Value, Ball Bearing

1шт.

10

380082R2

SHAFT

COUNTERSHAFT

1шт.

11

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

BEARING, main shaft rear cup

2шт.

11

NSS

NOT SOLD SEPARAT

BEARING, main shaft rear cup, Farmall hi-clear tractors, order bearing assy, 384169R91

2шт.

12

384091R1

BUSHING

SPACER, constant mesh gear, long, for tractors w/torque amplifier

1шт.

13

528673R1

GEAR

constant mesh, 47T

1шт.

14

380126R1

BUSHING

SPACER, countershaft gears

2шт.

15

528671R1

GEAR

3rd speed driving, 42T

1шт.

16

528672R1

GEAR

2nd speed driving, 32T

1шт.

17

406473R1

GEAR

1st speed driving, 27T

1шт.

18

ST345A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, countershaft rear

1шт.

19

380091R2

THRUST WASHER,59.51mm ID x 82.55mm OD x 1.52mm Thk

countershaft brg. lock nut

1шт.

20

380092R1

NUT

countershaft brg. lock

1шт.

21

380093R1

RETAINER

countershaft rear brg.

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

529282R1

SHAFT

main, 22 and 23 teeth

1шт.

22

529434R1

PINION

SHAFT, main, 22 and 23 teeth, all tractors except hi-clear with torque amplifier

1шт.

22

382350R2

SHAFT

main, 22 and 23 teeth, Farmall hi-clear tractors with torque amplifier

1шт.

22

380094R2

SHAFT

main, 22 and 23 teeth, Farmall hi-clear tractors without torque amplifier

1шт.

23

529207R91

BEARING ASSY,54.99mm ID x 29mm W

ASSY, main shaft rear cone

2шт.

23

384169R91

BEARING ASSY,55.58mm ID x 96.84mm OD x 26.26mm W

ASSY, main shaft rear w/cup, Farmall hi-clear tractors

2шт.

24

384114R91

NEEDLE BEARING

BERAING, countershaft front needle

1шт.

25

380095R1

SHIM

main shaft rear bearing

1шт.

26

529283R1

CAGE

main shaft rear brg

1шт.

26

384089R1

CAGE

main shaft rear brg., Farmall hi-clear tractors

1шт.

27

380097R1

RING

main shaft bearing snap

1шт.

28

528674R1

GEAR

1st and 2nd speed sliding, 41 and 46T

1шт.

29

528675R1

GEAR

GERA, 3rd and 4th speed sliding, 31T

1шт.

30

380098R2

RETAINER

main shaft rear bearing

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

31

528676R1

SHAFT

IPTO drive

1шт.

32

535208R91

SEAL

PTO drive shaft oil

1шт.

33

384185R1

BUSHING,38.18mm ID x 44.58mm OD x 12.7mm L

PTO drive shaft, tractors w/o torque amplifier

1шт.

34

ST343A

BALL BEARING,55mm ID x 100mm OD x 21mm W

BEARING, drive shaft

1шт.

35

384337R1

RING

PTO shaft brg. snap

1шт.

36

384184R1

RETAINER

PTO shaft brg.

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd. nylok

3шт.

37

384079R2

CAGE

PTO drive shaft brg.

1шт.

37

384147R2

CAGE, PTO drive shaft brg., tractors with over-center clutch and without torque amplifier

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

5шт.

37

384135R2

CAGE, PTO drive shaft brg., tractors with over-center clutch and torque amplifier

1шт.

37

380101R2

CAGE

PTO drive shaft brg., tractors with torque amplifier and without over-center clutch

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

38

535209R91

OIL SEAL

PTO shaft brg cage oil

1шт.

39

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

7-1/2 x 7-3/4 x 1/8, PTO shaft bearing cage sealing

1шт.

40

380103R21

PTO

SHAFT ASSY, IPTO driven

1шт.

41

528677R1

GEAR

driven, 58T

1шт.

42

G15215

ROLLER BEARING

BEARING ASSY, PTO driven shaft front cone

1шт.

43

619387R1

BEARING CUP

BEARING, PTO driven shaft front roller cup

1шт.

44

380107R1

RETAINER

PTO driven shaft brg.

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd. nylok

4шт.

45

384382R1

SHIM

PTO shaft brg retainer, HV

1шт.

46

384106R1

SHIM

PTO driven shaft brg retainer

3шт.

47

384103R1

SEAL RETAINER

SEAL, PTO front brg retainer

1шт.

48

357035R1

RING

constant mesh gear snap

1шт.

372703R4

FLUID

hy-tran, quart can

1шт.

372704R4

TRANSMISSION OIL

FLUID, hy-tran, gallon can

1шт.

372705R4

FLUID

hy-tran, five gallon can

1шт.

407024R4

FLUID

hy-tran, fifteen gallon can

1шт.
