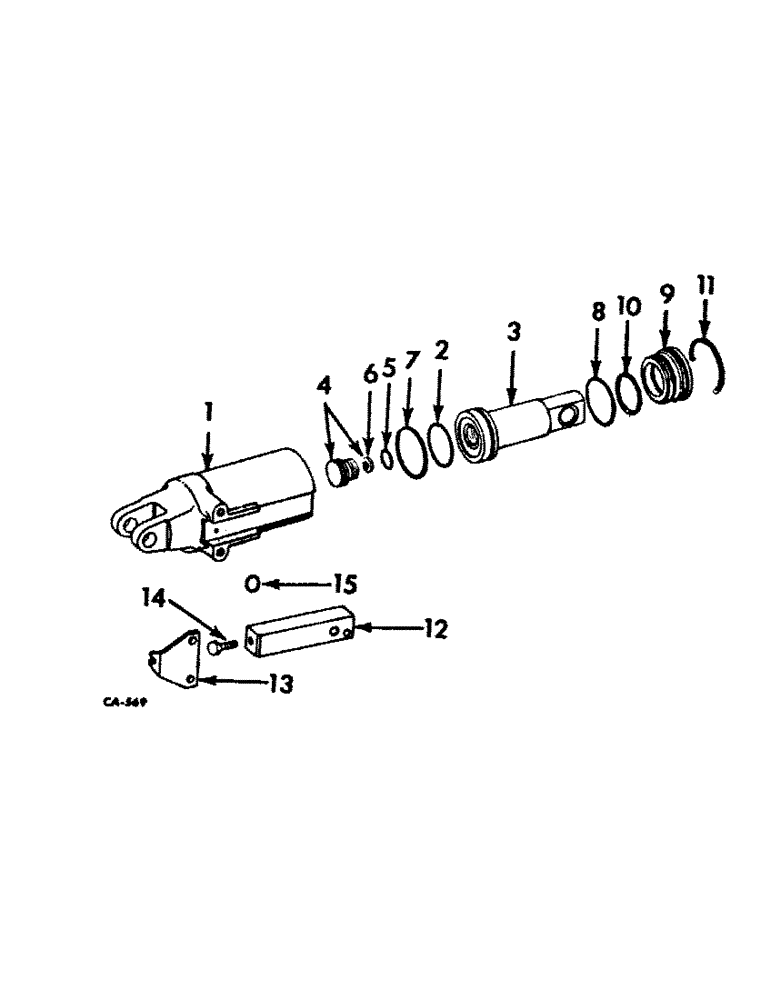

Запчасти Case IH 826 (07-10[1]) - DRIVE TRAIN, PUMP SERVO CYLINDER, HYDROSTATIC DRIVE TRACTORS (04) - Drive Train

406362R91

SEAL KIT

PACKAGE, motor servo cylinder o-ring and seal service, consists of (1) o-ring 295204R1, (1) o-ring 327110R1, (1) o-ring 364885R1, (1) o-ring 383017R1, (1) ring 387373R1, (1) ring 406361R1

1шт.

1

406349R1

BODY

pump servo cyl.

1шт.

2

379457R1

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

2-13/16 x 2-3/8 x 3/32

1шт.

3

406350R1

PLUNGER

PISTON, pump cyl.

1шт.

4

528777R11

PLUG

ASSY, fixed orifice

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

6

529376R1

STRAINER ELEMENT

STRAINER, orifice

1шт.

7

406353R1

RING

piston sealing

1шт.

8

22280R1

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2-7/16 x 2-5/8 x 3/32

1шт.

9

406351R1

GUIDE

piston pump

1шт.

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1-13/16 x 2 x 3/32

1шт.

10

406352R1

RING

guide sealing inner

1шт.

11

396116R1

ELECTRICAL WIRE

RING, retaining

1шт.

12

406354R1

NO LONGER SERVICED

BLOCK, variable orifice adj

1шт.

13

396107R1

SUPPORT

block adj bracket

1шт.

14

396108R2

BOLT,Hex, 5/16" - 24 x 1.125"

block adj.

1шт.

179814

SPACER

2шт.

15

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk, Variable orifice adj. block

1шт.

406355R91

STRIPPER PACKAGE

PACKAGE, pump servo cylinder o-ring and seal service, consists of (1) o-ring 22280R1, (1) o-ring 364108R1, (1) o-ring 364885R1, (1) o-ring 379547R1, (1) o-ring 392385R1, (1) ring 396116R1, (1) ring 406352R1, (1) ring 406353R1

1шт.
