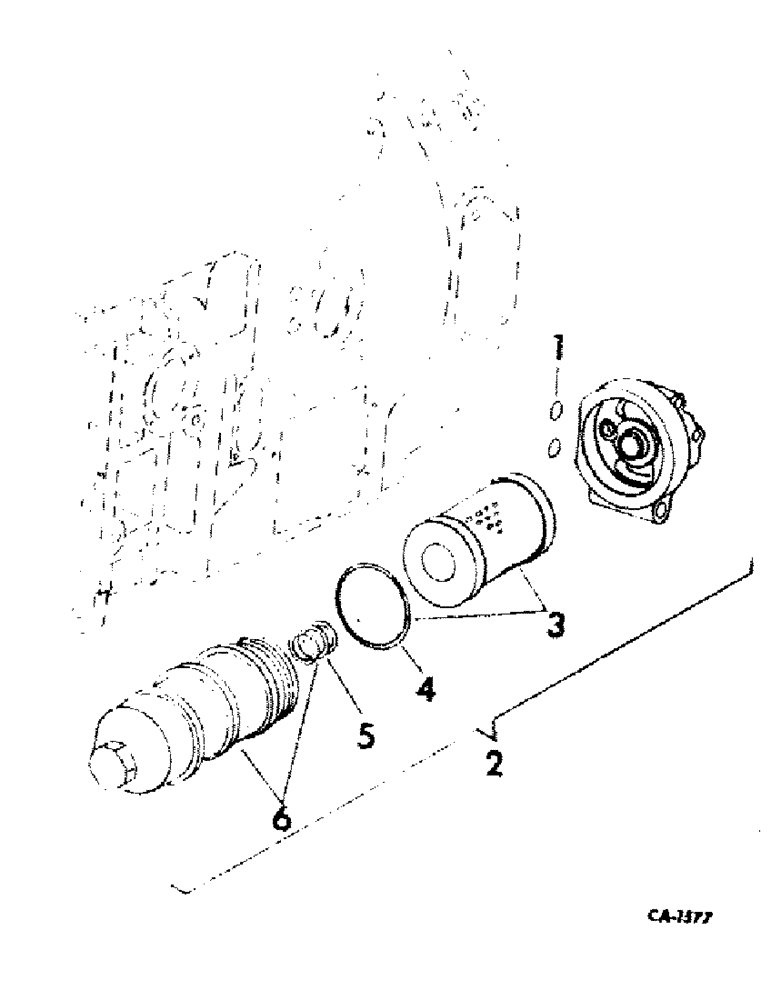

Запчасти Case IH 826 (07-06) - DRIVE TRAIN, HYDROSTATIC DRIVE OIL FILTER (04) - Drive Train

1

254954R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

1-1/16 x 1-5/16 x 1/8, filter base

2шт.

2

406663R91

FILTER

ASSY, oil, less ref. no. 1

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd. cap

2шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 3/8-16 x 3-3/4 hex-hd. cap

1шт.

21872R91

WASHER, 3/8 x 5/8 x 16 ga.

3шт.

3

406705R91

CARTRIDGE

PACKAGE, oil filter cartridge and o-ring service

1шт.

4

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

3-1/2 x 3-11/16 x 3/32, filter case

1шт.

5

527380R1

SPRING

1шт.

6

532174R1

NO LONGER SERVICED

SUMP ASSY.

1шт.
