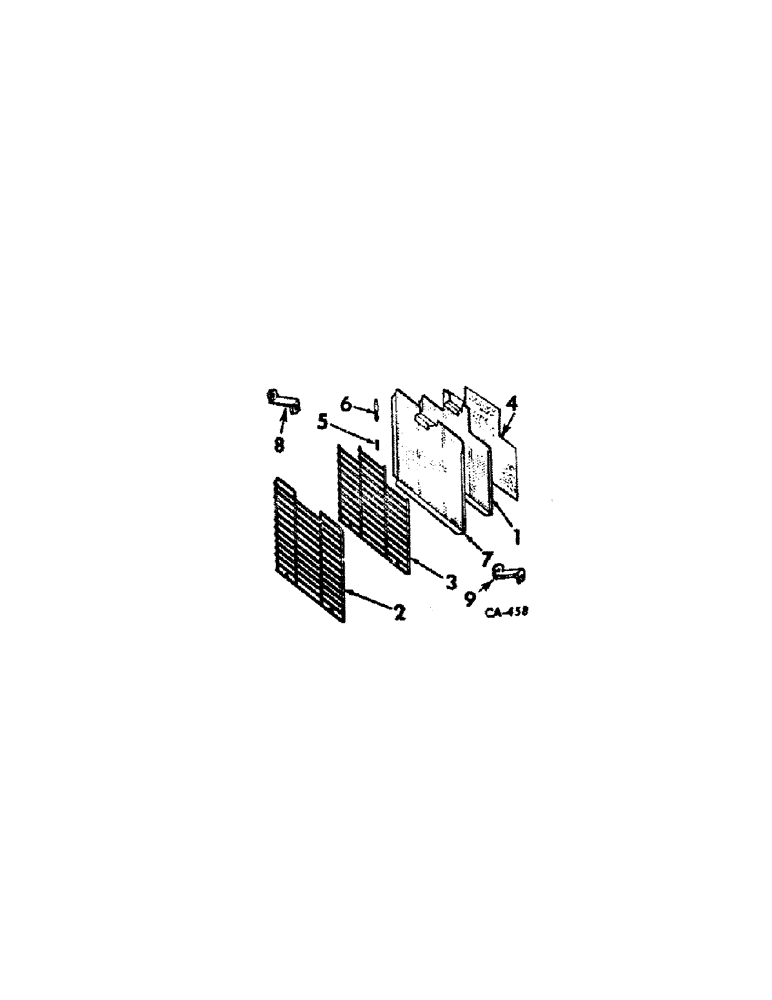

Запчасти Case IH 826 (06-06) - COOLING, RADIATOR GRILL Cooling

1

405972R1

SCREEN, grill, International tractors

1шт.

385631R1

SEAL

grill screen air

1шт.

2

405966R1

GRILL ASSY, Farmall tractors and International tractors w/cab

1шт.

399598R1

SPACER, grille support, International tractors w/cab

1шт.

3

405970R1

GRILL ASSY, International tractors

1шт.

4

528239R2

GRILL ASSY, radiator guard, International 2826 tractors

1шт.

386451R1

SCREW,Hex Wshr Hd, 5/16" - 18 x 1"

washer-hd. cap

4шт.

5

398639R1

SPRING

grill latch pin

2шт.

19443R1

PIN,5/32" x 5/8", Coiled

2шт.

6

398638R1

PIN

grill latch

2шт.

159992

SCREW, 10-32 x 3/16 C-Z cr-rec. pan-hd.

2шт.

7

405969R1

SCREEN, grill, Farmall tractors and International tractors w/cab

1шт.

385631R1

SEAL

grill screen air

1шт.

8

384427R11

BRACKEY ASSY, radiator guard grill RH, International 2826 gear drive tractors

1шт.

8

533038R1

BRACKET ASSY, radiator guard grill RH, International 2826 hydrostatic drive tractors

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

9

384428R11

BRACKET ASSY, radiator guard grill LH, International 2826 gear drive tractors

1шт.

9

533037R1

BRACKET ASSY, radiator guard grill LH , International 2826 hydrostatic drive tractors

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.
