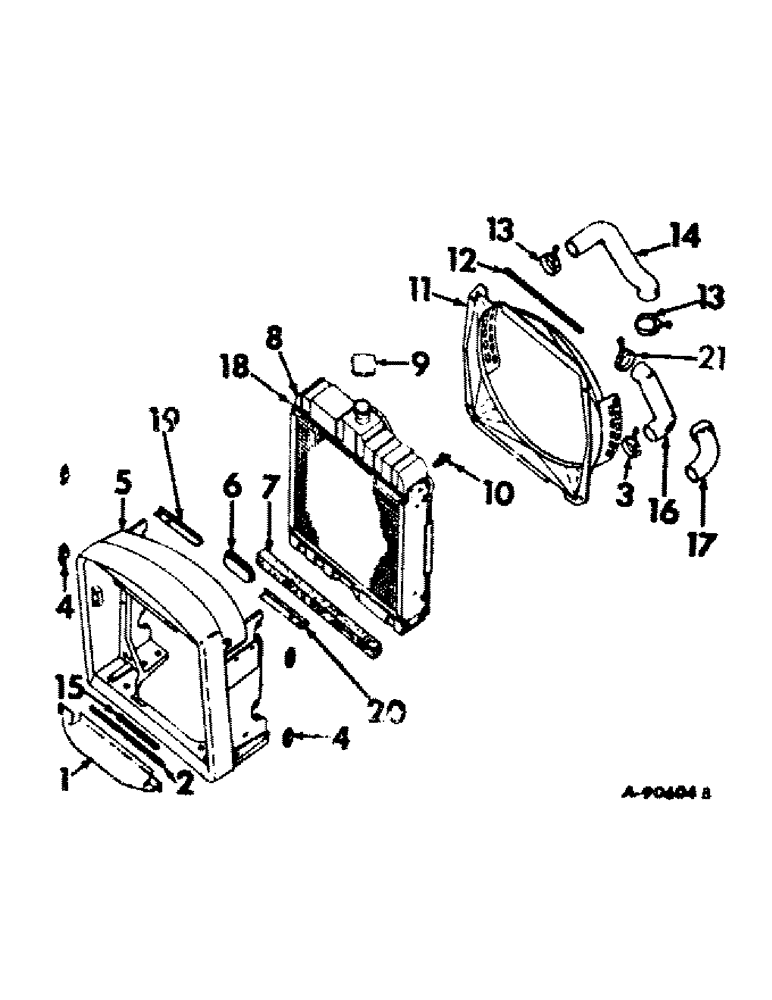

Запчасти Case IH 826 (06-05) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

383407R1

BAFFLE, radiator air, International tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

2

385631R1

SEAL

radiator air, International tractors

1шт.

3

81448H

EXCITER

CLAMP, radiator outlet hose lower

1шт.

4

378710R91

PLATE ASSY.

BRACKET, radiation mounting plate

4шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd. cap

4шт.

5

405965R1

SUPPORT, radiator

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd. cap, 5 for Farmall tractors, 6 for International tractors

1шт.

384317R1

SCREW, 12-PT cap, Farmall tractors

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

6

383788R1

PLUG

radiator support

1шт.

7

383839R1

GASKET

GASKET, radiator baffle, Farmall tractors, International tractors w/cab

1шт.

8

386860R91

RADIATOR

ASSY, less filler cap, carbureted engine tractors

1шт.

8

405998R1

RADIATOR ASSY, less filler cap, diesel engine tractors

1шт.

9

402281R1

CYLINDER END CAP

CAP, radiator pressure

1шт.

10

614201R1

VALVE

COCK, radiator drain

1шт.

614200R1

ADAPTER

EXTENSION, drain cock, diesel engine tractors

1шт.

11

406098R1

SHROUD ASSY fan, carbureted engine tractors

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

11

406119R1

SHROUD ASSY, fan, diesel engine tractors

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

3шт.

217902

SCREW, 1/4-20 x 3/8 hex-soc-hd. cap

1шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga.

4шт.

12

391934R1

SEAL, fan housing

1шт.

13

81448H

EXCITER

CLAMP, radiator inlet hose

2шт.

14

380379R1

RADIATOR HOSE,50.80 mm ID x 320.50 mm, SAE 20R4, CLASS D1, SAE J20R4

Inlet, Carbureted engine tractors 50.80 mm ID x 320.50 mm, SAE 20R4, CLASS D1, SAE J20R4

1шт.

14

405964R1

RADIATOR HOSE,50.80 mm ID x 214.40 mm, SAE 20R4, CLASS R, GRADE 1

Inlet, Diesel engine tractors 50.80 mm ID x 214.40 mm, SAE 20R4, CLASS R, GRADE 1

1шт.

15

389600R1

STRIP

SEAL, radiator air

1шт.

16

378704R1

RADIATOR HOSE,2.00" ID x 10.50", SAE 20R4, CLASS R, GRADE 1

Outlet, Carbureted engine tractors 2.00" ID x 10.50", SAE 20R4, CLASS R, GRADE 1

1шт.

17

396355R1

RADIATOR HOSE,2.00" ID x 10.30", SAE 20 R4 CLASS R, GRADE 1

Outlet, Diesel engine tractors 2.00" ID x 10.30", SAE 20 R4 CLASS R, GRADE 1

1шт.

18

385631R1

SEAL

radiator air

1шт.

19

398629R1

BAFFLE, grill LH air, Farmall tractors, International tractors w/cab

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

SCREW, 1/4-20 x 1 hex-hd. cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

398630R1

BAFFLE, grill RH air, Farmall tractors, International tractors w/cab

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

SCREW, 1/4-20 x 1 hex-hd. cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

81448H

EXCITER

CLAMP, radiator outlet hose upper, carbureted engine tractors

1шт.

21

46364H

CLAMP

radiator outlet hose upper, diesel engine tractors

1шт.
