Запчасти Case IH 826 (06-04) - COOLING, FAN BLADES, BELT AND CONNECTIONS Cooling

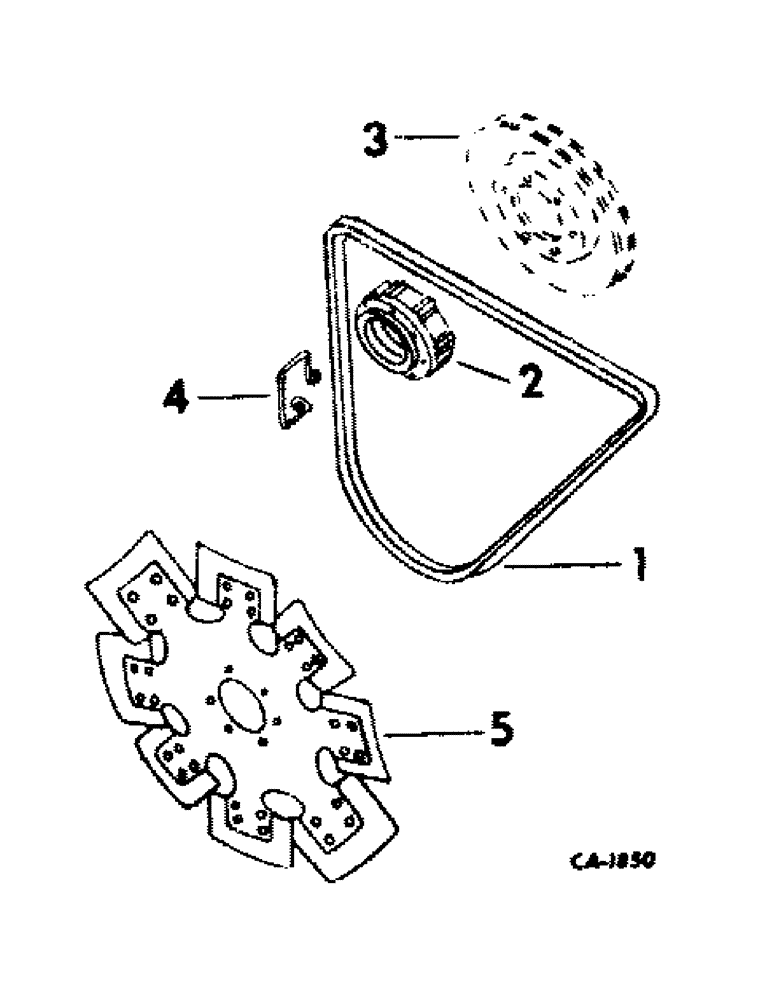

Схема запчастей Case IH 826 - (06-04) - COOLING, FAN BLADES, BELT AND CONNECTIONS Cooling
1
2
5
3
4

Артикул

Название

Примечание

Количество

1

403617R1

V-BELT,0.50" W

Water pump and alternator, Carbureted engine tractors 0.50" W

1шт.

1

530076R1

V-BELT,0.50" W x 63.50" L

Water pump and alternator, Diesel engine tractors 0.50" W x 63.50" L

1шт.

2

396542R1

HUB

fan spacer, diesel engine tractors

1шт.

2

369289R1

SPACER, fan, carbureted engine tractors

1шт.

3

NSS

NOT SOLD SEPARAT

PULLEY, water pump, refer to the water pump section in specific engine catalog

1шт.

4

531977R1

STABILIZER, belt, diesel engine tractors

1шт.

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

2шт.

147697

WASHER

5/16 x 7/8 x .065

2шт.

5

530283R1

FAN ASSY, blade, carbureted engine tractors

1шт.

179807

SCREW,Hex, 1/4" - 20 x 2 1/2"

1/4-20 x 2-1/2 hex-hd. cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

530282R1

FAN

ASSY, blade, diesel engine tractors

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

Выбрано товаров: 14
