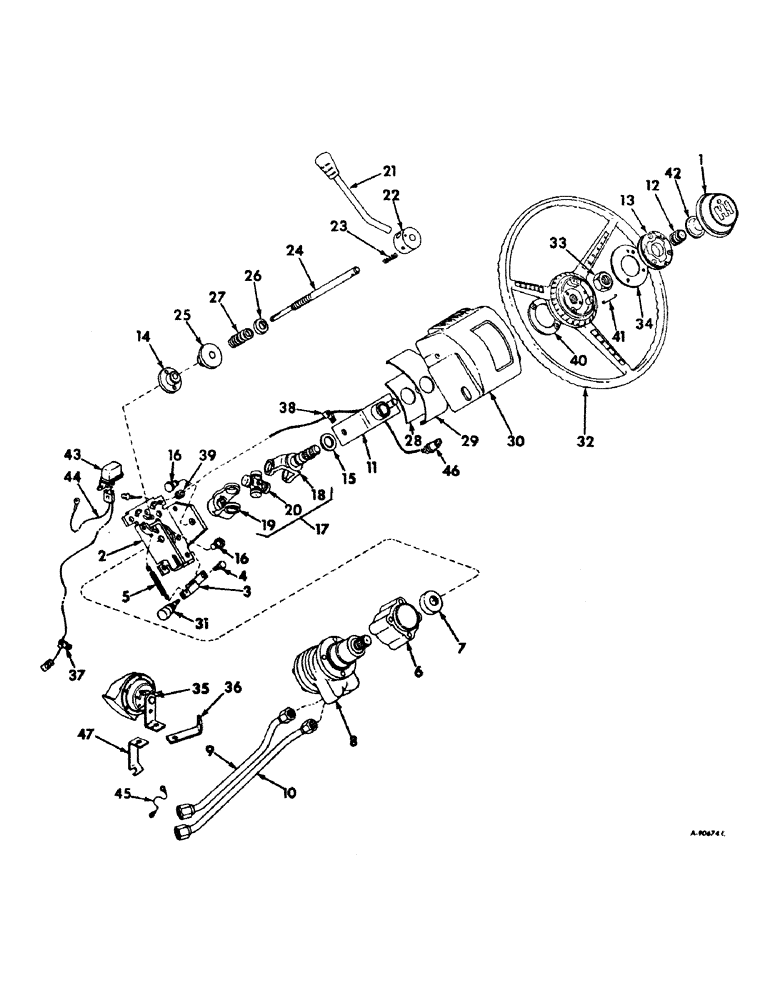

Запчасти Case IH 826 (10-20) - HYDRAULICS, TILT STEERING WHEEL (07) - HYDRAULICS

NSS

NOT SOLD SEPARAT

SERVICE PARTS FOR TRACTORS EQUIPPED WITH TILT STEERING WHEEL, composed of ref. nos. 1 thru 34

1шт.

NSS

NOT SOLD SEPARAT

SERVICE PARTS FOR TRACTORS EQUIPPED WITH ELECTRIC HORN, composed of ref. nos. 35 thru 47

1шт.

1

400220R1

BUTTON

AND INSERT ASSY, horn

1шт.

2

400182R3

SUPPORT, steering wheel lower

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/8-18 x 3/4 C-Z hex-hd. cap

3шт.

3

400183R1

SUPPORT ASSY, release lever

1шт.

4

400862R1

BOLT,Hex, 5/16" - 18 x 0.85"

shoulder

1шт.

5

400185R1

SPRING

release lever

1шт.

6

400186R1

HUB, power steering hand pump

1шт.

7

226032R1

SEAL

hand pump dust

1шт.

8

400187R92

PUMP

ASSY, power steering hand, Farmall tractors, for components see list of parts under details of hydrostatic steering hand pump, this section

1шт.

8

400188R92

PUMP ASSY, power steering hand, International tractors, for components see list of parts under details of hydrostatic power steering hand pump, this section

1шт.

180112

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

SCREW, 5/16-18 x 2-3/4 C-Z hex-hd. cap

3шт.

404178R1

SCREW, steering wheel support

1шт.

9

400189R3

TUBE

ASSY, rear valve port to left port hand pump upper section, gear drive tractors

1шт.

9

528206R1

TUBE ASSY, rear valve port to left port hand pump upper section, hydrostatic drive tractors

1шт.

10

400191R3

TUBE

ASSY, front valve port to right port hand pump upper section, hydrostatic drive tractors

1шт.

11

400193R91

SUPPORT

AND BUSHING ASSY, upper

1шт.

12

400396R1

SPRING

steering wheel horn button

1шт.

13

400395R1

PLATE

ASSY, base

1шт.

162906

SCREW, no. 10 x 5/8 slt-rd-hd. type B tapping C-Z

3шт.

14

398283R1

INSERT, governor control rod

1шт.

19955R1

PIN,1/4" x 1/2", Coiled

1шт.

15

403472R1

SPACER

tilt steering wheel .015, or as required

2шт.

15

403473R1

SPACER

tilt steering wheel .030, or as required

1шт.

16

400200R2

PIVOT PIN

PIN, upper shaft support pivot

2шт.

376787R1

WASHER

X-type

2шт.

17

400201R91

JOINT

ASSY, tilt wheel shaft and yoke

1шт.

18

400202R1

YOKE

ASSY, tilt wheel shaft

1шт.

19

400205R1

YOKE

fitting

1шт.

20

150635R92

SPIDER

BEARING AND SPIDER ASSY

1шт.

21

400206R1

HANDLE ASSY, governor control

1шт.

22

406396R1

HUB, governor control handle

1шт.

618638R1

PIN,3/16" x 1 1/8", Coiled

3/16" x 1-1/8", coiled

1шт.

23

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

24

404246R1

SHAFT

governor control upper

1шт.

21492R1

PIN

3/16 x 1-5/8 hv coiled spring

1шт.

25

403279R1

RETAINER ASSY, governor control friction

1шт.

382816R1

SET SCREW

1/4-20 x 3/8 hex-soc-hd. cone pt. set

1шт.

26

370628R1

RETAINER

RETAINER, governor control spring

1шт.

27

371603R1

SPRING, touch control friction

1шт.

28

400211R1

SHIM, shield back-up

1шт.

29

400212R1

SHIELD

tilt wheel

1шт.

30

400213R1

COVER

tilt wheel

1шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

3шт.

31

400214R2

GRIP

ASSY, release lever

1шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .048 C-Z

1шт.

32

400217R1

WHEEL (STEERING)

WHEEL, steering

1шт.

33

400219R1

NUT, steering wheel

1шт.

34

402434R1

SEAL, horn button

1шт.

35

9000239

HORN

ASSY, 166166R91

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

36

396527R1

BRACE, horn assy, carbureted tractors

1шт.

36

396528R1

BRACE, horn assy, diesel tractors

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

1шт.

113913

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 5/16-18 x 7/8 slt-f-hd. mach

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

615031R1

WASHER

3/8 x 7/8 x .083

1шт.

37

366460R1

CABLE CLIP

CLIP, horn switch to horn cable, Farmall carbureted engine tractors

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

38

400392R1

CLIP

contact roller switch cable

2шт.

109084

NUT,1/4"-20, G5

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

39

140711

GROMMET,1/4" ID x 5/8" x .188", Str Cut

rubber

1шт.

40

400393R1

PLATE, steering wheel contact roller

1шт.

125702

SCREW, 6-18 x 1/2 slt-f-hd. tap

2шт.

41

400394R1

SPRING

base plate to contact rate

1шт.

42

68025H

CUP

contact

1шт.

43

1116920

RELAY

horn, Delco-Remy

1шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

44

405243R1

CABLE ASSY, horn relay

1шт.

45

405219R1

CABLE

ASSY, Serial Range: horn-ground

1шт.

46

400391R1

SWITCH

contact roller

1шт.

47

396529R1

BRACE, horn support bracket

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.
