Запчасти Case IH 826 (10-18) - HYDRAULICS, HYDRAULIC CYLINDER, HYDRAULIC SEAT ATTACHMENT (07) - HYDRAULICS

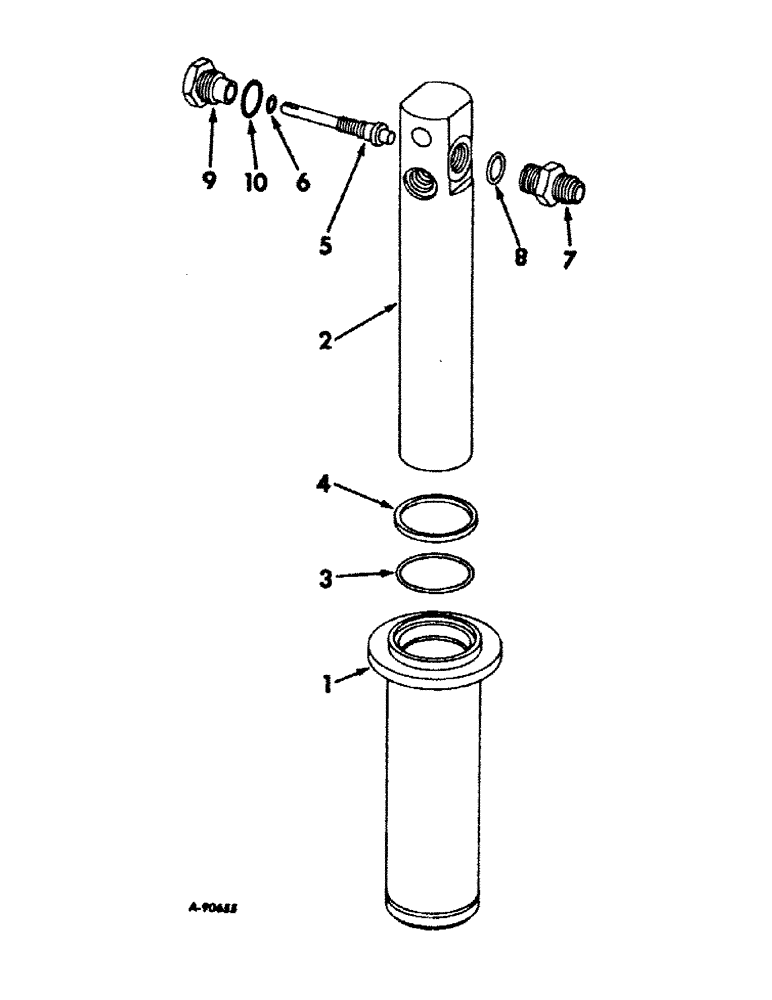

Схема запчастей Case IH 826 - (10-18) - HYDRAULICS, HYDRAULIC CYLINDER, HYDRAULIC SEAT ATTACHMENT (07) - HYDRAULICS
6
1
5
8
3
7
2
10
4
9

Артикул

Название

Примечание

Количество

399093R91

HYDRAULIC CYLINDER

CYLINDER ASSY, S.A. ram hyd.

1шт.

1

399309R1

BODY

ASSY, hyd. cyl.

1шт.

2

399313R1

ROD

ASSSY, hyd. cyl.

1шт.

3

399316R1

GASKET

O-RING, 1-3/4 x 2-1/8 x 3/16, hydraulic cylinder body

1шт.

4

389390R1

WIPER SEAL

WIPER, rod

1шт.

5

399317R1

ADJUSTMENT SCREW

SCREW, adjusting

1шт.

6

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk.

1шт.

7

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg. hyd. flared tube short swivel, for 1/2 tube hyd. cyl. body

1шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

1шт.

9

399318R1

RETAINER

adjusting screw

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

Выбрано товаров: 11
