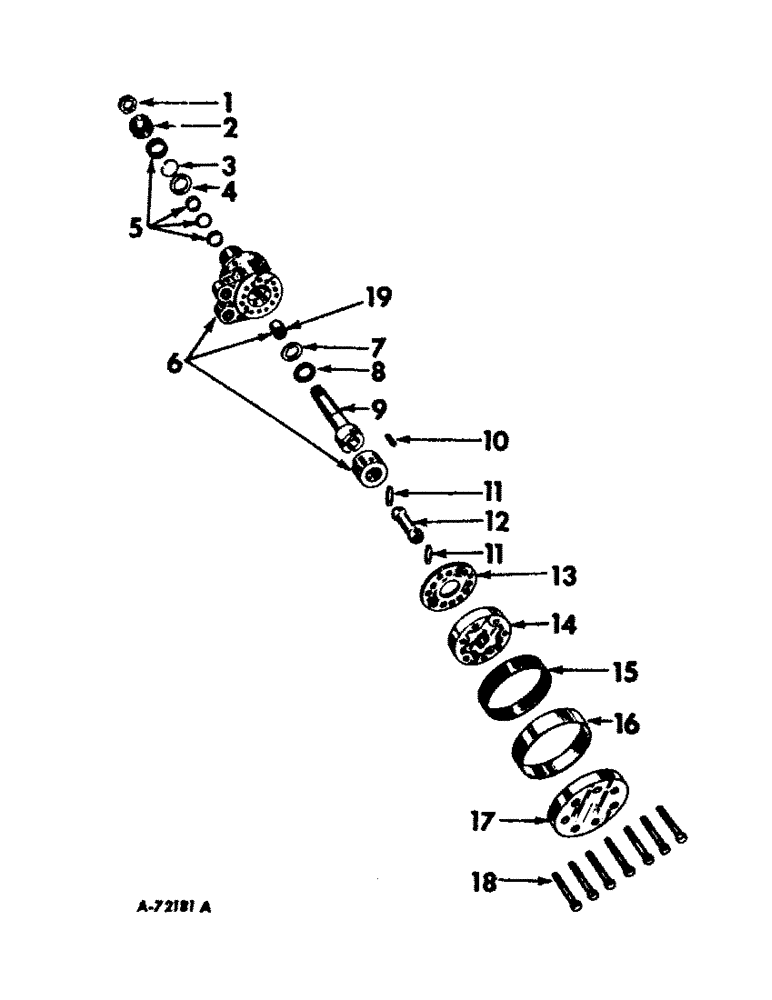

Запчасти Case IH 826 (10-14) - HYDRAULICS, HYDROSTATIC POWER STEERING HAND PUMP (07) - HYDRAULICS

382579R93

PUMP

ASSY, power steering hand, Farmall tractors without tilt steering

1шт.

400187R92

PUMP

ASSY, power steering hand, Farmall tractors w/tilt steering

1шт.

378578R94

HYDRAULIC STEERING

PUMP ASSY, power steering hand, International tractors without tilt steering

1шт.

400188R92

PUMP ASSY, steering hand, International tractors with tilt steering

1шт.

1

F19646

LOCK NUT,13/16"-20, Thin

NUT, coupling shaft wheel

1шт.

2

382587R1

SEAL

dust, not included in pump assy

1шт.

3

383878R1

SNAP RING,1.25, Int, #125

RING, snap, 1.25", Int, #125

1шт.

4

379786R1

WASHER

pump shaft

1шт.

5

379782R92

SERVICE KIT

PACKAGE, hydrostatic steering hand pump service

1шт.

6

379694R91

BODY

PUMP BODY AND BEARING ASSEMBLY

1шт.

7

379785R1

THRUST WASHER

RACE, needle thrust

1шт.

8

379783R91

THRUST BEARING

BEARING, needle thrust

1шт.

9

379784R1

SHAFT

coupling, used with pumps, 382579R93 and 378578 R94

1шт.

9

402981R1

SHAFT, coupling, used with pumps, 400187R92 and 400188R92

1шт.

10

379700R1

PIN

pump spool

1шт.

11

379693R1

PIN

pump link

2шт.

12

379701R1

LINK

pump

1шт.

13

396545R1

PLATE

SPACER, pump

1шт.

14

384375R3

ROTOR

SET, See Note A

1шт.

14

379697R3

ROTOR

SET, See Note B

1шт.

15

384373R1

SEAL

rotor, See Note A

1шт.

15

379781R1

BOOT

SEAL, rotor, See Note B

1шт.

16

384374R1

RETAINER

seal, See Note A

1шт.

16

379696R1

RING

RETAINER, seal, See Note B

1шт.

17

379698R1

COVER

pump end

1шт.

18

379699R1

BOLT,Spcl, Hex, 5/16" - 18 x 1 3/4", Gr 5, HT

pump end cover

7шт.

19

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, needle

1шт.

405788R91

PACKAGE

spring and vane, See Note A

1шт.

405785R91

PACKAGE, REPAIR

PACKAGE, spring and vane, See Note B

1шт.
