(10-12) - HYDRAULICS, HYDRAULIC PUMP, THOMPSON, 12 OR 17 GPM

Запчасти Case IH 826 (10-12) - HYDRAULICS, HYDRAULIC PUMP, THOMPSON, 12 OR 17 GPM (07) - HYDRAULICS

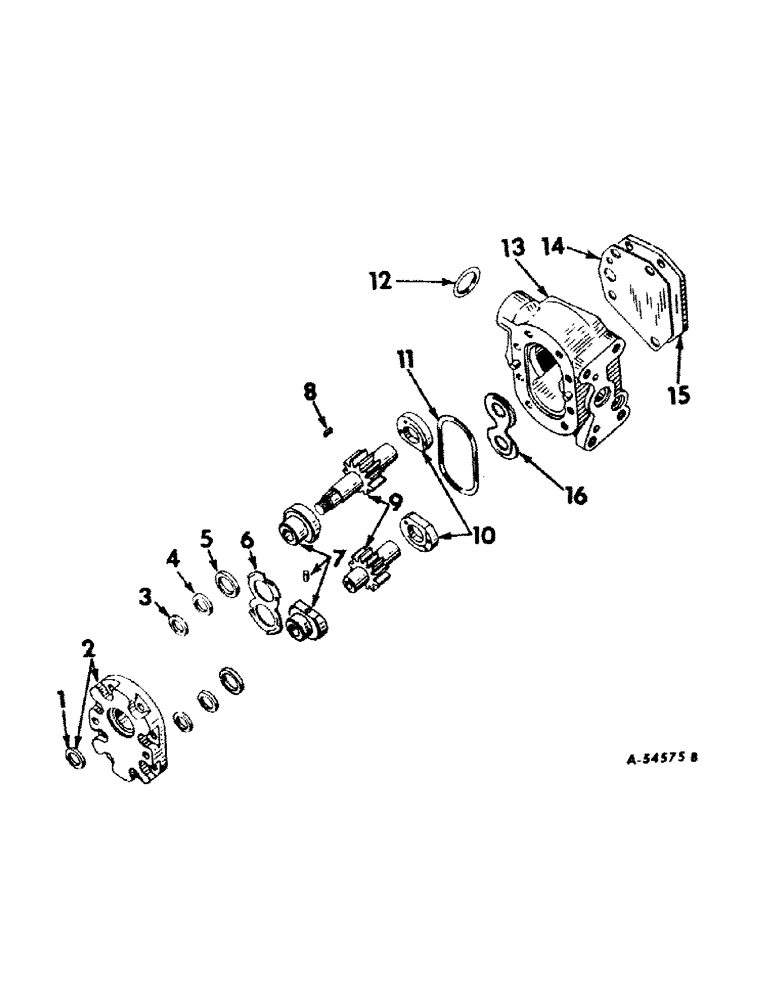

Схема запчастей Case IH 826 - (10-12) - HYDRAULICS, HYDRAULIC PUMP, THOMPSON, 12 OR 17 GPM (07) - HYDRAULICS
13
16
11
7
5
1
3
2
15
10
4
14
12
9
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

374483R96

PUMP

ASSY, 12 gpm, optional with 373961R94

1шт.

1949296C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

1949297C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

527755R91

PUMP

ASSY, hydraulic, 17 gpm, optional with 373966R94

1шт.

1

373157R91

OIL SEAL

SEAL, pump shaft oil

1шт.

2

NSS

NOT SOLD SEPARAT

COVER ASSY, pump, not serviced separately order pump assembly

1шт.

306354R2

12 PT SCREW

3/8-16 x 7/8 12 point cap

7шт.

528109R1

SCREW, 3/8-16 x 5/8 12 point cap

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER, back-up, not serviced separately order package, 371549R94

2шт.

4

NSS

NOT SOLD SEPARAT

O-RING, pressure bearing, not serviced separately order package, 371549R94

2шт.

5

374543R1

RETAINER

pressure bearing o-ring

2шт.

6

371530R1

SPRING

pressure plate

1шт.

7

NSS

NOT SOLD SEPARAT

PACKAGE, pressure bearing, not serviced separately order pump assembly

1шт.

8

370942R1

KEY

5/32 x 13/32 sq. parallel

1шт.

9

NSS

NOT SOLD SEPARAT

PACKAGE, drive and driven gear, not serviced separately order pump assembly

1шт.

10

NSS

NOT SOLD SEPARAT

PACKAGE, body bearing, not serviced separately order pump assembly

1шт.

19501R1

SCREW, 6/3 x hex-soc-hd. cap

6шт.

11

NSS

NOT SOLD SEPARAT

O-RING, pump cover, not serviced separately order package, 371549R94

1шт.

12

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, suction port

1шт.

13

NSS

NOT SOLD SEPARAT

BODY W/BEARING, pump, not serviced separately order pump assembly

1шт.

14

NSS

NOT SOLD SEPARAT

GASKET, implement pump rear cover, not serviced separately order package, 371549R94

1шт.

15

371532R1

COVER, implement pump rear

1шт.

16

383664R1

LARGE PLATE

PLATE, body wear, .06 thick, used only with pump, 384483R95

1шт.

16

528110R1

LARGE PLATE

PLATE, body wear, .10 thick, used with pumps, 384483R96 and 527755R91

1шт.

371549R94

PACKAGE

hydraulic pump o-ring and gasket

1шт.
