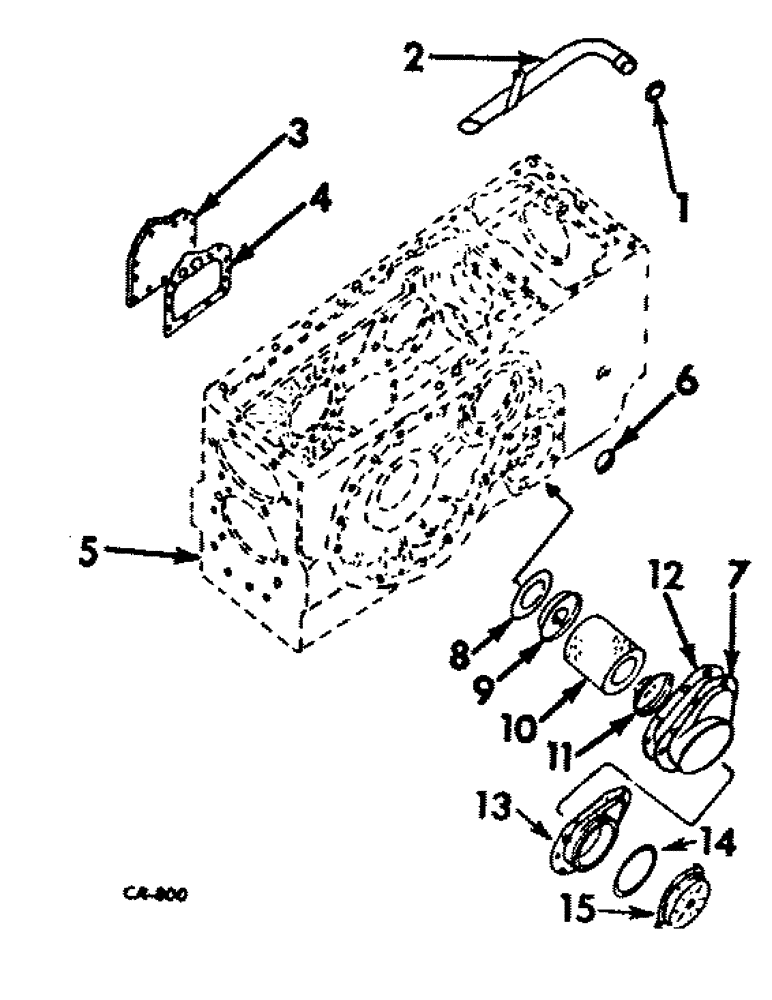

Запчасти Case IH 826 (10-06) - HYDRAULICS, REAR FRAME FILTER (07) - HYDRAULICS

1

360610R1

O-RING,1.609" ID x 0.139" Width

1-5/8 x 1-7/8 x 1/8, hydraulic filter suction tube

1шт.

2

382240R11

TUBE

ASSY, hydraulic filter suction

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

382243R1

COVER ASSY

COVER, pump operating, gear drive tractors

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

12шт.

4

382244R1

GASKET

pump opening cover, gear drive tractors

1шт.

5

NSS

NOT SOLD SEPARAT

FRAME ASSY, rear, refer to rear frame, cover and connections listing, section 7

1шт.

6

382242R1

RETAINER

hydraulic filter suction tube

1шт.

7

382256R1

COVER ASSY

COVER, oil filter, gear drive tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

8

382247R1

O-RING,5.237" ID x 0.103" Width

SEAL, hyd. filter cartridge retainer

1шт.

9

382246R11

RETAINER

hyd. filter cartridge

1шт.

10

386122R91

SERVICE KIT

PACKAGE, hyd. filter service, includes ref. nos. 8 and 12, gear drive tractors

1шт.

10

533289R91

PACKAGE

hyd. filter service, includes ref. nos. 8 and 14, hydrostatic drive tractors

1шт.

11

386121R92

VALVE

ASSY, filter relief

1шт.

12

382257R1

GASKET

oil filter cover

1шт.

13

406038R1

FUNNEL

FRAME ASSY, filter, hydrostatic drive tractors

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd. cap

8шт.

14

285253R1

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

5-1/2 x 5-3/4 x 1/8, hydrostatic drive tractors

1шт.

15

406037R1

COVER ASSY

COVER, filter frame, hydrostatic drive tractors

1шт.

406040R1

SCREW,5/16" - 18 x 1.25"

filter cover

2шт.
