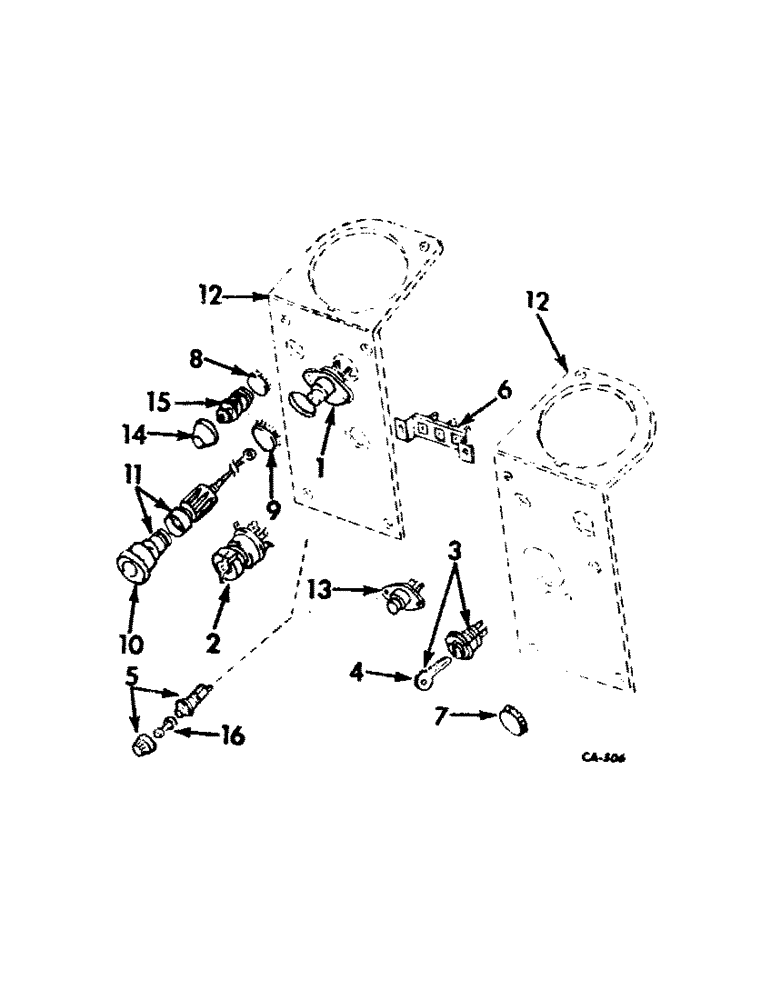

Запчасти Case IH 826 (08-20) - ELECTRICAL, ENGINE CONTROLS AND SWITCHES (06) - ELECTRICAL

1

397940R93

SWITCH

push button

1шт.

120611

NUT,#10 - 32

10-32 C-Z sq.

2шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 C-Z slt-rd-thd. mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

2

403571R2

SWITCH

lighting

1шт.

3

403562R1

IGNITION SWITCH

SWITCH ASSY, ignition key

1шт.

365502R1

NUT

switch, mounting

1шт.

375431R1

LOCK WASHER

switch mounting

1шт.

4

382458R2

KEY

ignition switch

1шт.

5

376852R91

HOUSING

ASSY, fuse

1шт.

6

378336R91

BLOCK

ASSY, junction

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

7

383621R1

PLUG, shut-off control hole button, diesel engine tractors

1шт.

8

374342R1

PLUG

horn switch hole button

1шт.

9

432281

HOLE PLUG BUTTON,29/32"

PLUG, 29/32 button, cigarette lighter hole

1шт.

10

378781R91

PACKAGE

UNIT, pop-out

1шт.

11

382671R91

CIGAR LIGHTER

CIGARETTE LIGHTER PARTS ACCESSORY

1шт.

12

NSS

NOT SOLD SEPARAT

PANELS, instrument, refer to instrument panel and gages listing, section 11

1шт.

13

397940R93

SWITCH

ASSY, ether solenoid push button

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10/32 x 1/2 C-Z slt-rd-hd. mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120611

NUT,#10 - 32

C-Z sq.

2шт.

14

371487R1

CYLINDER END CAP

CAP, horn switch dust, gray

1шт.

15

393209R91

SWITCH

horn, less cap

1шт.

16

432644

FUSE,20 Amp, Type SFE

cartridge type SFE 20

1шт.
