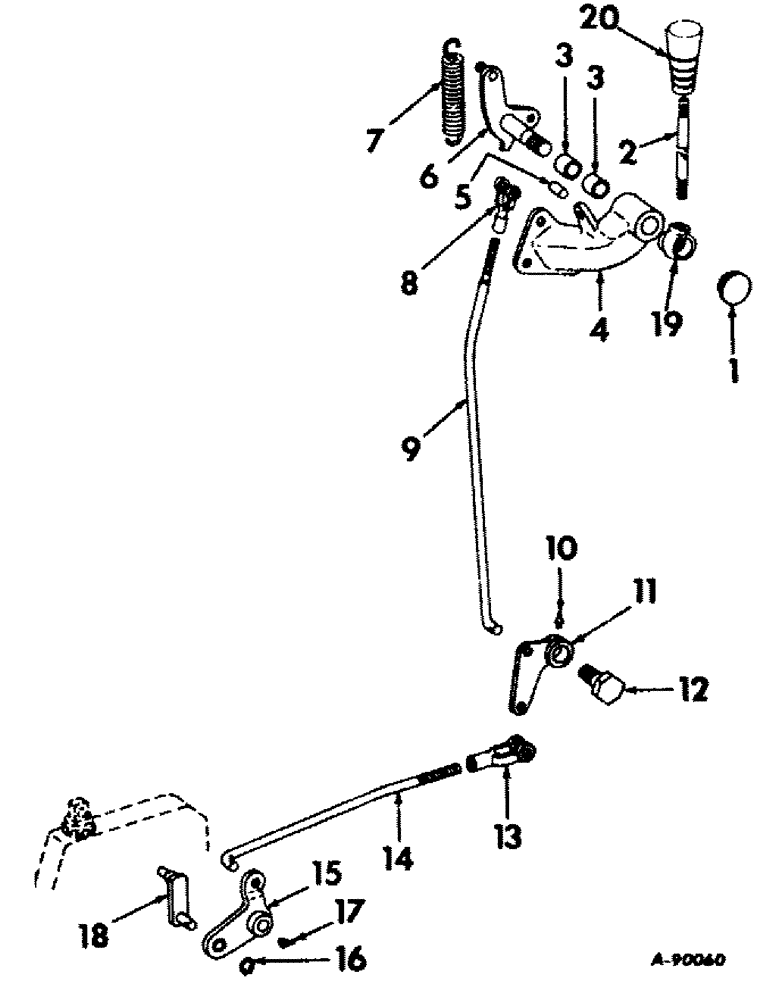

Запчасти Case IH 826 (07-68) - DRIVE TRAIN, TORQUE AMPLIFIER LEVER AND CONNECTIONS, GEAR DRIVE TRACTORS (04) - Drive Train

1

432344

HOLE PLUG BUTTON,1 3/16"

PLUG, 1-3/16 cd or an-pltd button, torque amplifier handle

1шт.

2

398801R11

HANDLE, torque amplifier control

1шт.

179814

SPACER

1шт.

Q398

WASHER

11/32 x 7/8 x 16 ga.

1шт.

398802R1

NUT, torque amplifier handle

1шт.

3

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

handle support bracket

2шт.

4

383144R11

BRACKET W/BUSHINGS, 382638R2, torque amplifier handle support

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

NLS

NO LONGER SERVICED

3шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd. cap

1шт.

5

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x 3/4 dowel

1шт.

6

383147R11

SHAFT

ASSY, handle pivot

1шт.

7

384296R2

VALVE SPRING

SPRING, pivot arm

1шт.

8

213-315

CLEVIS

5/16 short adj. rod end, bellcrank operating rod

1шт.

NLS

NO LONGER SERVICED

5/16 x 31/32 rod end

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

9

398805R1

ROD

bellcrank operating

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

615063R1

WASHER

15/32 x 7/8 x .065

1шт.

10

66584D

FITTING

3/16 drive type str lub, lever bearing

1шт.

11

384232R91

LEVER

ASSY, torque amplifier

1шт.

12

383153R3

BOLT,Shldr, Hex, 5/8" - 11 x 1.80"

BOLT, lever

1шт.

13

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8 adj. rod end

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

20285H

WASHER

13/32 x 3/4 x 11 ga.

1шт.

14

383154R1

ROD

valve lever operating

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga.

1шт.

15

401142R1

LEVER

ASSY, torque amplifier valve operating

1шт.

16

971043R1

SNAP RING,#50, Ext

Valve operating lever #50, Ext

1шт.

17

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 drive type 65 deg. angle lub

1шт.

18

384236R11

ROD

LINK ASSY, valve operating

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

131402

WASHER, 11/32 x 9/16 x 16 ga.

1шт.

Q1597

WASHER

13/32 x 7/8 x 16 ga.

1шт.

19

398803R1

HUB

torque amplifier handle

1шт.

20

397978R2

GRIP

torque amplifier handle

1шт.

382489R11

PIVOT ASSY.

PIVOT ASSY, valve operating, illustrated with clutch controls and transmission brake, this section

1шт.

445572

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 8

SCREW, 5/16-18 x 2-3/4 hex-hd. cap

1шт.

20330R1

BOLT,5/16" x 3 3/4", Gr 8

SCREW, 5/16-18 x 3-3/4 hex-hd. cap

1шт.
