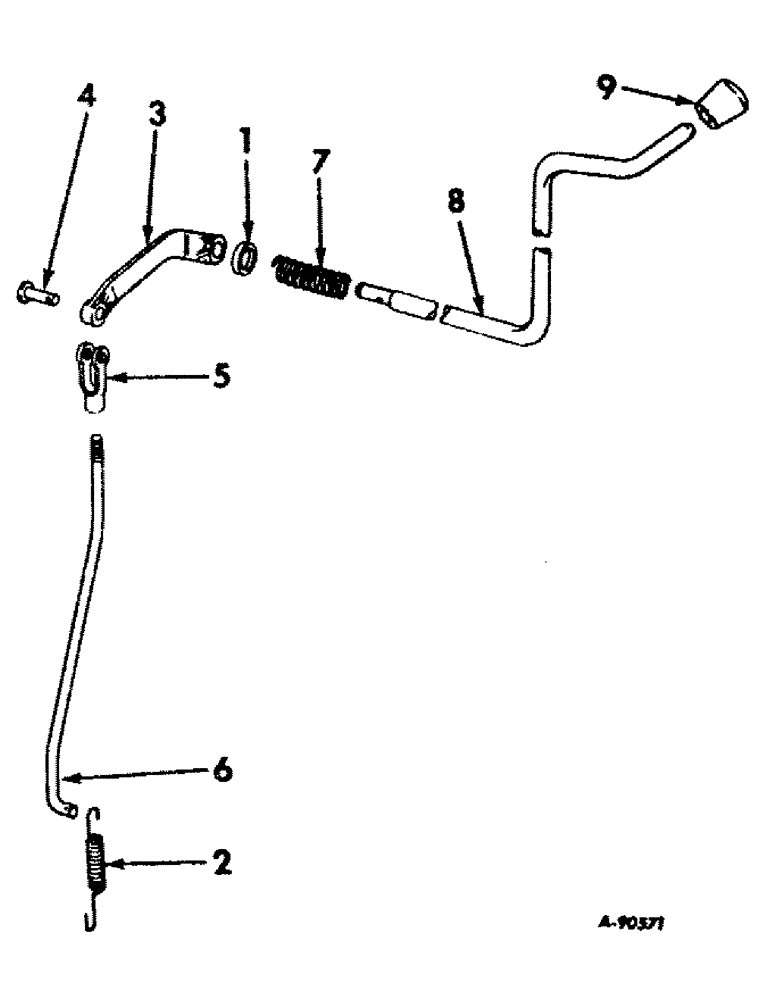

Запчасти Case IH 826 (07-67) - DRIVE TRAIN, POWER TAKE-OFF LEVER AND CONNECTIONS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
382483R1
WASHER
DISC, PTO handle friction, Farmall tractors w/serial no. 14594 and below, International tractors w/serial no. 7690 and below
1шт.
1
533486R1
DRIVEN PLATE
DISC, independent PTO handle friction, Farmall tractors w/serial no. 14595 and above, International tractors w/serial no. 7691 and above
1шт.
3
399632R1
ARM
independent PTO, Farmall tractors w/serial no. 14594 and below, International tractors w/serial no. 7690 and below
1шт.
3
533487R1
ARM
independent PTO, Farmall tractors w/serial no. 14595 and above, International tractors w/serial no. 7691 and above
1шт.
4
103496
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, , Independent PTO actuating rod end 3/8" x 1.060"
1шт.
5
104038
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
CLEVIS, 3/8-24 rod end adjustable
1шт.
8
399634R2
ROD
independent PTO handle, Farmall tractors w/serial no. 14594 and below, International tractors w/serial no. 7690 and below
1шт.
8
533488R1
STEM
ROD, independent PTO handle, Farmall tractors w/serial no. 14595 and above, International tractors w/serial no. 7691 and above
1шт.
529144R1
SPACER
BUSHING, independent PTO lever, tractors with cab, illustrated with tractor cab and connections unit, see section 13
1шт.
529143R1
LEVER
ASSY, independent PTO, tractors with cab, illustrated with tractor cab and connections unit, see section 13
1шт.
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
SCREW, 3/8-16 x 2-1/2 znd hex-hd. cap
1шт.
