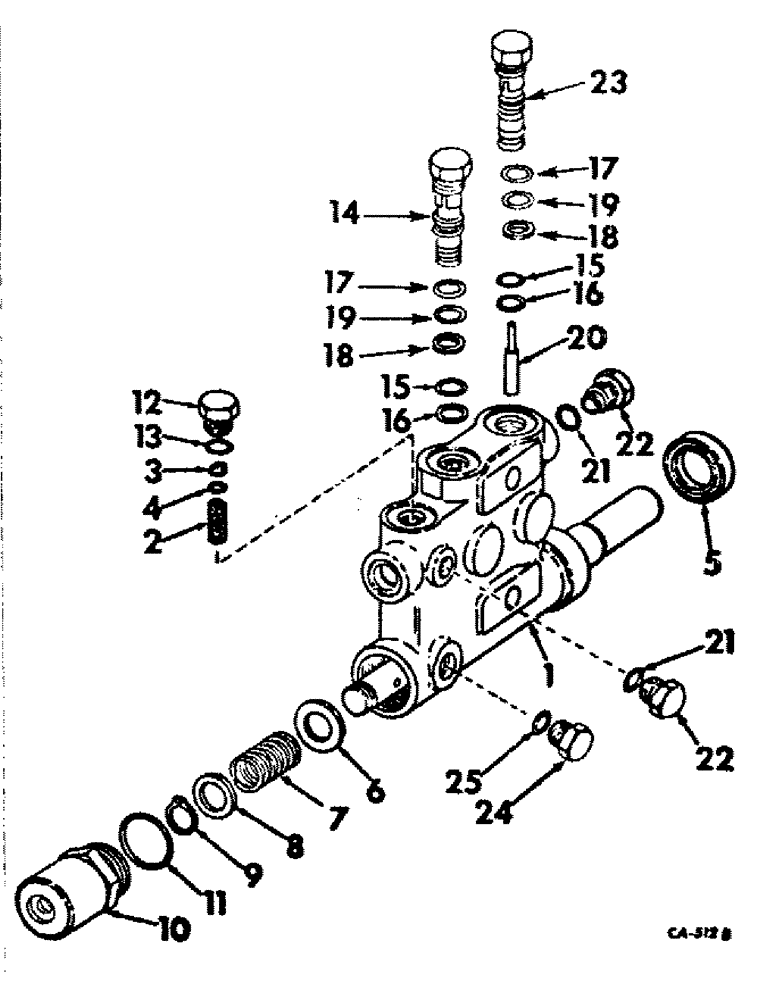

Запчасти Case IH 826 (07-66) - DRIVE TRAIN, DRIVE CONTROL VALVE (04) - Drive Train

406385R91

CONTROL VALVE

VALVE ASSY, drive control

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSY, drive control, not serviced separately, order valve assy, 406385R91

1шт.

529850R1

PLUG, pressure flush type

1шт.

2

400454R1

SPRING

1шт.

3

875777R1

SNAP RING,#25, Ext

RING, snap, . #25, Ext

1шт.

4

401291R1

SPRING WASHER

valve pin

1шт.

5

381232R91

OIL SEAL

oil

1шт.

6

398693R1

WASHER

1шт.

7

398733R1

SPRING

shuttle valve centering

1шт.

8

398694R1

WASHER

1шт.

9

398700R1

SNAP RING,#56, .524", Ext

RING, retaining

1шт.

10

406388R1

PLUG, drive control valve

1шт.

11

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64

1шт.

12

9410358

PLUG

9/16-18 str-thd. o-ring boss

1шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

14

531080R1

VALVE

ASSY, capsule, B

1шт.

15

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16

2шт.

16

398699R1

BACK-UP RING

RING, back up

2шт.

17

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

2шт.

18

383004R1

BACK-UP RING,Split, 13.16mm ID x 15.9mm OD x 1.32mm Thk

RING, back up

2шт.

19

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

2шт.

20

398696R1

PIN

lower valve lift

1шт.

21

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

2шт.

22

9410356

PLUG

7/16-20 str. thd. o-ring boss

2шт.

23

404496R2

VALVE

ASSY, A, capsule

1шт.

24

9410357

PLUG

1/2-20 str-thd. o-ring boss

1шт.

25

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
