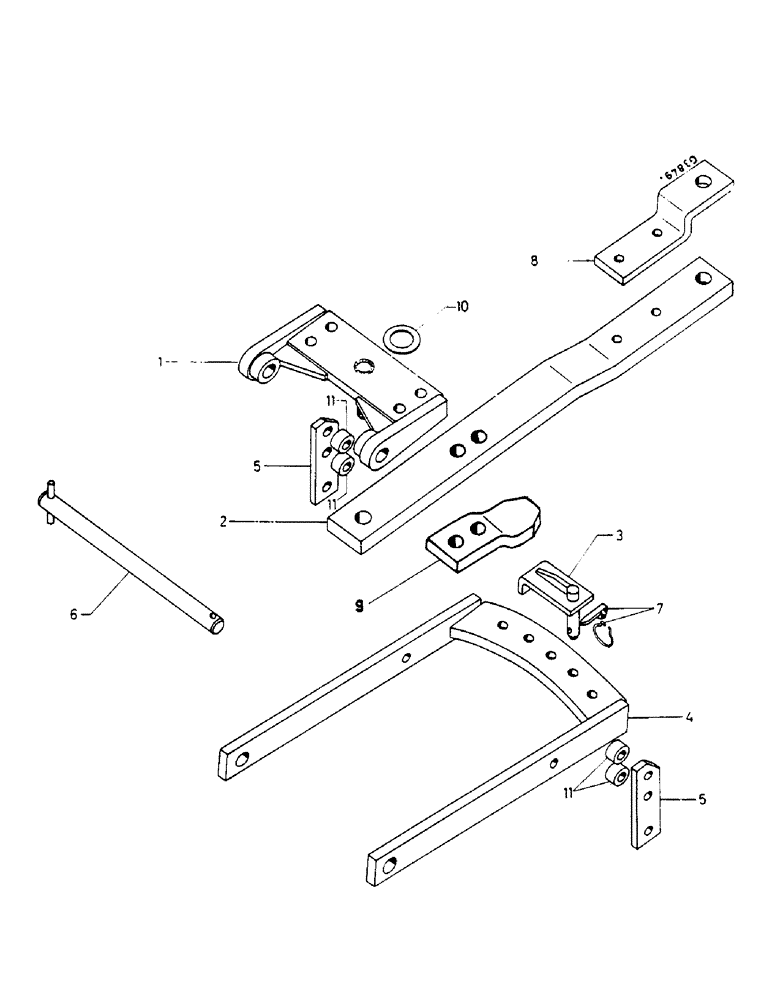

Запчасти Case IH 824 (312) - DRAW FRAME (08) - HYDRAULICS

1

3059194R12

HOLDER

BRACKET drawframe

1шт.

19635R1

BOLT

S 3/4" x 54 mm

4шт.

103326

LOCK WASHER,3/4"

4шт.

119198

COTTER PIN,3/8" x 2 1/2"

1шт.

2

3059931R2

SUPPORT

DRAWBAR swinging

1шт.

3

3142121R91

HOLDER

SPARE PART BRACKET locking

1шт.

4

3057464R21

FRAME

DRAW

1шт.

5

3057467R1

PLATE

drawframe retainer

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

103325R1

F 5/8"

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

220081

NUT

2шт.

103326

LOCK WASHER,3/4"

2шт.

6

3057466R11

X

CROSSPIN

1шт.

Q3534

HEADED PIN,9.53mm OD x 38.1mm L

headed, 3/8" x 38 mm

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

7

3057346R11

LINCH PIN

1шт.

8

3059123R1

DRAWBAR CLAMP

swinging

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Course Threads

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

2шт.

9

3136541R1

DRAWBAR CLAMP

swinging

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

10

Q2514

DISC

WASHER

1шт.

11

3134145R1

BUSHING

WASHER distance

4шт.
