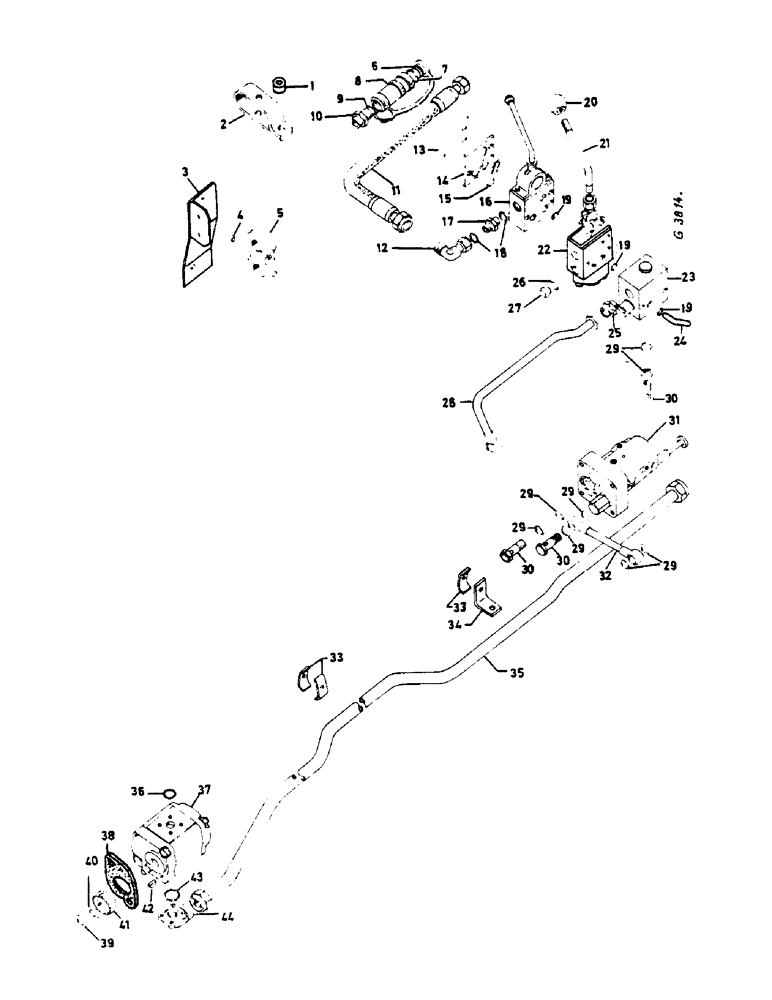

Запчасти Case IH 824 (290) - HYDRAULIC PUMP, CONTROL VALVES, OIL LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
3139078R1
SPARE PART distance
1шт.
2
3059905R1
BRACKET
coupling
1шт.
179849
BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5
1шт.
179892
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5
1шт.
933335R1
LOCK WASHER,M10
1шт.
103323
LOCK WASHER,1/2"
1шт.
102635
NUT,3/8"-16, G5
1шт.
102637
NUT,1/2"-13, G5
1шт.
3
3131840R11
X
SUPPORT
1шт.
179850
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
1шт.
179883
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1шт.
933335R1
LOCK WASHER,M10
1шт.
103323
LOCK WASHER,1/2"
1шт.
114503
JAM NUT,Jam, 3/8"-16, G5
1шт.
102637
NUT,1/2"-13, G5
1шт.
4
3134740R1
SPACER
RING distance
1шт.
5
3134739R1
HOLDER
BRACKET coupling
1шт.
6
373220R1
PLUG
CAP dust, for 395150R91
1шт.
6
3134962R1
PLUG
CAP dust, for 3131105R91
1шт.
7
385713R1
O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro
1шт.
8
395150R91
COUPLING, QUICK, FEM
break-away, with: 7
1шт.
8
3131105R91
COUPLING, BREAK AWAY
1шт.
For France only
1шт.
9
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
10
3058320R1
UNION
adapter
1шт.
11
3058711R92
HOSE
pressure, 645 mm for 2
1шт.
11
3134741R1
HYDRAULIC HOSE,13.00 mm ID x 430.00 mm
Pressure, 430 mm for 3
1шт.
12
3058712R91
90 ELBOW
90 deg.
1шт.
13
3134815R1
PLATE
cover
1шт.
930980R1
BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8
1шт.
930911R1
BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8
1шт.
930805R1
BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8
1шт.
930915R1
BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8
1шт.
930916R1
BOLT,Hex, M8 x 1.25 x 150mm, Cl 8.8
2шт.
931083R1
BOLT,Hex, M8 x 1.25 x 175mm, Cl 8.8
1шт.
930917R1
BOLT,Hex, M8 x 1.25 x 190mm, Cl 8.8
2шт.
931082R1
BOLT,Hex, M8 x 1.25 x 230mm, Cl 8.8
2шт.
14
3134814R1
PLATE
intermediate
1шт.
15
3054999R1
O-RING
1шт.
16
VALVE control, for single acting power cylinders, see Figure: 300
1шт.
16
3059955R91
1шт.
17
3058415R1
UNION
adapter
1шт.
18
717598R1
GASKET
RING packing
1шт.
19
717012R1
O-RING,2.5mm Thk x 12.5mm ID, Cl 5, 70 Duro
1шт.
20
711490R1
BUTTON
BALL lever
1шт.
21
3059906R1
LEVER
control
1шт.
22
VALVE control, for double acting power cylinders, see Figure: 303
1шт.
23
BLOCK mounting, see Figure: 306
1шт.
24
3058859R1
PIPE
return
1шт.
25
3058415R1
UNION
ADAPTER
1шт.
26
933222R1
SEALING WASHER,M18 x 22 x 1.5
1шт.
27
933223R1
PLUG,Hex, M18 x 1.5
M 18
1шт.
28
3058146R92
PIPE
return to draft control valve
1шт.
29
3051337R1
SEALING RING,M18 x 24mm OD x 1.5mm Thk
8шт.
30
930259R1
BANJO BOLT,M18 x 1 x 42mm
hollow
4шт.
31
VALVE draft control, with cut-out valve, see Figure: 295
1шт.
31
3134343R93
1шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
4шт.
32
3057631R91
PIPE
connecting
1шт.
33
3058038R1
CLAMP
3шт.
179799
BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5
2шт.
179800
BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5
2шт.
103319
LOCK WASHER,1/4"
(2)
2шт.
109084
NUT,1/4"-20, G5
(2)
2шт.
34
3058039R1
ANGLE
clamp
1шт.
35
3058192R92
PIPE
suction, 553
1шт.
35
3057742R93
PIPE
suction, 654/724
1шт.
35
3142019R1
PIPE
suction, 824
1шт.
36
3057401R1
O-RING,2.5mm Thk x 18mm ID, 70 Duro
1шт.
37
3142097R91
HYDRAULIC PUMP
"Bosch"
1шт.
37
3057395R91
PUMP, HYDRAULIC
"Plessey"
1шт.
3058427R1
STUD
3/8" x 120 mm
1шт.
20507R1
BOLT,Hex, 3/8" - 16 x 6 3/4", Gr 5
1шт.
933620R1
BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk
(3/8")
2шт.
21070R1
NUT,3/8"-16, G8
2шт.
933238R1
JAM NUT
M M12
1шт.
38
3057397R2
GASKET
1шт.
39
20285H
WASHER
1шт.
40
3054302R1
PLATE, LOCKING
lock, with tang
1шт.
41
3057396R1
GEAR
drive, 20 teeth
1шт.
42
3054301R1
WOODRUFF KEY,M3 x 6.5
1шт.
43
3057400R1
O-RING,2.5mm Thk x 24mm ID, 70 Duro
1шт.
44
3057398R1
FLANGE
connection suction pipe
1шт.
931118R1
HEX SOC SCREW,M6 x 1 x 20mm, Cl 8.8
4шт.
933825R1
LOCK WASHER,M6
4шт.
3131173R91
GASKET KIT
SET gaskets, for pump 3142097R91, "Bosch"
1шт.
3059950R91
RING
SET gaskets, for pump 3057395R91, "Plessey"
1шт.
