Запчасти Case IH 824 (224) - FOOT BRAKE (07) - BRAKES

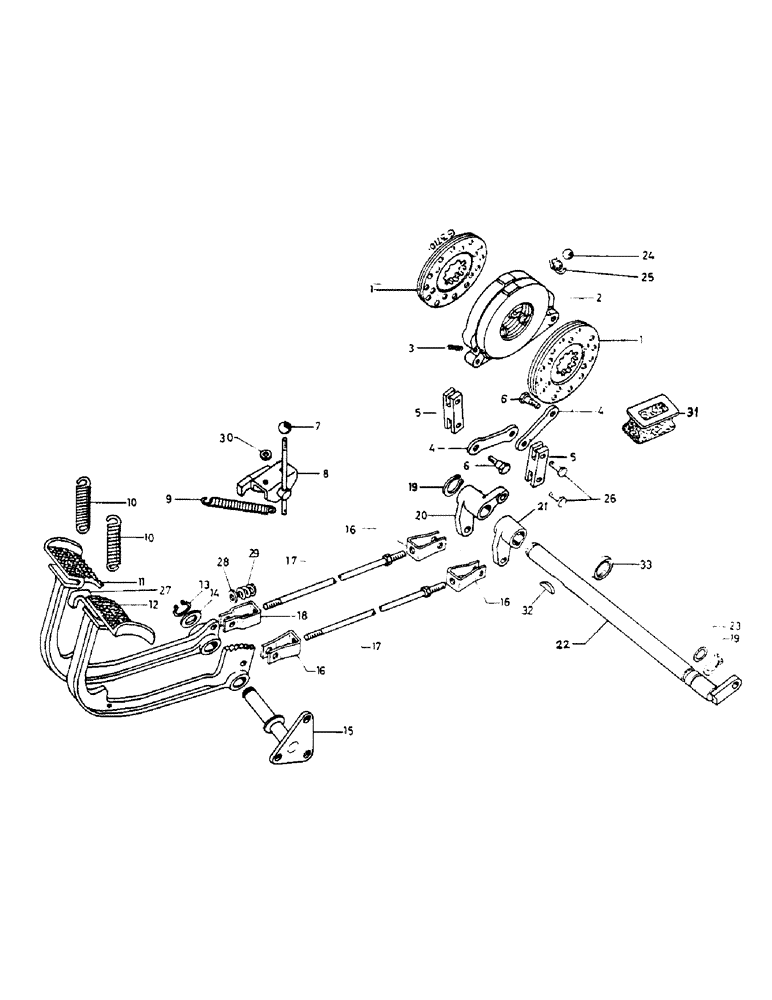

Схема запчастей Case IH 824 - (224) - FOOT BRAKE (07) - BRAKES
8
32
1
4
27
2
5
25
30
19
16
12
23
16
3
13
9
5
20
17
33
17
19
28
7
15
24
14
10
11
29
22
4
21
6
16
31
26
6
10
18
1

Артикул

Название

Примечание

Количество

1

3134665R91

LINING

DISC, brake

4шт.

3134670R91

BRAKE LINE

PACKAGE, for disc with linings and rivets

1шт.

Grind linings to specification, see service manual

1шт.

Version with parking brake

1шт.

2

787004R22

MECHANISM

BRAKE, double disc, with: 4, 6, 24, 25

2шт.

3

3131898R2

SPRING

pressure

2шт.

4

787005R1

NO LONGER SERVICED

LINK, brake

2шт.

5

3131683R1

LINK

draw

2шт.

6

786461R1

BOLT,Hex, 3/8" x 31mm

BOLT, special

2шт.

933435R1

LOCK WASHER

F 3/8"

2шт.

114494

NUT,Jam, 3/8"-24, G5

2шт.

7

714987R1

BUTTON

BALL, lever

1шт.

8

3057197R11

BRAKE

parking

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

9

710706R1

SPRING

1шт.

10

718862R2

SPRING

2шт.

11

3057186R51

PEDAL

brake, RH

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

1шт.

12

3057188R61

PEDAL

brake, LH with: 27

1шт.

Grind linings to specification, see service manual

1шт.

Version with parking brake

1шт.

12

3142067R91

PEDAL

brake, LH with: 27

1шт.

Version without parking brake

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

932228R1

LOCK PIN,M6 x 24, Slotted

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

1шт.

13

933128R1

SNAP RING,M25, Ext

CIRCLIP

1шт.

14

615226R1

WASHER

1шт.

15

3057190R11

LARGE PIN

SPARE PART AXLE, pedal brake

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

S 1/2" x 38 mm

3шт.

103323

LOCK WASHER,1/2"

3шт.

16

3058293R1

CLEVIS

3шт.

103496

CLEVIS PIN,3/8" x 1.060"

Headed

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

17

3057194R21

ROD

brake pedal

2шт.

102635

NUT,3/8"-16, G5

2шт.

105606

NUT

(square) M 3/8"

2шт.

125-10003

NUT,3/8"-16, G5, LH

5шт.

12790R1

NUT

LH thread (square) M 3/8"

1шт.

18

787126R2

CLEVIS

adjusting

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

Headed

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

19

933086R1

SNAP RING,M30, Ext

2шт.

20

3057196R1

LEVER

foot brake, RH

1шт.

739158R91

LUBE NIPPLE

LUBRICATOR

1шт.

21

3134481R1

ARM

SPARE PART LEVER, foot brake, LH

1шт.

22

3136662R11

SHAFT

brake

1шт.

23

3058327R1

O-RING,3.5mm Thk x 24mm ID, 75 Duro

2шт.

24

16028R1

BALL

steel

5шт.

25

786776R2

SPRING

return

3шт.

26

787067R1

PIN

headed

4шт.

103384

COTTER PIN,1/8" x 3/4"

4шт.

27

43751D8

LATCH, connecting

1шт.

51293D

SPRING

leaf pedal latch

1шт.

28

50793H

WASHER

1шт.

29

787785R1

SPRING

1шт.

30

3058250R1

WASHER

2шт.

31

3134946R1

CAP

GROMMET, LH

1шт.

31

3134947R1

CYLINDER END CAP

GROMMET, RH

1шт.

32

187184

KEY

1шт.

33

3136663R1

OIL SEAL

oil

1шт.

Выбрано товаров: 64
