Запчасти Case IH 824 (204) - TRANSMISSION, FRONT AXLE DRIVE (06) - POWER TRAIN

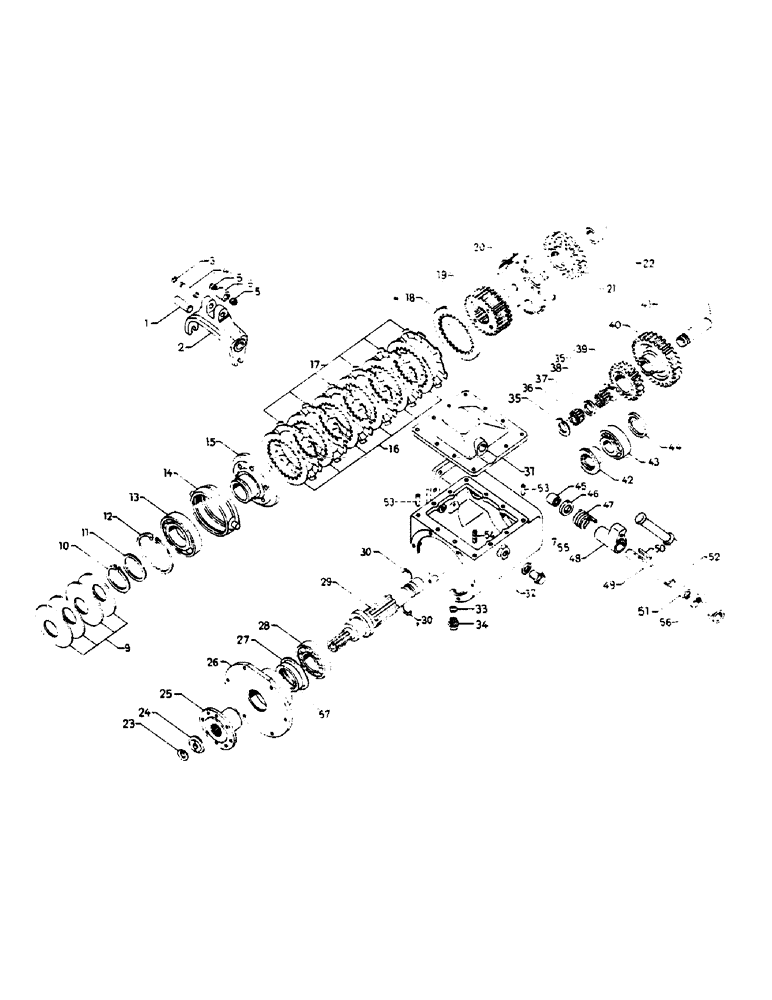

Схема запчастей Case IH 824 - (204) - TRANSMISSION, FRONT AXLE DRIVE (06) - POWER TRAIN
16
52
47
21
12
39
10
31
30
56
53
5
32
5
55
13
2
28
4
35
18
34
3
29
48
11
20
57
15
36
37
30
22
27
43
53
1
33
42
41
46
17
6
9
7
14
19
35
24
40
23
51
38
26
25
45
49
44

Артикул

Название

Примечание

Количество

3134967R91

TRANSMISSION, front axle drive, 553/654

1шт.

787859R91

NO LONGER SERVICED

TRANSMISSION, front axle drive, 724/824

1шт.

1

3131562R1

PIN

pivot

2шт.

2

3131556R1

FORK

shifter, with bushings

1шт.

3

933073R1

SNAP RING,M12, Ext

CIRCLIP

2шт.

4

3131561R1

PIN

1шт.

5

3131560R1

BEARING, NEEDLE

2шт.

6

3131559R1

ROLLER

BUSHING

1шт.

7

933222R1

SEALING WASHER,M18 x 22 x 1.5

2шт.

9

3131516R1

BELLEVILLE SPRING

4шт.

10

3047960R1

SNAP RING,M65, Ext

1шт.

11

3131519R1

WASHER

1шт.

12

3053249R1

SNAP RING,M120, Int

1шт.

13

3131518R1

BEARING

ball

1шт.

14

3131520R1

RING

release

1шт.

15

3131517R1

HUB

1шт.

16

3131522R1

CLUTCH PLATE,117mm ID x 160mm OD x 2mm Thk

inner

6шт.

17

3131523R1

DISC

outer

6шт.

18

3131525R1

PLATE, THRUST

pressure

1шт.

19

3131521R1

CARRIER

HUB, disk

1шт.

20

3134975R1

GEAR, with disk housing, 553/654, Includes: 21

1шт.

21

3131527R1

GEAR

with disk housing, 724/824

1шт.

22

3131526R1

SPACER

BUSHING, distance

1шт.

23

933789R1

WASHER,Ext Tab, M13 ID x 30 OD x 1.2 Thk

1шт.

24

3131515R1

WASHER

pressure

1шт.

25

3131535R1

FLANGE

coupling with bolts and nuts

1шт.

931204R1

BOLT,M8 x 25, Cl 10.9

S M8 x 25 mm

8шт.

933452R1

SLOTTED NUT,M8 x 1.25, Cl 8

8шт.

23478R1

COTTER PIN,5/64" x 3/4"

cotter 3 x 20 mm

8шт.

3131089R1

O-RING,2.5mm Thk x 38mm ID

1шт.

26

3134540R1

COVER

front

1шт.

931205R1

SCREW,M10 x 25mm, Cl 10.9

S M8 x 25 mm

6шт.

27

3131547R1

SHIM

2.8 mm (.110")

1шт.

27

3131546R1

SPARE PART 3.0 mm (.118")

1шт.

27

3131545R1

WASHER

SHIM 3.4 mm (.134")

1шт.

27

3131544R1

WASHER

SHIM 3.5 mm (.138")

1шт.

27

3131543R1

SPARE PART 3.6 mm (.142")

1шт.

27

3131542R1

SPARE PART 3.7 mm (.146")

1шт.

27

3131541R1

WASHER

SHIM 4.0 mm (.158")

1шт.

28

PO15712

TAPERED BEARING

CONE

1шт.

28

ST782A

TAPERED BEARING,2" ID x 3.6718" OD x 1.1875"

1шт.

29

3131514R1

SHAFT

drive

1шт.

930052R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

932660R1

PIN, GROOVED

PIN, GROOVE 5 x 12 mm

1шт.

30

3131539R1

SET

RING, lock (2-piece)

1шт.

31

3131572R1

COVER

shifter

1шт.

32

3131511R1

HOUSING

1шт.

932663R1

ROLL PIN

5 x 50 mm

1шт.

33

933608R1

SEALING RING,M26 x 31 x 2

1шт.

34

3131574R1

PLUG

1шт.

35

3131554R1

PLATE, LOCKING

WASHER, thrust

2шт.

36

3131551R1

NEEDLE BEARING

1шт.

37

3131553R1

RING

distance

1шт.

38

3131552R1

CAGE

BEARING, needle

1шт.

39

3134976R1

GEAR SET

drive, set of 28/40 teeth

1шт.

40

3131532R1

GEAR

drive, set of 27/40 teeth

1шт.

41

3131555R1

SHAFT

SHAFT, gear driving

1шт.

42

3131540R1

BUSHING

spacer

1шт.

43

3131513R1

CONE

SPARE PART bearing

1шт.

43

128237R1

BEARING, CUP,82.93mm OD x 22.23mm W

CUP

1шт.

44

3131512R1

COVER

1шт.

45

3131568R1

BEARING, NEEDLE

1шт.

46

3131570R1

SPACER

SPARE PART RING, stop

1шт.

932662R1

LOCK PIN,3mm OD x 32mm L, Slotted

1шт.

47

3131565R1

SPRING

1шт.

48

3131564R1

CAM

shifter

1шт.

49

3131567R1

SHAFT

shifter

1шт.

50

932664R1

KEY,M6 x 4 x 36, Par

1шт.

51

3131569R1

BEARING, NEEDLE

1шт.

52

3131566R1

LEVER

1шт.

Q5164

ROLL PIN,5mm OD x 36mm L, Slotted

1шт.

Q2932

LOCK PIN,M8 x 36, Slotted

1шт.

53

932659R1

DOWEL,M10 x 20

dowel

2шт.

54

931206R1

STUD

2шт.

100016

NUT,M10 x 1.5, Cl 8

8шт.

55

3131563R2

PLUG

2шт.

56

3131571R1

SEALING RING

oil

1шт.

57

3131549R1

SEALING RING

oil

1шт.

Выбрано товаров: 78
