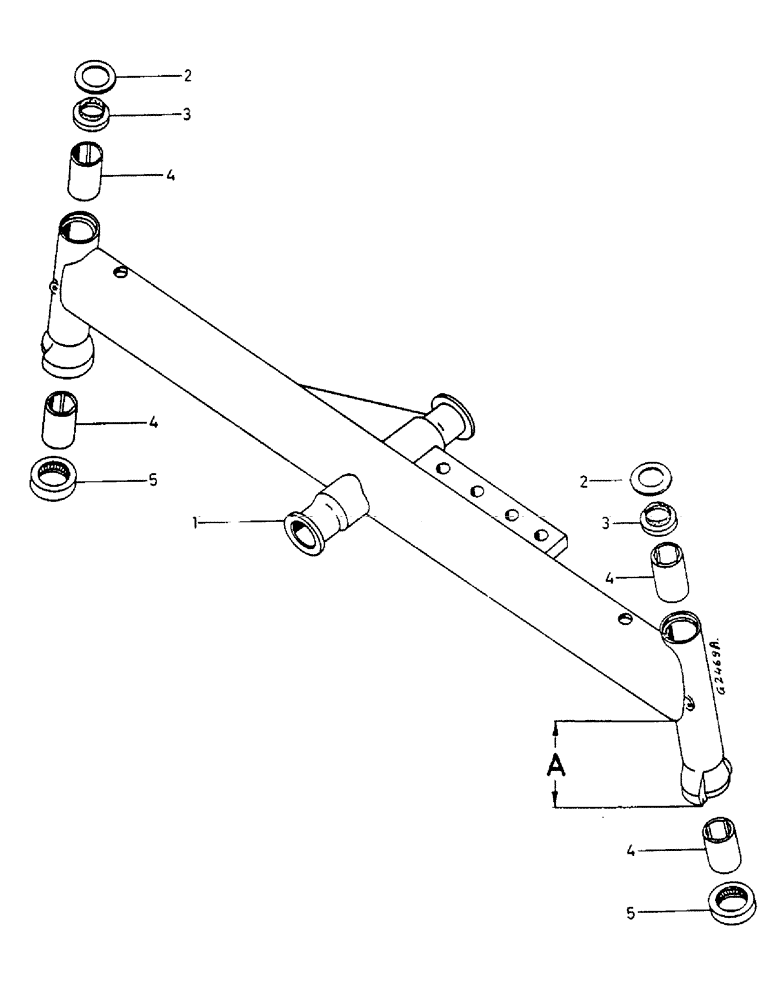

Запчасти Case IH 824 (192) - FRONT AXLE (06) - POWER TRAIN

1

3134620R12

AXLE

front, with: 3 - 4 ground clearance 17" (432 mm) A = 85 mm

1шт.

1

3134624R92

AXLE, FRONT

with: 3 - 4 ground clearance 18" (457 mm) A = 115 mm

1шт.

1

3142570R91

AXLE, FRONT

with: 3 - 4 ground clearance 17" (432 mm) A = 85 mm

1шт.

Version with power steering

1шт.

1

3134628R92

AXLE, FRONT

with: 3 - 4 ground clearance 20" (508 mm) A=165 mm

1шт.

1

3142571R91

AXLE, FRONT

with: 3 - 4 ground clearance 17" (432 mm) A=85 mm

1шт.

Version with power steering

1шт.

739157R91

LUBE NIPPLE

LUBRICATOR

2шт.

3142576R91

CARRIER

BRACKET, steering cylinder

1шт.

Version with power steering

1шт.

2

3059771R1

SHIM

0.2 mm

1шт.

2

3057042R1

SHIM,40.05mm ID x 59.94mm OD x 0.55mm Thk

0.5 mm

1шт.

3

3131033R1

SEAL,39mm ID x 53mm OD x 8mm Thk

SCRAPER

2шт.

4

3057051R1

BUSHING

4шт.

5

3057058R91

BEARING ASSY

thrust

2шт.
