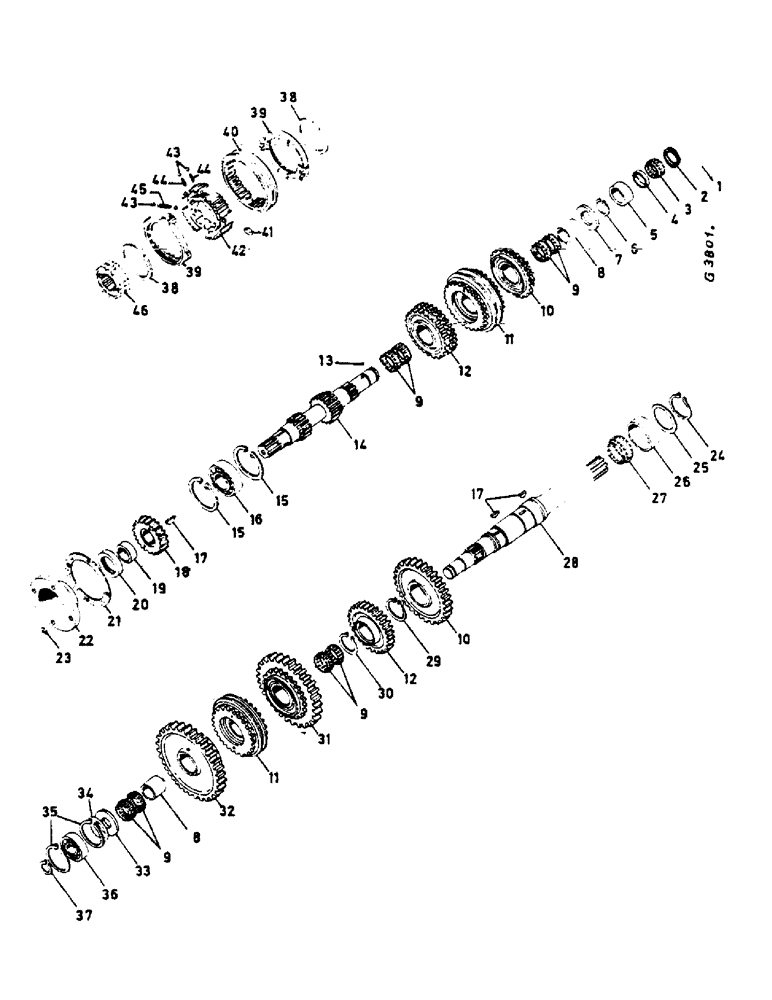

Запчасти Case IH 824 (138) - GEARSHIFT TRANSMISSION, SYNCHRONIZER (06) - POWER TRAIN

3057261R1

CIRCLIP

553/654

1шт.

1

3142144R1

RING, SNAP

RING SNAP CIRCLIP, 724/824

1шт.

2

3142146R1

WASHER

distance, 724/824

1шт.

Version without power-shift transmission

1шт.

3

3057260R91

NEEDLE BEARING CAGE

needle, 553/654

1шт.

3

3142143R91

BEARING, ROLLER,33 mm ID x 49 mm OD x 14.8 mm

724/824

1шт.

4

3057259R1

RING

distance, 553/654

1шт.

4

3142166R1

WASHER

RING, distance, 724/824

1шт.

4

3142145R1

SPACER

RING, distance, 724/824

1шт.

Version without power-shift transmission

1шт.

5

3059779R1

NEEDLE BEARING

bearing, 553/654

1шт.

5

3142148R1

RETAINER

RING, bearing, 724/824

1шт.

6

933683R1

SNAP RING,M36, Ext

1шт.

7

3057258R2

THRUST WASHER

6.40 mm (.252")

1шт.

7

3058628R2

THRUST WASHER

6.45 mm (.254")

1шт.

7

3058629R2

THRUST WASHER

6.50 mm (.256")

1шт.

7

3058630R2

THRUST WASHER

6.55 mm (.258")

1шт.

7

3058631R2

THRUST WASHER

6.60 mm (.260")

1шт.

7

3058632R2

THRUST WASHER

6.65 mm (.262")

1шт.

7

3058633R2

THRUST WASHER

6.70 mm (.264")

1шт.

7

3058634R2

THRUST WASHER

6.75 mm (.266")

1шт.

7

3058635R2

THRUST WASHER

6.80 mm (.268")

1шт.

7

3058636R2

THRUST WASHER

6.85 mm (.270")

1шт.

8

3057253R1

NEEDLE BEARING

RING, needle bearing

2шт.

9

3057252R91

BEARING

needle

8шт.

10

3131758R91

GEAR-SET

of. 3rd speed 26/44 teeth

1шт.

25 km/h = 15.5 mph

1шт.

10

3137041R91

GEAR-SET

of. 3rd speed 27/43 teeth

1шт.

30 km/h - 18.6 mph

1шт.

11

3057494R93

SYNCHRONIZER

with 38 - 46

2шт.

12

3131760R92

GEAR-SET

of 4th speed, 36/39 teeth

1шт.

25 km/h = 15.5 mph

1шт.

12

3137044R91

GEAR-SET

of 4th speed, 37/38 teeth, 553/654

1шт.

30 km/h - 18.6 mph

1шт.

12

3142485R91

GEAR-SET

of 4th speed, 37/39 teeth, 724/824

1шт.

30 km/h - 18.6 mph

1шт.

13

16006R1

BALL

steel

1шт.

14

3137066R1

SHAFT

SPARE PART main drive, single clutch, 18/14 teeth, 553/654

1шт.

25 km/h = 15.5 mph

1шт.

14

3142149R2

SHAFT

main drive, single clutch, 18/14 teeth, 724/824

1шт.

25 km/h = 15.5 mph

1шт.

14

3137067R1

SHAFT

main drive, single clutch, 18/13 teeth, 553/654

1шт.

30 km/h - 18.6 mph

1шт.

14

3142150R2

SHAFT

main drive, single clutch, 18/14 teeth, 724/824

1шт.

30 km/h - 18.6 mph

1шт.

14

3137068R1

SHAFT

main drive, single clutch, 20/13 teeth, 553/654

1шт.

Version without power-shift transmission

1шт.

30 km/h - 18.6 mph

1шт.

14

3142151R2

SHAFT

main drive, single clutch, 18/14 teeth, 724/824

1шт.

Version without power-shift transmission

1шт.

30 km/h - 18.6 mph

1шт.

14

3137072R1

SHAFT

SPARE PART main drive, double clutch, 18/14 teeth, 553/654

1шт.

25 km/h = 15.5 mph

1шт.

14

3142152R2

SHAFT

main drive, double clutch, 18/14 teeth, 724/824

1шт.

25 km/h = 15.5 mph

1шт.

14

3137073R1

SHAFT

SPARE PART main drive, double clutch, 18/13 teeth, 553/654

1шт.

30 km/h - 18.6 mph

1шт.

14

3142153R2

SHAFT

main drive, double clutch, 18/13 teeth, 724/824

1шт.

30 km/h - 18.6 mph

1шт.

14

3137074R1

SHAFT

main drive, double clutch, 20/13 teeth, 553/654

1шт.

Version without power-shift transmission

1шт.

30 km/h - 18.6 mph

1шт.

14

3142154R2

SHAFT

main drive, double clutch, 20/13 teeth, 724/824

1шт.

Version without power-shift transmission

1шт.

30 km/h - 18.6 mph

1шт.

15

933077R1

SNAP RING,M90, Int

CIRCLIP

2шт.

16

700516R91

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

553/654

1шт.

16

3137155R91

BEARING, ROLLER

724/824

1шт.

17

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

3шт.

18

3134541R91

GEAR-SET

of, PTO. drive, 28/56 teeth

1шт.

19

3057315R1

SPACER

RING, distance

1шт.

20

3131160R91

OIL SEAL

1шт.

21

3134518R1

GASKET,0.5mm Thk

1шт.

22

3057187R3

RETAINER

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

4шт.

23

Not-used

1шт.

24

933089R1

SNAP RING,M60, Ext

1шт.

25

3057257R1

SPRING WASHER

spring steel

1шт.

26

3057256R1

NEEDLE BEARING

RING, needle bearing, outer

1шт.

27

3057255R91

NEEDLE BEARING CAGE,60mm ID x 68mm OD x 23mm W

1шт.

28

3057073R2

COUNTERSHAFT

front

1шт.

Version without power-shift transmission

1шт.

29

933030R1

SNAP RING,M55, Ext

CIRCLIP

1шт.

30

933088R1

SNAP RING,M50, Ext

1шт.

31

3057841R11

GEAR

2nd speed 52 teeth

1шт.

31

3137017R11

GEAR

2nd speed 50 teeth

1шт.

Version without power-shift transmission

1шт.

32

3137013R11

GEAR

SPARE PART 1st speed 61 teeth, 553/654

1шт.

25 km/h = 15.5 mph

1шт.

32

3142792R91

PINION

GEAR, 1st speed 61 teeth, 724/824

1шт.

25 km/h = 15.5 mph

1шт.

32

3137014R11

GEAR

1st speed 62 teeth, 553/654

1шт.

30 km/h - 18.6 mph

1шт.

32

3142794R91

GEAR

1st speed 62 teeth, 724/824

1шт.

30 km/h - 18.6 mph

1шт.

33

3059939R1

THRUST WASHER

45 x 30.2 x 5.25 mm

1шт.

33

3059938R1

THRUST WASHER

68 x 30.2 x 10 mm

1шт.

34

3058637R1

SHIM,30.07mm ID x 42.33mm OD x 0.1mm Thk

SHIM 0.1 mm (.004")

1шт.

34

3058638R1

SHIM,30.07mm ID x 42.33mm OD x 0.2mm Thk

SHIM 0.2 mm (.008")

1шт.

34

3058639R1

SHIM,30.07mm ID x 42.33mm OD x 0.3mm Thk

SHIM 0.3 mm (.012")

1шт.

34

3058640R1

SHIM

0.5 mm (.020")

1шт.

35

933076R1

SNAP RING,M72, Int

CIRCLIP

2шт.

36

787813R91

BEARING, BALL,30 mm ID x 72 mm OD x 19 mm

553/654

1шт.

36

3137154R91

BEARING

roller, 724/824

1шт.

37

933086R1

SNAP RING,M30, Ext

1шт.

38

3136514R1

RING

snap

4шт.

39

3057496R91

RING

synchronizer

4шт.

40

3057495R21

COLLAR

shifter

2шт.

41

3057497R1

LATCH

8шт.

42

3057499R91

BODY

synchronizer

2шт.

43

3057501R1

BALL

steel

16шт.

44

3057502R1

SPRING

8шт.

45

3057503R1

SPRING

4шт.

46

3057500R91

GEAR

CARRIER, body synchronizer

2шт.
