Запчасти Case IH 824 (266) - POWER STEERING (05) - STEERING

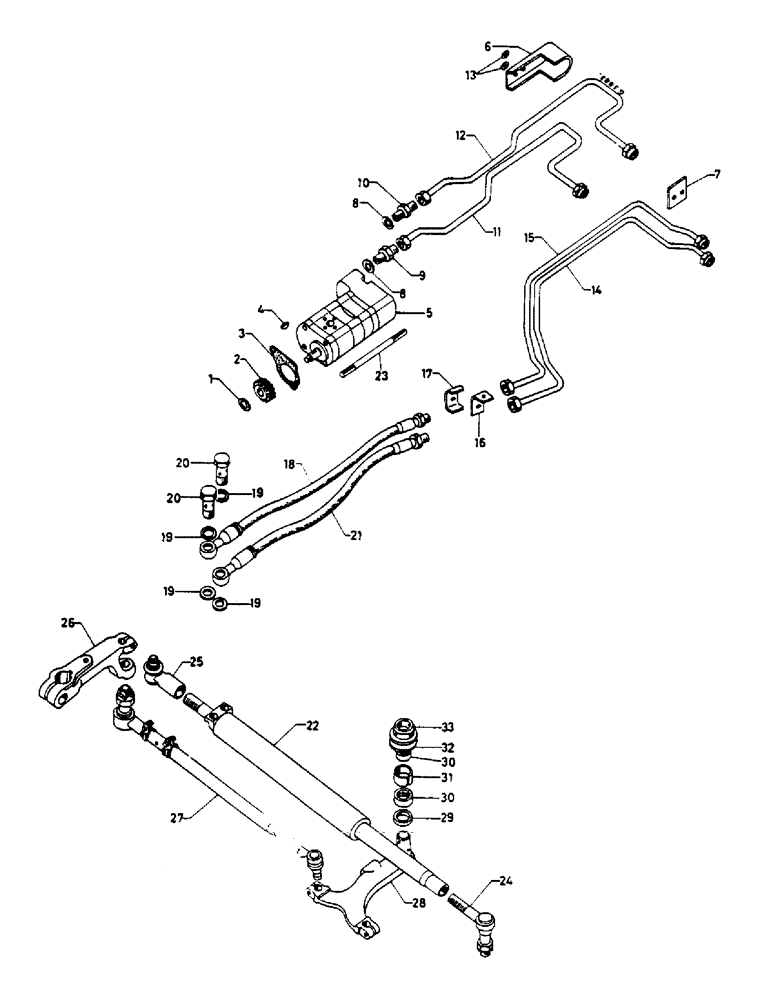

Схема запчастей Case IH 824 - (266) - POWER STEERING (05) - STEERING
24
27
7
25
8
31
5
13
20
21
12
2
29
19
19
28
11
4
32
17
33
3
19
6
20
18
1
16
22
8
10
26
30
9
19
14
15
30
23

Артикул

Название

Примечание

Количество

1

3054302R1

PLATE, LOCKING

WASHER with tang

1шт.

2

3057396R1

GEAR

drive, 20 teeth

1шт.

933238R1

JAM NUT

M M12

1шт.

3

3057397R2

GASKET

1шт.

4

3054301R1

WOODRUFF KEY,M3 x 6.5

1шт.

5

3142564R91

PUMP

tandem "Plessey"

1шт.

5

3142563R91

PUMP

tandem "Bosch"

1шт.

3136606R91

KNOB

PACKAGE gaskets, for tandem pump "Bosch"

1шт.

6

3059448R1

CAP

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

7

3059449R1

PLATE

counter

1шт.

8

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

2шт.

9

3058415R1

UNION

adapter

1шт.

10

3131914R1

PORT

UNION adapter

1шт.

11

3142561R1

TUBE

PIPE return, 553

1шт.

11

3142562R

PIPE return, 654/724/824

1шт.

12

3142559R1

LINE

PIPE pressure, 553

1шт.

12

3142560R1

LINE

PIPE pressure, 654/724/824

1шт.

13

446178

WASHER,#12

2шт.

14

3142558R1

LINE

PIPE pressure, valve control to steering cylinder, LH

1шт.

15

3142557R1

LINE

PIPE, pressure, control valve to steering cylinder, RH

1шт.

16

3059446R1

SUPPORT

BRACKET clamp

1шт.

17

3059447R1

CLAMP

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

18

3142621R1

HOSE

pressure, 553

1шт.

18

3140996R1

HOSE

pressure, 654/724/824

1шт.

19

933155R1

SEALING RING,M16 x 20 x 1.5

4шт.

20

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

hollow

2шт.

21

3142622R1

HOSE

pressure, 553

1шт.

21

3140995R2

HOSE

pressure, 654/724/824

1шт.

22

CYLINDER steering, see Figure: 270

1шт.

934071R1

LOCK WASHER

tooth, 20 mm

1шт.

933707R1

NUT,Thin, M20 x 1.5

M M20

1шт.

23

3059442R1

STUD

1шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

1шт.

21070R1

NUT,3/8"-16, G8

2шт.

23

3059441R1

HEX SOC SCREW

1шт.

24

3141530R91

BALL JOINT

1шт.

933943R1

WASHER

SPARE PART tooth lock, 22 mm

1шт.

933316R1

NUT

M M22

1шт.

25

3141532R91

BALL JOINT

1шт.

If steering cylinder is P/N 3136901R1, order ball joint 3059433R2. 3059433R2 has 22 mm female thread

1шт.

26

3059434R3

ARM

steering knuckle

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

27

ROD tie, see Figure: 188

2шт.

28

3136955R91

KIT

LEVER bellcrank, with: 30

1шт.

930051R1

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

933335R1

LOCK WASHER,M10

2шт.

933065R1

NUT,M10, Cl 5

2шт.

739159R91

LUBE NIPPLE

LUBRICATOR

1шт.

29

3057170R1

RING

spacer

1шт.

30

3134118R1

NEEDLE BEARING

needle

2шт.

31

3137669R1

SPACER

spacer

1шт.

32

3137188R1

SHIM,30mm ID x 56mm OD x 0.41mm Thk

1шт.

33

3057171R2

RING

stop

1шт.

932292R1

LOCK PIN,M6 x 50, Slotted

1шт.

Выбрано товаров: 60
