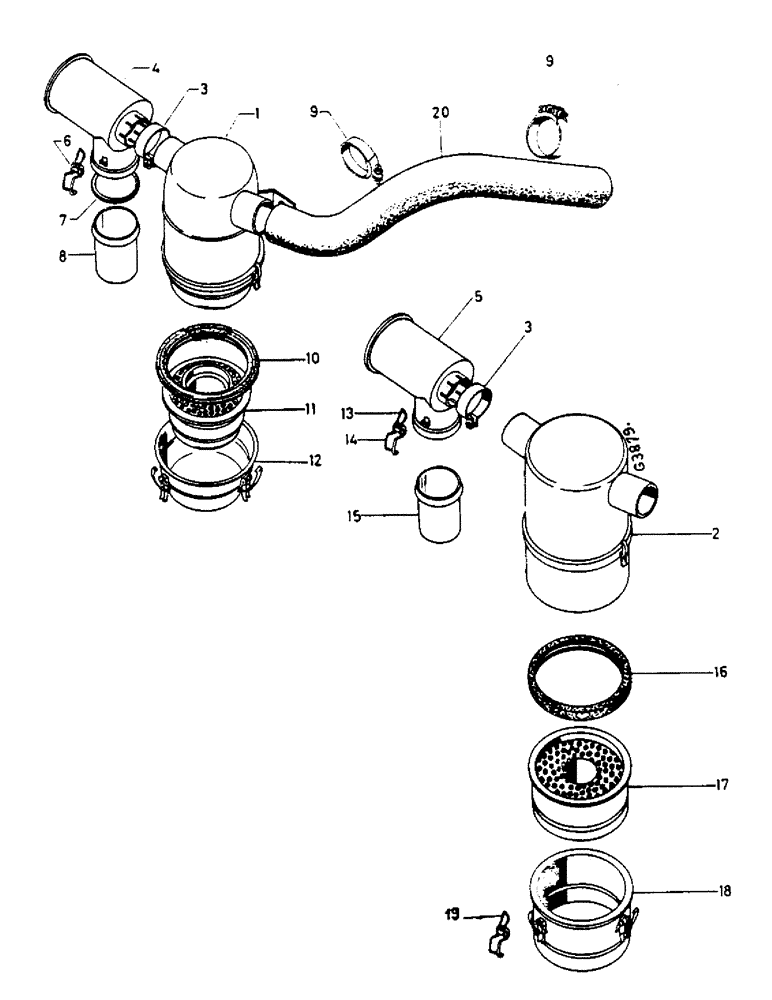

Запчасти Case IH 824 (074) - OIL BATH AIR CLEANER (02) - ENGINE

1

3057490R92

FILTER

CLEANER air, "Mann & Hummel" with 10 - 12

1шт.

2

3059365R91

CLEANER

air, "Lautrette", 553/654, with 2, 16 - 19

1шт.

2

3142059R91

FILTER

SPARE PART CLEANER air, "Lautrette", 724/824, with 2, 16 - 19

1шт.

2

3131609R1

BODY

HOUSING, air cleaner, "Lautrette"

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

4шт.

3

3053339R1

CLAMP

pipe

1шт.

716920R1

SCREW

S M8 x 25 mm

1шт.

Q5330

M M8

1шт.

4

3057491R91

PRESCREENER

"Mann & Hummel", with 3, 6 - 8

1шт.

5

3059366R92

PRESCREENER

"Lautrette", with 3, 13 - 15

1шт.

6

716416R1

CLIP

CLAMP

2шт.

7

897522H1

HOPPER

SEAL

1шт.

8

716407R1

SIGHTGLASS

BOWL, dust

1шт.

9

3131602R1

CLAMP

2шт.

10

3134186R1

SEAL

ring, outer

1шт.

11

3134187R1

FILTER, ELEMENT

SPARE PART INSERT, normal dust conditions

1шт.

11

3134114R1

FILTER, ELEMENT

ELEMENT, FILTER INSERT, extreme dust conditions

1шт.

12

3134188R1

RESERVOIR

CUP oil, with clamp

1шт.

13

3136456R1

SPARE PART CLAMP, with hook

2шт.

14

3136455R1

CINTRE

BOW CLAMP, spring

2шт.

15

3131613R1

RESERVOIR

BOWL dust

1шт.

16

3131610R1

RING

SEAL

1шт.

17

3131611R1

FILTER

INSERT, normal dust conditions

1шт.

17

3134866R1

FILTER

INSERT, extreme dust conditions, 553/654

1шт.

17

3142177R1

FILTER, ELEMENT

ELEMENT, FILTER INSERT, normal dust conditions, 724/824

1шт.

18

3131612R1

RESERVOIR

CUP oil, with clamp, 553/654

1шт.

18

3142178R1

RESERVOIR

CUP oil, with clamp, 724/824

1шт.

19

3142196R1

COLLAR CLAMP

spring

1шт.

20

3131604R1

HOSE

Connecting

1шт.
