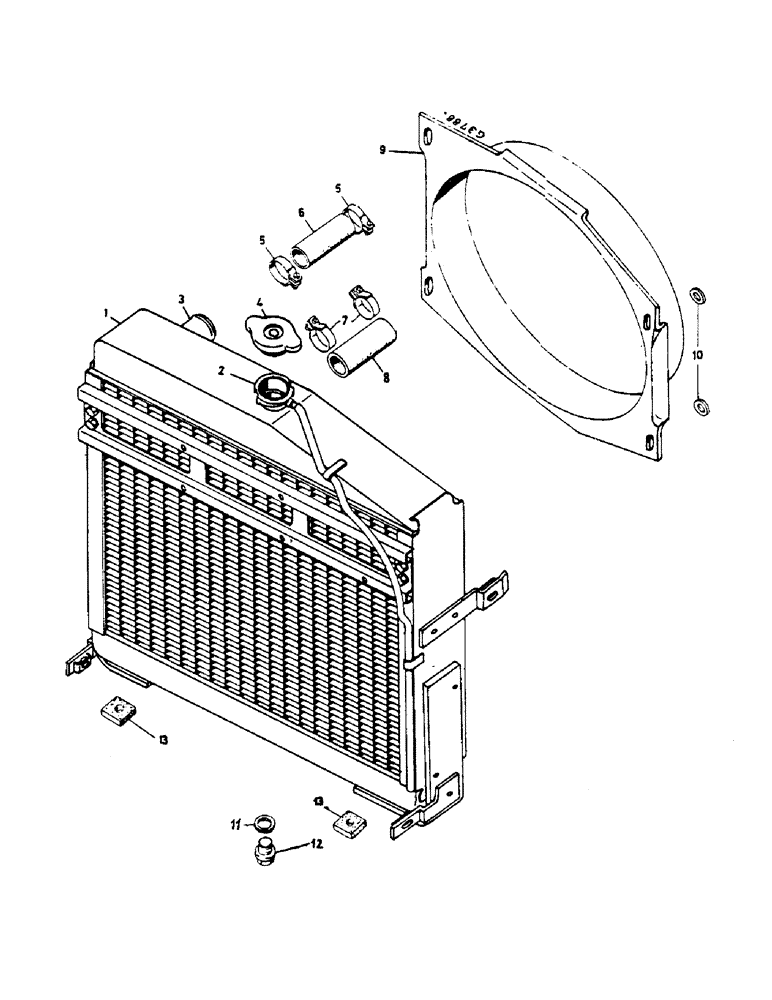

Запчасти Case IH 824 (046) - RADIATOR (02) - ENGINE

1

3131085R93

RADIATOR

1шт.

1

3137835R91

RADIATOR

1шт.

1

3137847R91

COOLER ASSY.

RADIATOR

1шт.

1

3139009R91

COOLER ASSY.

RADIATOR

1шт.

1

3139030R91

RADIATOR

1шт.

1

3139310R91

RADIATOR

1шт.

1

3142089R91

COOLER ASSY.

RADIATOR

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

2шт.

103323

LOCK WASHER,1/2"

2шт.

2

3134813R1

NECK FILLER

for 3131085R93, 3139310R91

1шт.

2

3134812R1

NECK FILLER

for 3137835R91, 3137847R91 3139009R91, 3139030R91, 3142089R91

1шт.

3

3058718R1

PIPE

inlet for 3137835R91, 3137847R91 3139009R91, 3139030R91, 3142089R91

1шт.

4

3134146R1

PLUG

pressure cooling

1шт.

5

3136498R1

CLAMP

hose

2шт.

6

3134507R1

HOSE,32.00 mm ID, 40.00 mm ID x 205.00 mm

Connecting

1шт.

7

3136501R1

CLAMP

hose

2шт.

8

3057428R1

HOSE,110.00 mm

Connecting

1шт.

9

3131086R1

FAN HOUSING

for 3131085R93, 3139310R91

1шт.

9

787606R1

CASE

HOUSING, fan for 3137835R91, 3137847R91 3139009R91, 3139030R91, 3142089R91

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

10

615009R1

WASHER

4шт.

11

712017R1

SEALING RING

1шт.

12

715552R1

PLUG

1шт.

13

47240D

PAD

radiator

2шт.
