Запчасти Case IH 824 (023) - CRANKCASE (02) - ENGINE

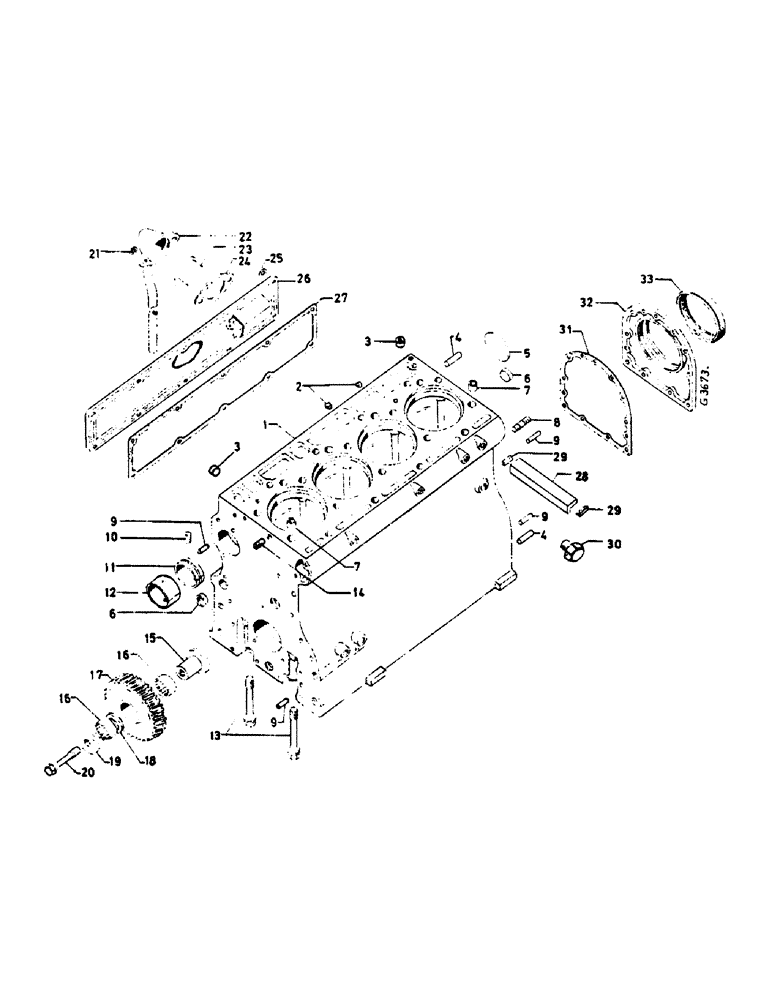

Схема запчастей Case IH 824 - (023) - CRANKCASE (02) - ENGINE
5
28
16
17
14
27
22
9
13
8
26
19
24
7
29
9
23
32
29
31
30
2
21
9
20
4
15
1
6
6
12
18
3
7
25
10
33
11
9
16
3

Артикул

Название

Примечание

Количество

3055001R37

CRANKCASE

553

1шт.

3144742R93

CRANKCASE ASSY

654

1шт.

3228620R92

CRANKCASE

724/824

1шт.

3144438R91

BEARING ASSY

PACKAGE, service, for crankshaft bearing cap 2 + 3, 553

1шт.

3144436R91

CRANKSHAFT BEARING

PACKAGE, service, for crankshaft bearing cap 4, 553

1шт.

3144436R91

CRANKSHAFT BEARING

PACKAGE, service, for crankshaft bearing cap 2+ 4, 654

1шт.

3144440R91

BEARING ASSY

PACKAGE, service, for crankshaft bearing cap 3, 654

1шт.

3144436R91

CRANKSHAFT BEARING

PACKAGE, service, for crankshaft bearing cap 5, 654

1шт.

3144440R91

BEARING ASSY

PACKAGE, service, for crankshaft bearing cap 2, 3 + 4, 724/824

1шт.

3144434R91

CRANKSHAFT BEARING

PACKAGE, service, for crankshaft bearing cap 5, 724/824

1шт.

2

103884

PLUG,Slotted, 1/4" NPT

4шт.

3

3136004R1

COVER

PLUG "U"

2шт.

4

141284

PIN,25.4mm OD x 31.75mm L

2шт.

5

172602

SUPPORT

expansion

1шт.

6

933537R1

PLUG,M25, Conical

"U"

2шт.

7

3055007R1

BUSHING

dowel

2шт.

8

3055270R1

STUD

1шт.

9

37-2614

DOWEL,3/8" x 7/8"

4шт.

10

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

3шт.

11

1806820C1

CAMSHAFT BEARING,57.98mm ID x 63mm OD x 18mm W

camshaft, 553

3шт.

11

1806820C1

CAMSHAFT BEARING,57.98mm ID x 63mm OD x 18mm W

camshaft, 654/724/824

4шт.

12

3055008R2

CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W

camshaft, front

1шт.

13

3138886R1

BOLT

bearing cap, 10,9, 553/654

1шт.

13

3138885R1

SCREW

bearing cap, 10,9, 654

1шт.

13

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

Bearing cap, 12,9, 553/654

1шт.

13

3136320R1

SCREW

bearing cap, 12,9, 654/724/824

1шт.

14

3055065R1

STUD

1шт.

15

3055373R1

CARRIER

idler gear

1шт.

16

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

2шт.

17

3055043R3

PINION

GEAR, idler, 68T

1шт.

18

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

1шт.

19

3055372R1

DISC

1шт.

20

3055374R1

BOLT

idler gear, LH thread

1шт.

21

3138687R1

RING

packing

2шт.

22

3055319R11

BREATHER

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

23

3055324R91

ELEMENT

1шт.

24

3138639R1

GASKET

1шт.

25

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

10шт.

26

3055312R11

COVER

crankcase side, 553

1шт.

26

3055314R11

COVER ASSY

crankcase side, 654/724/824

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

654/724/824

10шт.

103320

LOCK WASHER,5/16"

654/724/824

10шт.

27

3055394R1

GASKET

553

1шт.

27

3055393R2

GASKET

654/724/824

1шт.

28

3055214R1

SUPPORT

sealing

1шт.

29

714868R1

SEALING STRIP

sealing

2шт.

30

20990R1

PLUG

1шт.

31

3055215R1

GASKET

1шт.

32

3055216R1

RETAINER

oil seal

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

933570R1

WASHER

spring, 5/16 in.

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

33

3138701R91

SEAL

1шт.

3136802R93

GASKET KIT

553

1шт.

3136811R93

GASKET KIT

654/724/824

1шт.

Выбрано товаров: 56
