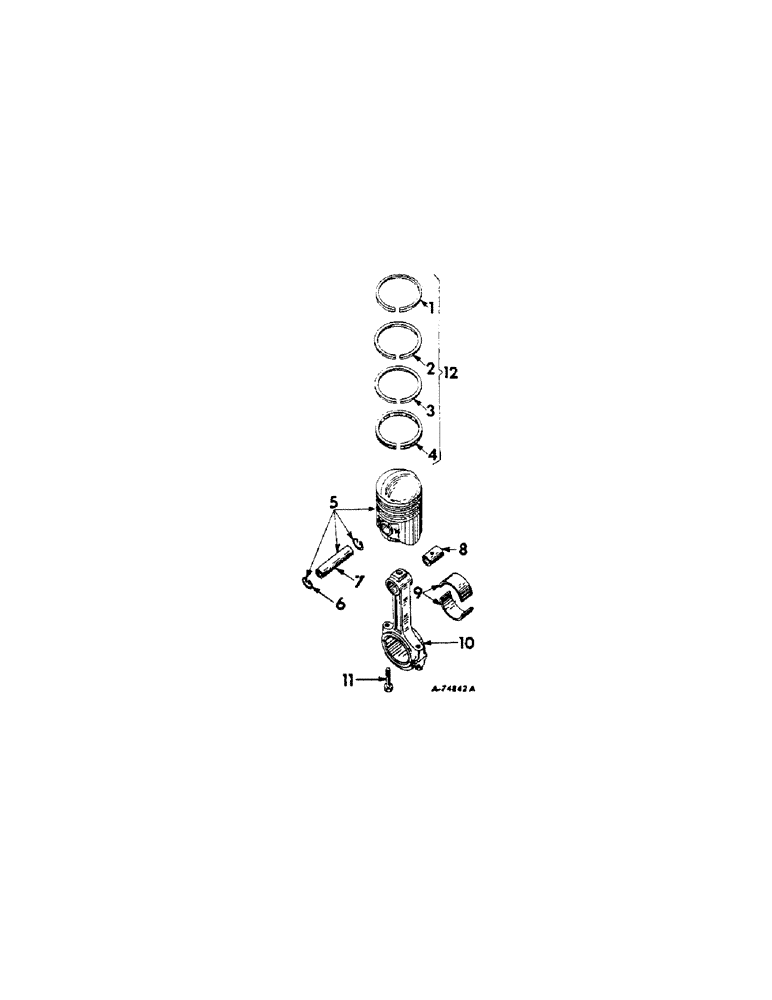

Запчасти Case IH 806 (C-05[A]) - CARBURETED ENGINE, CONNECTING RODS AND PISTONS, UP TO ENGINE SERIAL NO. 4996 (01) - ENGINE

1

387068R1

RING

compression piston, top or first groove, std and .010 O/S

6шт.

1

387070R1

RING, compression piston, top or first groove, .020 O/S

6шт.

1

387071R1

RING, compression piston, top or first groove, .030 O/S

6шт.

1

387072R1

RING, compression piston, top or first groove, .040 O/S

6шт.

2

382080R1

RING

compression piston, second groove, std and .010 O/S

6шт.

2

382085R1

RING, compression piston, second groove, .020 O/S

6шт.

2

382089R1

RING, compression piston, secondf groove, .030 O/S

6шт.

2

382093R1

RING, compression piston, second groove, .040 O/S

6шт.

3

387069R1

RING, compression piston, third groove, std & .010 O/S

6шт.

3

387073R1

RING, compression piston, third groove, .020 O/S

6шт.

3

387074R1

RING

compression piston, third groove, .030 O/S

6шт.

3

387075R1

RING, compression piston, third groove, .040 O/D

6шт.

4

388366R91

RING, oil regulating piston, fourth or bottom groove, std and .010 O/S

6шт.

4

388367R91

RING, oil regulating piston, fourth or bottom groove, .020 O/S

6шт.

4

388368R91

RING, oil regulating piston, fourth or bottom groove, .030 O/S

6шт.

4

388369R91

RING

oil regulating piston, fourth or bottom groove, .040 O/S

6шт.

5

382064R91

PISTON ASSY, std, gasoline

6шт.

5

382065R91

PISTON ASSY, .010 O/S, gasoline

6шт.

5

382066R91

PISTON ASSY, .020 O/S, gasoline

6шт.

5

382067R91

PISTON ASSY, .030 O/S, gasoline

6шт.

5

382068R91

PISTON ASSY, .040 O/S, gasoline

6шт.

5

382074R91

PISTON ASSY, std, gasoline high altitude or LP gas

6шт.

5

382075R91

PISTON ASSY, .010 O/S, gasoline high altitude or LP gas

6шт.

5

382076R91

PISTON ASSY, .020 O/D, gasoline high altitude or LP gas

6шт.

5

382077R91

PISTON ASSY, .030 O/S, gasoline high altitude or LP gas

6шт.

5

382078R91

PISTON ASSY, .040 O/S, gasoline high altitude or LP gas

6шт.

6

19517D

SPECIAL RING

RING, piston pin retainer

12шт.

7

278271R1

PISTON PIN

PIN, piston

6шт.

7

278326R1

PIN

piston, .005 oversize

6шт.

8

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

6шт.

9

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, std

6шт.

9

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 U/S

6шт.

9

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 U/S

6шт.

9

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 U/S

6шт.

9

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .030 U/S

6шт.

9

367630R91

BEARING SET, connecting rod, std, consists of six bearings, 367408R11

1шт.

9

377285R91

KIT

BGARING SET, connecting rod, .002 U/S, consists of six bearings, 367632R11

1шт.

9

376665R91

BEARING

SET, connecting rod, .010 U/S, consists of six bearings 376666R11

1шт.

9

376667R91

KIT

BEARING SET, connecting rod, .020 U/S, consists of six bearings, 376668R11

1шт.

9

372443R91

KIT

BEARING SET, connecting rod, .030 U/S, consists of six bearings, 367631R11

1шт.

10

367406R12

ROD

W/TWO BOLTS, 316366R1 and bushing, 364913R1, connecting

6шт.

11

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

12шт.

12

387158R92

KIT

RING SET, piston, consists of eighteen compression & six oil regulating rings, std and .010 O/S

1шт.

12

387159R92

KIT

RING SET, piston, consists of eighteen compression & six oil regulating rings, .020 O/S

1шт.

12

387160R92

KIT

RING SET, piston, consists of eighteen compression & six oil regulating rings, .030 O/S

1шт.

12

387161R92

RING SET, piston, consists of eighteeen compression & six oil regulating rings, .040 O/S

1шт.
