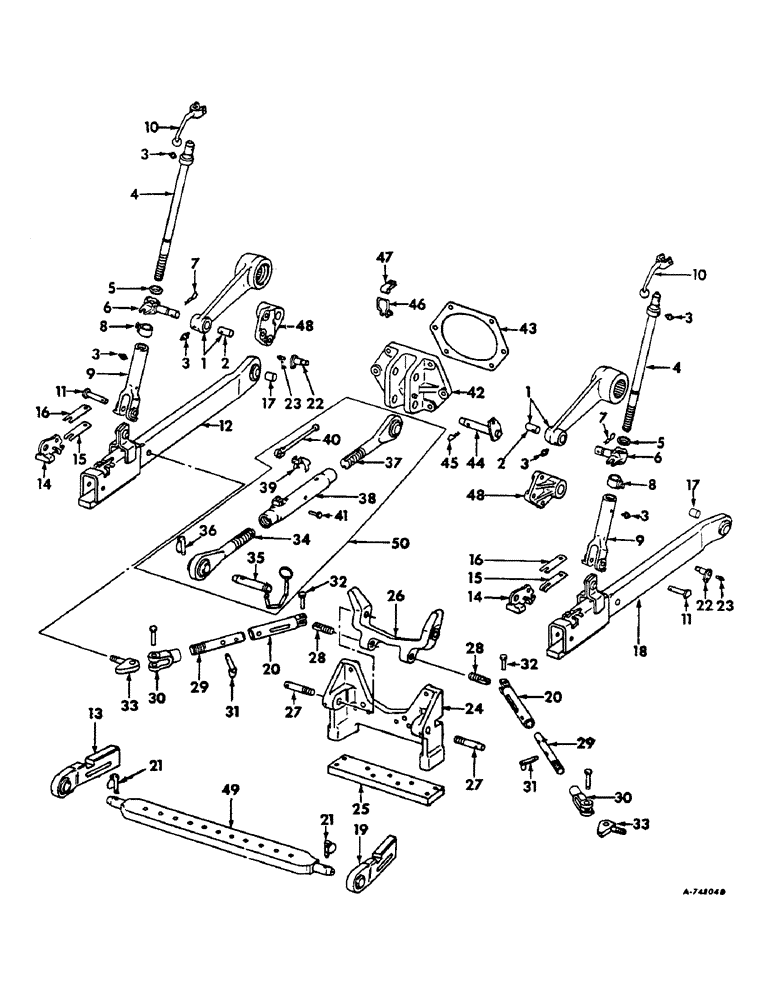

Запчасти Case IH 806 (K-09) - DRAWBARS AND HITCHES, THREE POINT HITCH Drawbars & Hitches

382155R92

ATTACHMENT, three point hitch, order 398362R92, tractors w/draft control & draft sensing, Farmall tractors up to serial no. 23000, International tractors up to serial no. 5700, consists of all unmarked parts and those marked unit A

1шт.

393141R91

ATTACHMENT, three point hitch, order 398366R92, tractors w/draft control & draft sensing, Farmall tractor serial no. 23001 to 33162, International tractor serial no. 5701 to 7100 consist of all unmarked parts and those marked unit B

1шт.

1

382156R11

ARM

ASSY, rockshaft

2шт.

2

383357R1

BUSHING,28.56mm ID x 33.38mm OD x 63.5mm L

rockshaft arm

2шт.

3

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

6шт.

4

382165R11

ADJUSTMENT SCREW,1" - 5 x 24.69"

SCREW ASSY, leveling

2шт.

617057R1

PIN,1/4" x 1", Coiled

2шт.

5

382168R1

WASHER

pivot

2шт.

6

383990R2

PIVOT ASSY.

PIVOT, leveling screw

2шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga

2шт.

7

520175R1

CLIP

PIN, quick attachable cotter

2шт.

8

383982R1

COLLAR

COLLAR, vertical float lock

2шт.

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8 x 1 cone-pt. sq-hd set

2шт.

9

383988R2

FORK

YOKE, leveling screw

2шт.

10

523861R2

HANDLE

HANDLE, leveling screw

2шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

2шт.

11

383991R1

PIN,Headed, 7/8" x 3 3/8", Drilled

leveling screw yoke

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

12

382180R91

LINK ASSY, front section lower LH, unit A

1шт.

12

393144R91

LINK AND BALL ASSY, front section lower LH, unit B

1шт.

13

382189R11

LINK ASSY, LH rear section lower

1шт.

20126R1

PIN,1/2" x 2", Coiled

1шт.

14

382191R2

LOCK ASSY

LATCH, lower link

2шт.

15

382192R1

SPRING

lower link latch

2шт.

16

382193R1

SPRING

stiffener

2шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

SCREW, 5/16-24 x 1/2 hex-hd cap

2шт.

17

383361R1

BUSHING

front lower link ball

2шт.

18

382181R91

LINK ASSY, front section lower RH, unit A

1шт.

18

393145R91

LINK AND BALL ASSY, front section lower RH, unit B

1шт.

19

382188R11

LINK ASSY, RH rear section lower

1шт.

20126R1

PIN,1/2" x 2", Coiled

1шт.

20

383358R11

TUBE

HOUSING ASSY, lateral limiter

2шт.

21

385159R91

PIN

ASSY, drawbar

2шт.

22

382194R2

PIN

lower link

2шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

SCREW, 1/2-13 x 1-18 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

24

383385R3

SPROCKET ASSY.

SUPPORT, drawbar

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8-11 x 1-3/4 hex-hd cap, Farmall tractors up to serial no. 20748, International tractors up to serial no. 5129

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap, Farmall tractors with serial no. 20749 & above, International tractors with serial no. 5130 & above

1шт.

25

382198R1

BAR

PLATE, drawbar support

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex hd cap

4шт.

26

382386R2

ARM

stabilizer control

1шт.

27

383362R2

AXLE PIN,25.4mm OD x 106.68mm L

SHAFT, stabilizer control arm

2шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt hex.

2шт.

119179

PIN, 3/16 x 1-7/8 cotter

2шт.

616252R1

LOCK PIN,3/8" x 2 1/8", Slotted

Pin, 3/8" x 2 1/8", Slotted

2шт.

28

382390R1

BOLT (SPREADER),1 1/4" - 7 x 2.38"

EYEBOLT, stabilizer front

2шт.

29

386198R1

STUD

lateral limiter

2шт.

19903R1

PIN,1/2" x 1 3/4", Coiled

2шт.

30

386200R91

YOKE

ASSY, lateral limiter

2шт.

31

383363R11

AXLE PIN

PIN ASSY, lockout

2шт.

520175R1

CLIP

PIN, quick attachable cotter

2шт.

32

384852R1

AXLE PIN

PIN, stabilizer

4шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

4шт.

33

382397R1

BOLT,3/4" - 16 x 2", Drilled

EYEBOLT, stabilizer rear

2шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex.

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

2шт.

34

384848R11

LINK

SCREW ASSY, LH thread, optional with 386048R91

1шт.

34

386048R91

LINK

SCREW ASSY, LH thread, optional with 384848R91

1шт.

34

395030R1

SCREW

ASSY, LH thread, for heavy duty use

1шт.

35

380563R91

PIN

ASSEMBLY, upper link implement

1шт.

36

517758R91

SPLIT PIN/SAFETY PIN

PIN, implement pin retaining

1шт.

37

384849R11

LINK

SCREW ASSY, RH thread, optional with 386049R91

1шт.

37

386049R91

LINK

SCREW ASSY, RH thread, optional with 384849R91

1шт.

37

395033R1

SCREW

ASSY, RH thread, for heavy duty use

1шт.

19791R1

PIN,1/4" x 1 1/8", Coiled

2шт.

38

384850R11

TURNBUCKLE

ASSY, upper link

1шт.

38

404633R1

BUCKLE

TURNBUCKLE ASSY, upper link, for heavy duty use

1шт.

39

395108R1

CLIP

turnbuckle handle spring, also order handle, 392204R1, for Farmall tractors w/serial no. 32310 & below & International tractors w/serial no. 6976 & below

1шт.

39

395026R1

CLIP, turnbuckle handle spring, for heavy duty use

1шт.

40

392204R1

HANDLE

upper link turnbuckle, also order clip, 395108R1, for Farmall tractors w/serial no. 32310 & below & International tractors w/serial no. 6976 & below

1шт.

41

W4435

PIN

3/8 x 1-3/8 headed

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

42

382212R11

BRACKET

ASSEMBLY, upper link

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

6шт.

43

383330R1

GASKET

draft control adj opening cover

1шт.

44

382210R11

PIN

ASSY, upper link bracket

1шт.

45

520175R1

CLIP

PIN, quick attachable cotter

1шт.

46

378403R1

ELECTRICAL WIRE

BRACKET, upper link storage

1шт.

47

378404R1

FASTENER

CLIP, upper link storage bracket

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

48

384025R1

BRACKET

lockout, not included in three-point hitch attachment

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

6шт.

49

374150R1

DRAWBAR

cross, not included in three-point attachment

1шт.

50

384851R92

LINK

ASSY, upper

1шт.

50

404631R91

NO LONGER SERVICED

LINK ASSY, upper, replaces 395028R91, for heavy duty use

1шт.

381039R91

PARTS ACCESSORY, three point hitch cross drawbar, consists of, (2) bracket 384025R1, (1) drawbar 374150R1, (6) screw 271562

1шт.

380579R91

BUSHING

PARTS ACCESSORY, bushing & pin adatper, for use w/category I implements when mounting on category II hitch, consists of

1шт.

380581R1

BUSHING

upper link category #1 short

1шт.

380582R1

BUSHING

upper link category #1 long

1шт.

380583R1

BUSHING

lower link category #1 short

2шт.

380584R1

BUSHING

lower link category #1 long

2шт.

380580R91

PIN

ASSY, upper link implement

1шт.

11484R

BUSHING

SPACER, lower long bushing

2шт.
