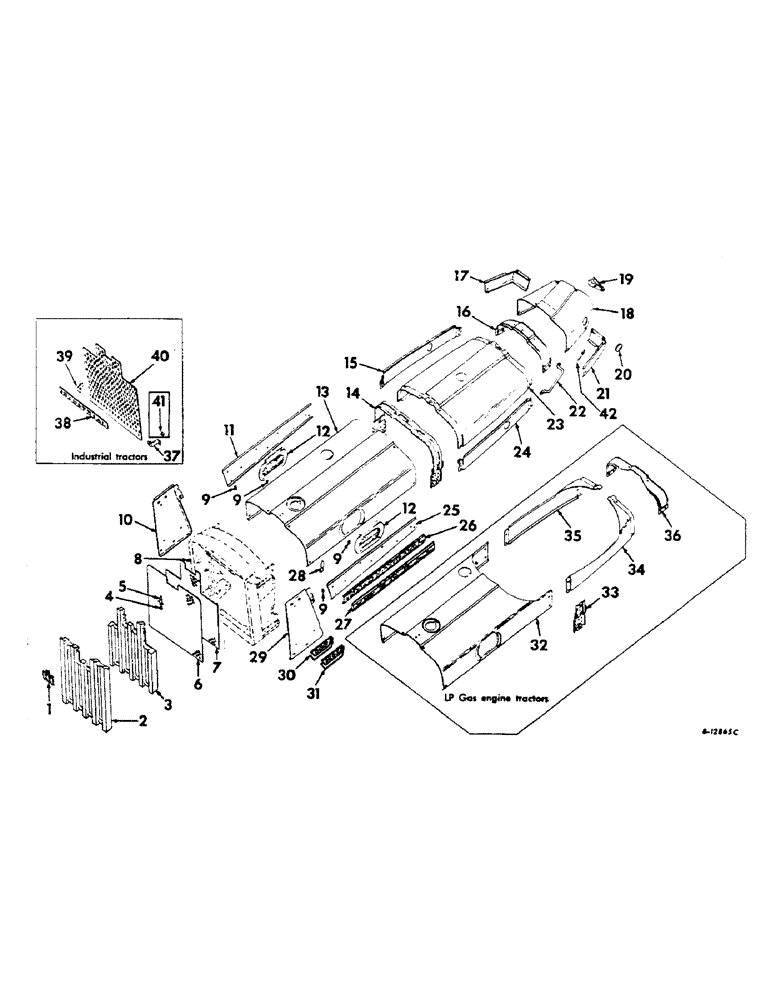

Запчасти Case IH 806 (A-07) - CHASSIS, RADIATOR & SHEET METAL, HOOD AND RADIATOR GRILLE Chassis, Radiator & Sheet Metal

1

2751809R1

DECAL

PRODUCT GRAPHIC, IH emblem, die casting, optional with 2751847R1

1шт.

1

2751847R1

PRODUCT GRAPHIC

IH emblem, plastic, optional with 2751809R1

1шт.

385059R1

SCREW,Cross Flat Hd, #10 - 24 x 7/8"

10-24 x 7/8 cr-rec-fil hd mach

2шт.

2

384122R1

GRILLE, radiator, Farmall tractors

1шт.

3

384123R1

GRILLE, radiator, International tractors

1шт.

3

387736R1

GRILLE, radiator, International tractors with shock proof head lights

1шт.

4

367833R1

SPRING

grille latch pin

1шт.

5

384124R2

PIN, grille latch

1шт.

17074R1

LOCK PIN,6.35mm OD x 88.9mm L, Coiled

Pin, 1/4" x 3 1/2", Slotted

1шт.

6

379999R3

GRILLE

SCREEN, radiator grille, Farmall tractors

1шт.

118279

PIN, no. 10 x 1/2 escutcheon

15шт.

103337

WASHER,#6

15шт.

7

380000R3

SCREEN, radiator grille, International tractors

1шт.

7

387737R3

SCREEN, radiator grille, International tractors with shock proof head lights

1шт.

118-279

PIN, no. 10 x 1/2 escutcheon

15шт.

103337

WASHER,#6

15шт.

8

368175R1

BUMPER

grille

2шт.

9

376787R1

WASHER

RETAINER, screw

8шт.

10

378630R11

PANEL ASSY, RH radiator support, Farmall tractors

1шт.

10

378632R11

PANEL ASSY, RH radiator support, International tractors

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

3шт.

11

378634R1

PANEL, RH front hood side, Farmall tractor serial no. 33162 & below, International tractor serial no. 7100 & below

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood side panel thumb

2шт.

11

396342R1

PANEL

RH front hood side, Farmall tractor serial no. 33163 & above, International tractor serial no. 7101 & above

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood side panel thumb

2шт.

12

378627R1

COVER

LH front hood access

1шт.

12

378627R1

COVER

RH front hood access

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood access cover thumb

2шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

13

378624R12

HOOD ASSY, front, gasoline, Farmall tractor serial no. 33162 & below, International tractor serial no. 7100 & below

1шт.

13

378626R12

HOOD ASSY, front, diesel, Farmall tractor serial no. 33162 & below, International tractor serial no. 7100 & below

1шт.

ref #13 (P/N 378626R12) - hood ornament P/N 369180R1

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

4шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap, used only with .437 dia round holes in hood

8шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/washer

8шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 hex. washer hd cap

2шт.

13

396338R11

HOOD ASSY, front, gasoline, Farmall tractor serial no. 33163 & above, International tractor serial no. 7101 & above

1шт.

13

396339R11

HOOD ASSY, front, diesel, Farmall tractor serial no. 33163 & above, International tractor serial no. 7101 & above

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/washer

8шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 hex. washer hd cap

2шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

4шт.

14

395280R92

REINFORCEMENT

ASSY, rear hood front

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

6шт.

179814

SPACER

4шт.

15

378639R1

PANEL, RH rear hood side, Farmall tractors w/side headlights

1шт.

15

378671R1

PANEL

RH rear hood side, all International tractors and Farmall tractors w/flat top deluxe fenders & adj headlights

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

16

378640R11

REINFORCEMENT ASSY, rear hood rear

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW. 516-18 x 1/2 hex-hd cap

4шт.

17

382643R1

HOUSING, steering support lower RH

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

1шт.

18

382644R1

HOUSING, steering & gear selector support

1шт.

18

385797R1

HOUSING, steering & gear selector support, all wheel drive tractors

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

8шт.

18

391196R1

HOUSING, steering and gear selector support, tractors with cab

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

10шт.

19

383127R1

BRACKET, support housing mounting

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

187758

PLUG,2 1/2"

torque amplifier opening button

1шт.

21

397887R1

HOUSING, steering support lower LH, replaces 382642R1

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer HD bevel cap

1шт.

22

384343R1

HANDLE

operators mounting assist LH

1шт.

21534R1

BOLT,Hex, 5/16" - 18 x 1"

SCREW, 5/16-18 x 1 CD or zn-pltd hex-hd cap

1шт.

21535R1

SCREW, 5/16-18 x 1-1/4 CD or zn-pltd hex-hd cap

1шт.

23

381412R1

HOOD

rear

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

24

378638R1

PANEL, LH rear hood side, Farmall tractors w/side headlights

1шт.

24

378670R1

PANEL, LH rear hood side, all International tractors and Farmall tractors w/flat top deluxe fenders & adj headlights

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

25

378633R1

PANEL, LH front hood side, Farmall tractor serial no. 33162 & below, International tractor serial no. 7100 & below

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood side panel thumb

2шт.

25

396341R1

PANEL

LH front hood side, Farmall tractor serial no. 33163 & above, International tractor serial no. 7101 & above

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood side panel thumb

2шт.

26

381553R1

PRODUCT GRAPHIC

PLATE, International name

2шт.

370786R1

FASTENER

tubular clip

14шт.

27

377796R1

PRODUCT GRAPHIC

PLATE, McCormick Farmall name

2шт.

370786R1

FASTENER

tubular clip

14шт.

28

369173R1

SPRING

hood panel

6шт.

110633

NUT,#10-24

6шт.

29

378629R11

PANEL ASSY, LH radiator support, Farmall tractors

1шт.

29

378631R11

PANEL ASSY, LH radiator support, International tractors

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

3шт.

30

381557R1

PRODUCT GRAPHIC

PLATE, 806 model symbol

2шт.

30

381559R1

PLATE, 806 LP gas model symbol

2шт.

30

382867R1

SYMBOLS

PLATE, 806 hi-clear model symbol

2шт.

30

381558R1

PRODUCT GRAPHIC

PLATE, 806 diesel model symbol

2шт.

370786R1

FASTENER

tubular clip

4шт.

31

384421R1

PLATE, 2806 model symbol

2шт.

370786R1

FASTENER

tubular clip

4шт.

32

381409R11

HOOD ASSY, front

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

4шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap, used only with .437 dia round holes in hood

8шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/washer

8шт.

33

380423R11

SUPPORT ASSY, rear hood front

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

6шт.

179814

SPACER

4шт.

34

383840R1

HOOD, LH rear

1шт.

35

383841R1

HOOD, RH rear

1шт.

36

380431R11

REINFORCEMENT ASSY, rear hood, rear

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW. 5/16-18 x 1/2 hex-hd cap

4шт.

37

384428R11

BRACKET ASSY, radiator guard gille LH

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

. 3/8-16 x 7/8 hex-hd cap

1шт.

38

384422R1

PRODUCT GRAPHICS, industrial name plate

1шт.

166645

SHEAVE

SCREW, 10-24 x 3/8 rd-hd-cr-rec tapping, type D

3шт.

B32120

WASHER

name plate retaining

1шт.

39

384427R11

BRACKET ASSY, radiator guard grille, RH

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex hd cap

1шт.

40

384424R2

GRILLE, radiator guard

1шт.

40

387745R11

GRILLE ASSY, radiator guard, tractors with shock proof headlights

1шт.

386451R1

SCREW,Hex Wshr Hd, 5/16" - 18 x 1"

5/16-18 x 1 hex. washer hd

4шт.

41

(Not used)

1шт.

42

2752210R1

PRODUCT GRAPHIC, all wheel drive emblem FASTENER, tubular clip

4шт.
