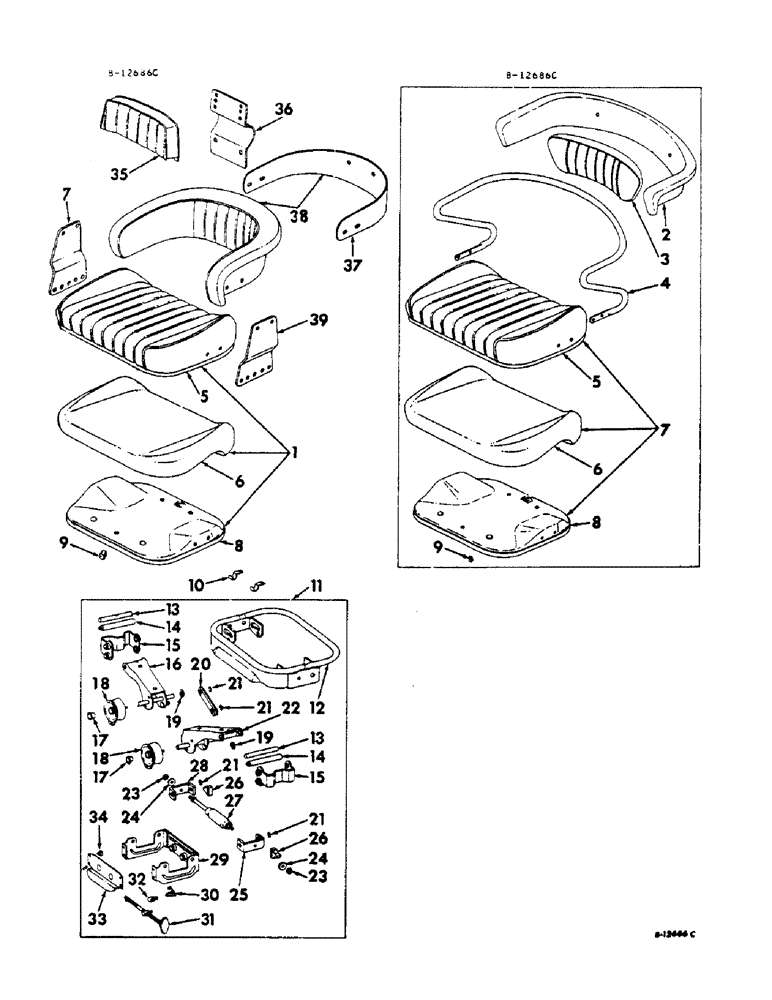

Запчасти Case IH 806 (M-04) - SEAT, OPERATORS PLATFORM & MISCELLANEOUS, VERTICAL ACTING SEAT (10) - OPERATORS PLATFORM
№
Артикул
Название
Примечание
Количество
1
386911R91
CUSHION
ASSY, seat
1шт.
2
380682R1
SUPPORT
rack, Farmall tractors 501 to 11548, International tractors, Serial Range: 501-2729
1шт.
19905R1
SCREW, 1/4-20 x 7/8 C-Z cr-rec-truss-hd mach
5шт.
380683R1
WASHER, spring
5шт.
3
380684R91
SEAT CUSHION
CUSHION ASSY, back, Farmall tractors 501 to 11548, International tractors, Serial Range: 501-2729
1шт.
4
381247R1
SUPPORT, tubular back, Farmall tractors 501 to 11548, International tractors, Serial Range: 501-2729
1шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
19951R1
SCREW, 3/8-16 x 13/16 C-Z cr-rec-truss-hd mach
4шт.
138542
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
5
386913R1
COVER
ING ASSY, seat cushion
1шт.
6
386912R1
PAD, moulded seat
1шт.
7
387173R1
SUPPORT
back cushion RH, Farmall tractors 11549 up, International tractors 2730 up
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
SCREW, 3/8-16 x 7/8 C-Z hex-hd cap
2шт.
138542
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
8
381245R1
PAN ASSY, seat
1шт.
9
379385R1
CLIP
covering retainer
4шт.
10
379321R1
CLAMP,27.74mm ID, 8.71mm Bolt Hole, J Type
seat
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
11
379319R92
SUPPORT
SUSPENSION ASSY, vertical acting
1шт.
12
380724R1
FUNNEL
FRAME, hanger
1шт.
13
380722R1
SHAFT
short link upper
2шт.
443039
PIN
1/4 x 1-1/4 type 3 groove
2шт.
14
380723R1
SHAFT
short link lower
2шт.
443148
GROOVED PIN,3/16" x 1", Type E
Pin, Grooved, 3/16" x 1", Type E
2шт.
15
380721R1
DRAG LINK
LINK, short
2шт.
16
380713R1
LEVER
LH spring
1шт.
17
193643R1
BUSHING,19.18mm ID x 25.4mm OD x 14.29mm L
BEARING, flanged
2шт.
18
380712R1
INSULATOR BLOCK
SPRING, rubber
2шт.
19
380718R1
WASHER
49/64 x 1-1/4 x 14 ga.
2шт.
20
380717R1
LINK
stablilizer
1шт.
21
370290R1
SNAP RING,#50, .392" Dia, E-Type
Ring, Retaining, #50, .392" Dia, E-Type
4шт.
22
380714R1
LEVER
RH spring
1шт.
23
SL716
WASHER
13/32 x 1-1/8 x 14 ga
2шт.
24
381239R1
RUBBER WASHER
rubber
2шт.
25
380715R1
YOKE
BRACKET, LH shock
1шт.
26
381238R1
BUMPER
rubber
2шт.
27
372751R91
SHOCK ABSORBER
ABSORBER, shock
1шт.
274635
PIN
NUT, 3/8-24 C-Z hex. lock
2шт.
28
380716R1
YOKE
BRACKET, RH shock
1шт.
29
380711R2
HOUSING
spring
1шт.
30
380726R1
SPRING
INDICATOR, weight
1шт.
31
380725R91
STUD
ASSEMBLY, adjuster
1шт.
142488
GROOVED PIN,1/8" x 1", Type A
Pin, Grooved, 1/8" x 1", Type A
2шт.
32
372739R1
PIN, adjusting
1шт.
33
380719R1
SUPPORT
BULKHEAD, front
1шт.
34
380720R1
BOLT,5/16"- 18 x 0.75"
front bulkhead
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
4шт.
35
387177R91
CUSHION
ASSY, upper back, Farmall tractors 11549 up, International tractors 2730 up
1шт.
36
387178R1
SUPPORT
upper back cushion, Farmall tractors 11549 up, International tractors 2730 up
1шт.
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
SCREW, 5/16-18 x 5/8 C-Z hex-hd cap
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
37
387175R1
LARGE PLATE
PLATE, cover, Farmall tractors 11549 up, International tractors 2730 up
1шт.
393701R1
SCREW,Btn Hd, 3/8" - 16 x 3/4"
3/8-16 x 3/4 button-hd soc cap
2шт.
161857
SHAFT
8-15 x 3/8 cr-rec pan-hd type A tapping
3шт.
138542
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
2шт.
38
387174R91
CUSHION
ASSY, back, Farmall tractors 11549 up, International tractors 2730 up
1шт.
39
387172R1
SUPPORT
back cushion LH, Farmall tractors 11549 up, International tractors 2730 up
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
SCREW, 3/8-16 x 7/8 C-Z hex-hd cap
2шт.
138542
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
2751019R1
DECAL
PRODUCT GRAPHICS, seat adj decal
1шт.
Выбрано товаров: 66
