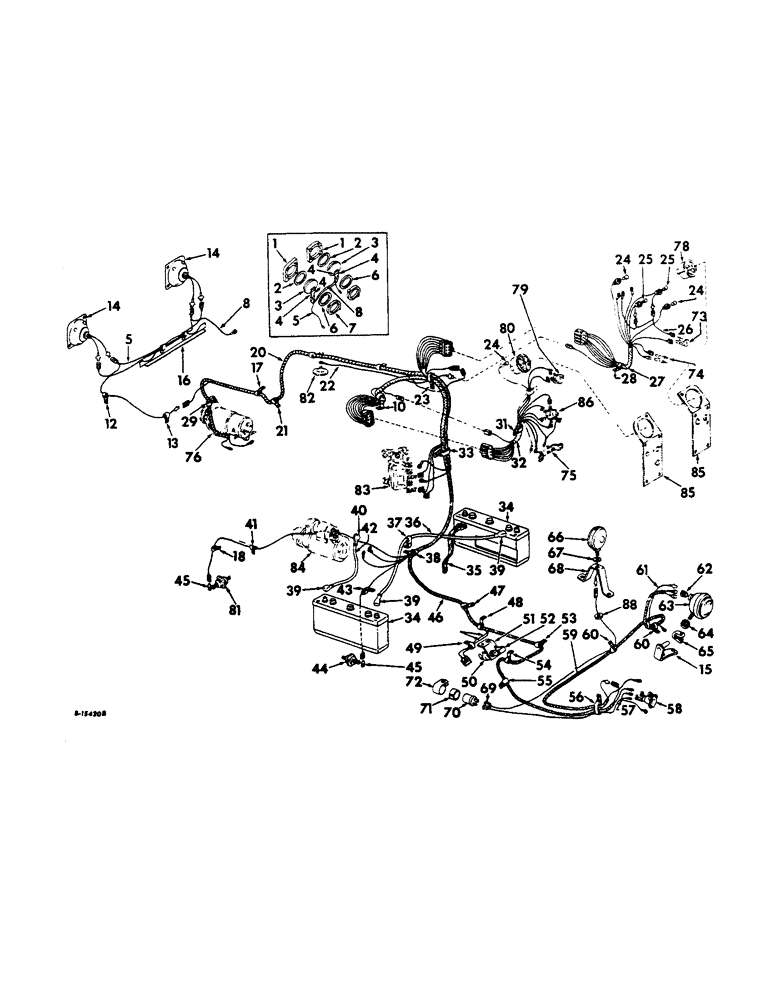

Запчасти Case IH 806 (G-30) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, INTERNATIONAL DIESEL ENGINE TRACTORS WITH GENERATOR (06) - ELECTRICAL SYSTEMS

1

377302R1

HOUSING, head light, tractors without shock proof head lights

2шт.

153326

SCREW,Cross Fil Hd, #10 - 24 x 1 1/2"

10-24 x 1-1/2 C-Z cr-rec-fil-hd mach

4шт.

153797

SCREW, 1/4-20 x 1 C-Z cr-rec-fil-hd mach

6шт.

2

377303R1

RING

head light retaining, front, tractors without shock proof head lights

2шт.

3

373662R91

LAMP

UNIT ASSY, head light sealed beam, tractors without shock proof head lights

2шт.

4

377300R91

CABLE ASSY, head light junction, tractors without shock proof head lights

4шт.

5

377299R91

CABLE ASSY, harness to head light junction, up to serial no. 7100

1шт.

5

396500R1

CABLE ASSY, harness to head light junction, serial no. 7100 & above

1шт.

6

377304R1

SPECIAL RING

RING, head light retaining, rear, tractors without shock proof head lights

2шт.

7

377305R1

RING

head light clamping, tractors without shock proof head lights

2шт.

8

383592R91

CABLE ASSY, head light, Serial Range: junction-ground

1шт.

10

370383R1

CLIP

rear cable harness, on steering & gear selector support LH front mounting bolt

1шт.

12

366460R1

CABLE CLIP

CLIP, head light cable, on radiator mounting plate bracket upper mounting bolt

1шт.

13

366460R1

CABLE CLIP

CLIP, headlight cable, on air cleaner bracket

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

387730R91

LIGHT

ASSY, shock proof head, only serviceable item is sealed beam unit, 373662R91

2шт.

387731R1

SPACER, head light

6шт.

156327

SCREW, 1/4-20 x 1-1/4 C-Z cr-rec flat-hd mach

6шт.

15

372355R11

SUPPORT

ASSY, combination rear light

1шт.

102635

NUT,3/8"-16, G5

2шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

2шт.

16

383857R21

BRACE ASSY, head light mounting

1шт.

17

384554R1

CLIP

cable harness, on thermostat housing LH rear mounting bolt

1шт.

18

362667R1

CLIP

engine oil pressure switch cable, on push rod cover front mounting bolt

1шт.

20

384471R91

HARNESS

ASSY, front main cable

1шт.

21

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on fuel tank RH support

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

383593R91

CABLE ASSY, fuel gauge sending unit to multiple connector

1шт.

23

362123R1

CLIP

front & rear main harness, long

1шт.

24

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer & gauge cluster

3шт.

25

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt, oil & amp tellite flasher

2шт.

26

383596R91

CABLE

ASSY, key switch to gauge cluster junction

1шт.

27

383609R91

HARNESS

ASSY, RH panel cable

1шт.

28

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, RH panel harness, on range transmission selector drive shaft bushing rear mounting bolt

1шт.

29

384554R1

CLIP

cable harness, on generator or alternator adjustment bolt

1шт.

31

384557R1

CLIP

LH panel cable harness, on junction block RH mounting bolt

1шт.

32

384465R91

HARNESS

ASSY, LH panel cable

1шт.

33

384557R1

CLIP

front & rear main harness, short

1шт.

34

392244R91

BATTERY, Prestolite 3EH-A9Y, 6 volt

2шт.

35

378760R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

36

383617R91

CABLE

ASSY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASSY, battery cable

2шт.

37

370383R1

CLIP

battery to battery cable

1шт.

38

362123R1

CLIP

rear main harness, on clutch housing cover RH front mounting bolt

1шт.

39

383619R1

COVER

battery cable terminal, large

1шт.

40

364910R1

BOOT

COVER, battery terminal

1шт.

41

384555R1

CLIP

engine oil pressure switch cable, on clutch housing upper LH front tapped hole

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.

42

383726R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, battery cable

1шт.

43

384556R1

CLAMP

CLIP, transmission oil pressure switch cable, on gear selector LH support front mounting bolt

1шт.

44

376855R92

SWITCH

transmission oil pressure

1шт.

45

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch

2шт.

46

384470R91

HARNESS

ASSY, rear main cable

1шт.

47

366460R1

CABLE CLIP

CLIP, rear main harness, on rear frame front cover LH front mounting bolt

1шт.

48

384558R1

CLIP

rear main harness, on rear frame cover LH side front mounting bolt

1шт.

49

366460R1

CABLE CLIP

CLIP, safety switch cable

1шт.

50

382728R91

SWITCH

ASSY, safety starting

1шт.

51

384045R1

SUPPORT

BRACKET, safety starting switch

1шт.

102635

NUT,3/8"-16, G5

1шт.

14991R1

BOLT

3/8-16 x 5/8 shor sq-nk carriage

1шт.

52

384046R1

STEM

ROD, safety switch

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cotter

1шт.

53

384558R1

CLIP

cable harness, on rear frame cover LH side 3rd from front mounting bolt

1шт.

54

384559R1

CLIP

cable harness, on platform, 2nd from rear mounting bolt, assemble between platform & fender sheet

1шт.

55

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on LH fender support plate

1шт.

102635

NUT,3/8"-16, G5

1шт.

79837

SCREW, 3/8-16 x 3/4 hex-hd cap

1шт.

321

WASHER, 3/8 med lock

1шт.

56

362666R1

CLIP

rear main harness, on lower rear bolt thru fender sheet

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

57

377119R91

CABLE ASSY, breakaway connector, Serial Range: socket-ground

1шт.

58

362002R92

SOCKET

ASSY, electrical breakaway

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

59

383614R92

CABLE ASSY, breakaway connector socket to rear light

1шт.

60

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, breakaway connector socket cable, on combination rear light bracket RH mounting bolt

2шт.

61

377120R92

CABLE ASSY, combination, Serial Range: light-ground

1шт.

62

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear light

1шт.

63

377102R91

NO LONGER SERVICED

LIGHT ASSY, combination rear and tail, tractors w/o shock proof lights, only serviceable items are lamp, 455490 and unit, 371461R91

1шт.

63

387729R91

LIGHT

ASSY, combination rear & tail, tractors with shock proof lights, only serviceable items are sealed beam unit, 371461R91 & lamp, 455490

1шт.

102637

NUT,1/2"-13, G5

1шт.

64

365503R1

SPACER

combination rear light

1шт.

65

350920R1

CLAMP

combination rear light

1шт.

66

394129R91

LIGHT

ASSY, flashing warning

1шт.

120371

NUT,1/2"-20, G5

Only serviceable items are lamp, 9417866 and lens, guide, 396585R1 or lens, Dietz, 899280R1 1/2"-20, G5

1шт.

67

394262R1

WASHER

GASKET, flashing warning light

1шт.

68

394337R1

BRACKET, flashing light

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

69

394334R91

CABLE ASSY, Serial Range: flasher-light

1шт.

70

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

71

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

72

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

73

REF

INSTRUCTION

SWITCH ASSY, ignition, refer to engine controls and instruments listing, section H

1шт.

74

REF

INSTRUCTION

HOUSING ASSY, fuse, refer to engine controls and instruments listing, section H

1шт.

75

REF

INSTRUCTION

BLOCK ASSY, junction, refer to engine controls and instuments listing, section H

1шт.

76

REF

INSTRUCTION

GENERATOR ASSY, refer to generator listing, this section

1шт.

78

REF

INSTRUCTION

CLUSTER ASSY, gauge, refer to engine controls and instruments listing, section H

1шт.

79

REF

INSTRUCTION

SWITCH ASSY, pushbutton, refer to engine controls and instruments listing, section H

1шт.

80

REF

INSTRUCTION

TACHOMETER ASSY, refer to engine controls and instruments listing Section H

1шт.

81

REF

INSTRUCTION

SWITCH ASSY, engine oil pressure, refer to crankcase and related parts listing, section C

1шт.

82

REF

INSTRUCTION

SENDING UNIT ASSY, fuel gauge, refer to fuel tank supports and piping listing, section E

1шт.

83

REF

INSTRUCTION

REGULATOR ASSY, voltage, refer to voltage regulator listing, this section

1шт.

84

REF

INSTRUCTION

MOTOR ASSY, cranking, refer to cranking motor listing, this section

1шт.

85

REF

INSTRUCTION

PANELS, instrument LH and RH, refer to engine controls and instruments listing, section H

1шт.

86

REF

INSTRUCTION

SWITCH ASSY, lighting, refer to engine controls and instruments listing, section H

1шт.

88

NLS

NO LONGER SERVICED

flasher warning light fender

1шт.

394473R91

CABLE ASSY, flashing warning light jumper, used to provide a means of omitting flashing feature of the warning light

1шт.

177227

SPARE PART

GROMMET, flasher warning light fender

1шт.
