Запчасти Case IH 806 (G-07) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

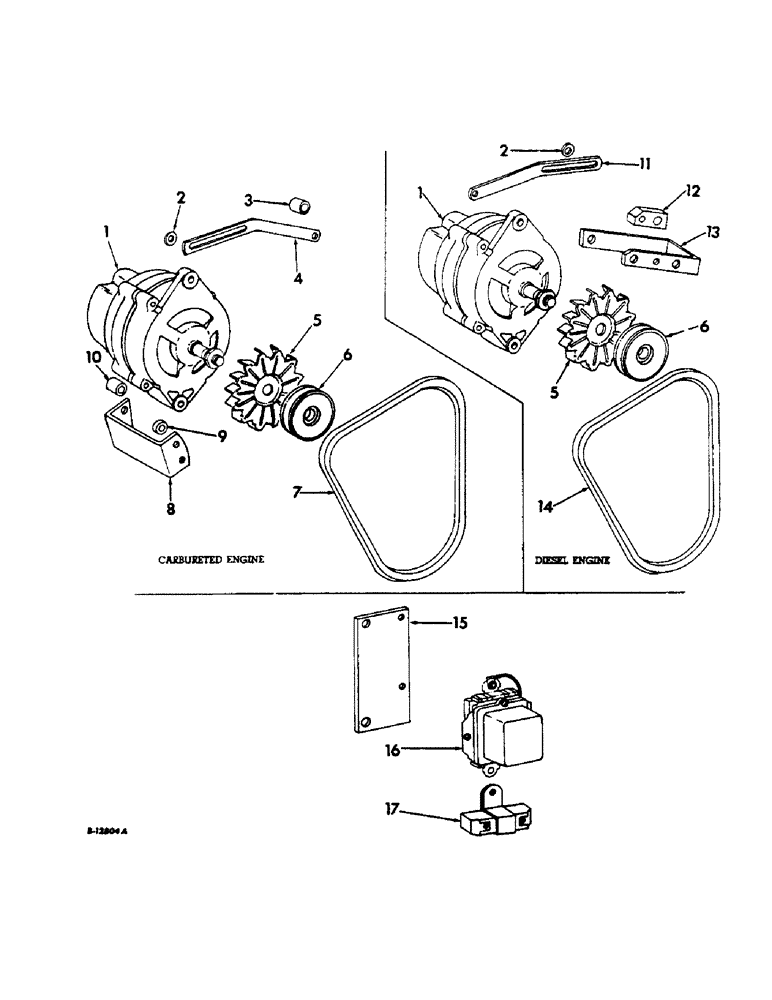

Схема запчастей Case IH 806 - (G-07) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS
4
6
5
10
6
15
9
8
14
1
16
12
17
13
11
7
1
3
5
2
2

Артикул

Название

Примечание

Количество

1

1100687

SPARE PART ALTERNATOR GENERATOR ASSY, 255384C91, for components see list of parts under details of alternator generator

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

1

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

121743

CHAIN,#12 - 24

12-24 C-Z hex. mach screw

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

2

280185R1

SPACER

SPACER, alternator generator brace

1шт.

3

371108R1

SPACER,3/8" Pipe x .844"

SPACER, generator brace, LP gas only

1шт.

4

384994R2

BRACE

BRACE, alternator generator, gasoline

1шт.

4

371107R2

SUPPORT

BRACE, alternator generator, LP gas

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

221425R1

FAN

FAN, alternator generator

1шт.

6

384986R1

PULLEY

PULLEY, alternator generator, carbureted engine tractors

1шт.

6

384987R1

PULLEY

PULLEY, alternator generator, diesel engine tractors

1шт.

7

170481R1

BELT

BELT, generator & water pump

1шт.

8

384991R1

SUPPORT

BRACKET, alternator generator mounting

1шт.

102635

NUT,3/8"-16, G5

NUT, 3/8"-16, G5

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

433114

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

384992R1

SPACER

SPACER, alternator generator mounting bracket, short

1шт.

10

384993R1

SPACER

SPACER, alternator generator mounting bracket, long

1шт.

11

385008R1

SUPPORT

BRACE, alternator generator

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

(Not used)

1шт.

13

385007R1

SUPPORT

BRACKET, alternator generator mounting

1шт.

102635

NUT,3/8"-16, G5

NUT, 3/8"-16, G5

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

385120R2

V-BELT,0.597" W 66.50" L

Generator & water pump

1шт.

15

384989R91

SPARE PART BRACKET ASSY, voltage regulator mounting

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

1шт.

179805

BOLT,Hex, 1/4" - 20 x 2", Gr 5

SCREW, 1/4-20 x 1-7/8 hex-hd cap

1шт.

385544R1

SPACER,1/4" Pipe x 3/8"

SPACER, mounting bracket, short

1шт.

385545R1

SPARE PART SPACER, mounting bracket, long

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

1119516

REGULATOR

REGULATOR ASSY, voltage, 384988R91, composed of (1) cover 1958151 (2) screw, (1) cover 1962733, (1) regulator 1119515, (1) shock, (1) bracket, (1) package 1962629

1шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

260602C91

RESISTOR

RESISTANCE UNIT

1шт.

2751808R1

PRODUCT GRAPHIC

PRODUCT GRAPHICS, warning decal, for red vehicle

1шт.

2751893R1

PRODUCT GRAPHIC

PRODUCT GRAPHICS, warning decal, for yellow vehicle

1шт.

Выбрано товаров: 48
