(E-18) - FUEL SYSTEM, FUEL FILTER, LP GAS ENGINE TRACTORS

Запчасти Case IH 806 (E-18) - FUEL SYSTEM, FUEL FILTER, LP GAS ENGINE TRACTORS (02) - FUEL SYSTEM

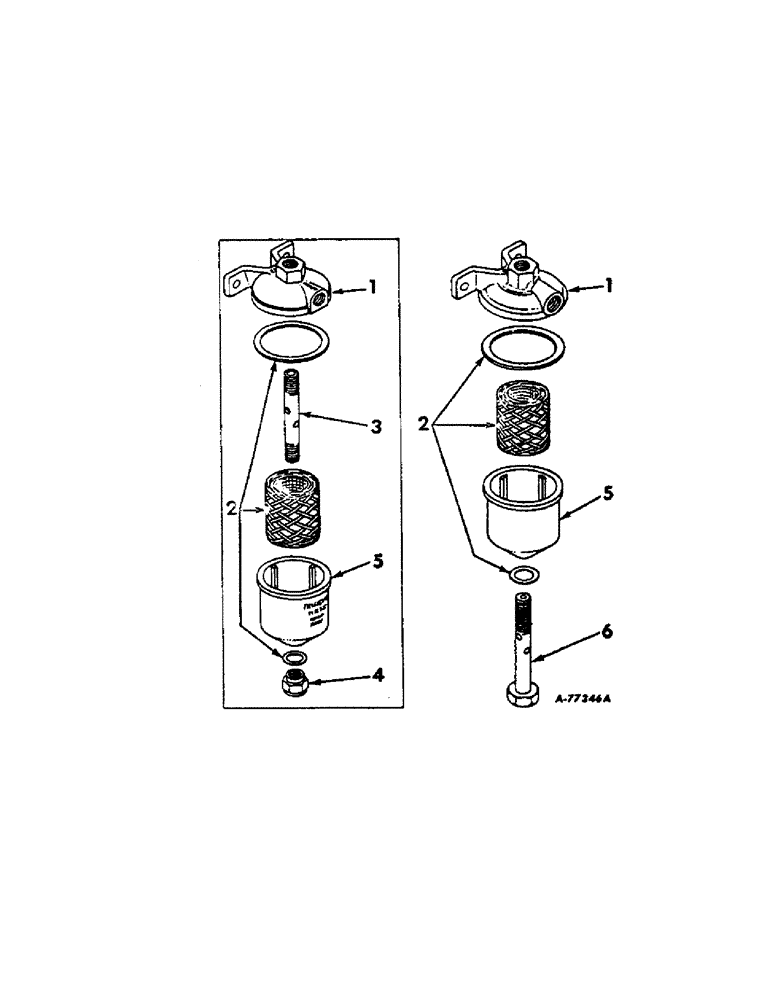

Схема запчастей Case IH 806 - (E-18) - FUEL SYSTEM, FUEL FILTER, LP GAS ENGINE TRACTORS (02) - FUEL SYSTEM
3
2
5
1
2
4
5
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

346818R91

FILTER ASSY, fuel

1шт.

1

NSS

NOT SOLD SEPARAT

TOP, filter, not serviced separately order filter assy

1шт.

2

64400DC

ELEMENT

ASSY, fuel filter

1шт.

3

64402D

STUD, filter

1шт.

4

64403D

NUT, filter stud

1шт.

5

NSS

NOT SOLD SEPARAT

BOTTOM, filter, not serviced separately order filter assy

1шт.

6

NSS

NOT SOLD SEPARAT

BOLT, filter bottom, used only with filter, 346818R91

1шт.

Выбрано товаров: 7
